STM8AF6223PCAX Information
STM8AF6223PCAX by STMicroelectronics is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for STM8AF6223PCAX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26Y5974
|
Newark | Stm8Af-Auto |Stmicroelectronics STM8AF6223PCAX RoHS: Not Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
$1.1000 / $1.4800 | Buy Now |
|
DISTI #
54AH7074
|
Newark | Mcu, 8Bit, 16Mhz, Tssop-20 Rohs Compliant: Yes |Stmicroelectronics STM8AF6223PCAX RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$1.7500 | Buy Now |
|
DISTI #
STM8AF6223PCAX-ND
|
DigiKey | IC MCU 8BIT 8KB FLASH 20TSSOP Min Qty: 2500 Lead time: 16 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$1.1531 | Buy Now |
|
DISTI #
STM8AF6223PCAX
|
Avnet Americas | MCU 8-Bit STM8A STM8 CISC 8KB Flash 3.3V/5V 20-Pin TSSOP T/R - Tape and Reel (Alt: STM8AF6223PCAX) COO: France RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$1.0185 / $1.0558 | Buy Now |
|
|
Future Electronics | STM8A Series 8 KB Flash 1 kB RAM 16 MHz 8-Bit Microcontroller - TSSOP-20 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 20 Weeks Container: Reel | 0Reel |
|
$1.0400 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 2500 |
|
RFQ | |
|
DISTI #
STM8AF6223PCAX
|
Avnet Silica | MCU 8Bit STM8A STM8 CISC 8KB Flash 33V5V 20Pin TSSOP TR (Alt: STM8AF6223PCAX) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
RFQ | |
|
DISTI #
STM8AF6223PCAX
|
EBV Elektronik | MCU 8Bit STM8A STM8 CISC 8KB Flash 33V5V 20Pin TSSOP TR (Alt: STM8AF6223PCAX) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 17 Weeks, 0 Days | EBV - 0 |
|
RFQ | |
|
|
MacroQuest Electronics | ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018, Lead time:3-5days | 2514 Stock,2238 Available |
|
$3.1000 / $3.9400 | Buy Now |
|
|
Vyrian | uPs/uCs/Peripheral ICs | 5609 |
|
RFQ |
US Tariff Estimator: STM8AF6223PCAX by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for STM8AF6223PCAX

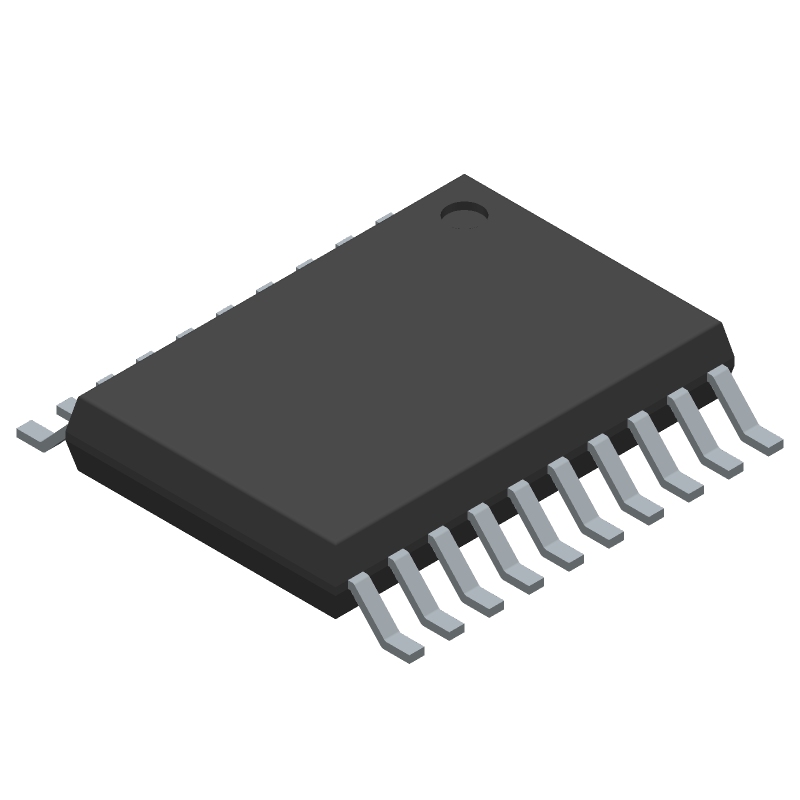

STM8AF6223PCAX CAD Models
-

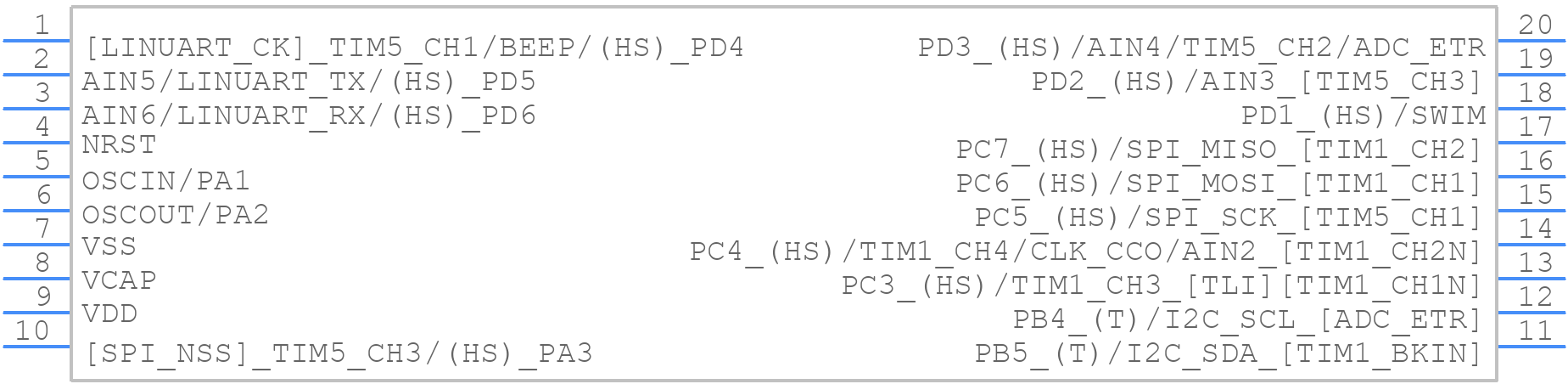

Part Symbol
-
