STPST8H100SFY by: STMicroelectronics

Rectifier Diode, Schottky, 1 Phase, 1 Element, 8A, 100V V(RRM), Silicon, TO-277A

Part Details for STPST8H100SFY by STMicroelectronics

Results Overview of STPST8H100SFY by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

STPST8H100SFY Information

STPST8H100SFY by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for STPST8H100SFY

Part # Distributor Description Stock Price Buy
DISTI # 89AK3470
Newark Schottky Rectifier, 100V, 8A, Psmc Rohs Compliant: Yes |Stmicroelectronics STPST8H100SFY RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 5980
  • 1 $1.1100
  • 10 $0.7730
  • 25 $0.6880
  • 50 $0.6030
  • 100 $0.5180
  • 250 $0.4650
  • 500 $0.4110
  • 1,000 $0.3450
$0.3450 / $1.1100 Buy Now
DISTI # 89AK3471
Newark Schottky Rectifier, 100V, 8A, Psmc Rohs Compliant: Yes |Stmicroelectronics STPST8H100SFY RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Tape & Reel 0
  • 1 $0.4550
  • 2 $0.4360
  • 4 $0.3960
  • 6 $0.3570
  • 10 $0.3440
$0.3440 / $0.4550 Buy Now
DISTI # 497-STPST8H100SFYCT-ND
DigiKey DIODE SCHOTTKY 100V 8A TO277A Min Qty: 1 Lead time: 19 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 6713
In Stock
  • 1 $1.1200
  • 10 $0.7730
  • 100 $0.5176
  • 500 $0.4027
  • 1,000 $0.3657
  • 2,000 $0.3351
  • 6,000 $0.3089
  • 12,000 $0.2822
  • 18,000 $0.2755
$0.2755 / $1.1200 Buy Now
DISTI # STPST8H100SFY
Avnet Americas Schottky Rectifier, 100 V, 8 A, Single Dual Anode, PSMC (TO-277A), 3 Pins, 695 mV - Tape and Reel (Alt: STPST8H100SFY) COO: Malaysia RoHS: Not Compliant Min Qty: 6000 Package Multiple: 6000 Lead time: 19 Weeks, 0 Days Container: Tape & Reel 0
  • 6,000 $0.3129
  • 12,000 $0.2959
  • 24,000 $0.2882
  • 36,000 $0.2808
  • 48,000 $0.2737
$0.2737 / $0.3129 Buy Now
DISTI # STPST8H100SFY
Avnet Americas Schottky Rectifier, 100 V, 8 A, Single Dual Anode, PSMC (TO-277A), 3 Pins, 695 mV - Tape and Reel (Alt: STPST8H100SFY) COO: Malaysia RoHS: Not Compliant Min Qty: 6000 Package Multiple: 6000 Lead time: 19 Weeks, 0 Days Container: Tape & Reel 0
  • 6,000 $0.3129
  • 12,000 $0.2959
  • 24,000 $0.2882
  • 36,000 $0.2808
  • 48,000 $0.2737
$0.2737 / $0.3129 Buy Now
DISTI # 511-STPST8H100SFY
Mouser Electronics Schottky Diodes & Rectifiers Automotive 100 V, 8 A Power Schottky Trench Rectifier RoHS: Compliant 5921
  • 1 $1.1100
  • 10 $0.7730
  • 100 $0.5180
  • 500 $0.4110
  • 1,000 $0.3450
  • 2,500 $0.3380
  • 6,000 $0.3120
  • 12,000 $0.2970
  • 24,000 $0.2730
$0.2730 / $1.1100 Buy Now
STMicroelectronics Automotive 100 V, 8 A Power Schottky Trench Rectifier COO: Malaysia RoHS: Compliant Min Qty: 1 5921
  • 1 $1.0900
  • 10 $0.7600
  • 100 $0.5100
  • 500 $0.4000
$0.4000 / $1.0900 Buy Now
DISTI # STPST8H100SFY
TME Diode: Schottky rectifying, TO277A, SMD, 100V, 8A, reel,tape Min Qty: 1 0
  • 1 $1.0800
  • 10 $0.7910
  • 100 $0.5120
  • 250 $0.4380
  • 500 $0.3970
  • 1,000 $0.3960
$0.3960 / $1.0800 RFQ
DISTI # STPST8H100SFY
Avnet Silica Schottky Rectifier 100 V 8 A Single Dual Anode PSMC TO277A 3 Pins 695 mV (Alt: STPST8H100SFY) RoHS: Compliant Min Qty: 6000 Package Multiple: 6000 Lead time: 17 Weeks, 0 Days Silica - 6000
Buy Now
DISTI # STPST8H100SFY
EBV Elektronik Schottky Rectifier 100 V 8 A Single Dual Anode PSMC TO277A 3 Pins 695 mV (Alt: STPST8H100SFY) RoHS: Compliant Min Qty: 6000 Package Multiple: 6000 Lead time: 20 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: STPST8H100SFY by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STPST8H100SFY
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STPST8H100SFY

STPST8H100SFY CAD Models

  • Part Symbol

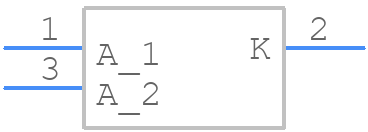

    schematic symbol

  • Footprint

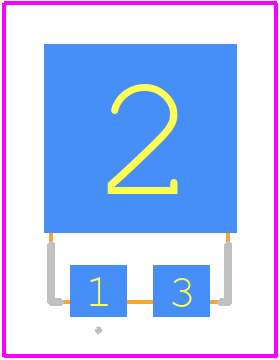

    pcb footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STPST8H100SFY Part Data Attributes

Parametric Data
STPST8H100SFY STMicroelectronics
Buy Now Datasheet
Compare Parts:
STPST8H100SFY STMicroelectronics Rectifier Diode, Schottky, 1 Phase, 1 Element, 8A, 100V V(RRM), Silicon, TO-277A
Part Life Cycle Code Active
Package Description Smc, 2 Pin
Reach Compliance Code Unknown
ECCN Code EAR99
HTS Code 8541.10.00.80
Factory Lead Time 19 Weeks
Additional Feature Free Wheeling Diode
Application Power
Case Connection Cathode
Configuration Single
Diode Element Material Silicon
Diode Type Rectifier Diode
Forward Voltage-Max (VF) 0.695 V
JEDEC-95 Code TO-277A
JESD-30 Code R-PDSO-F3
Non-rep Pk Forward Current-Max 200 A
Number of Elements 1
Number of Phases 1
Number of Terminals 3
Operating Temperature-Max 175 °C
Operating Temperature-Min -40 °C
Output Current-Max 8 A
Package Body Material Plastic/Epoxy
Package Shape Rectangular
Package Style Small Outline
Reference Standard Aec-Q101
Rep Pk Reverse Voltage-Max 100 V
Reverse Current-Max 17 µA
Reverse Test Voltage 100 V
Surface Mount Yes
Technology Schottky
Terminal Form Flat
Terminal Position Dual
