Part Details for STTH506B-TR by STMicroelectronics
Results Overview of STTH506B-TR by STMicroelectronics
- Distributor Offerings: (23 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
STTH506B-TR Information
STTH506B-TR by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for STTH506B-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01X0070
|
Newark | Rectifier, 600V, 5A, To-252, Repetitive Peak Reverse Voltage:600V, Average Forward Current:5A, Diode Configuration:Single, Forward Voltage Max:1.85V, Reverse Recovery Time:50Ns, Forward Surge Current:55A, No. Of Pins:2 Pin Rohs Compliant: Yes |Stmicroelectronics STTH506B-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2936 |
|
$0.3020 / $0.7850 | Buy Now |
|
DISTI #
497-5261-1-ND
|
DigiKey | DIODE STANDARD 600V 5A DPAK Min Qty: 1 Lead time: 15 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
7119 In Stock |
|
$0.1690 / $0.7400 | Buy Now |
|
DISTI #
STTH506B-TR
|
Avnet Americas | Fast / Ultrafast Diode, 600 V, 5 A, Single, 1.85 V, 50 ns, 55 A - Tape and Reel (Alt: STTH506B-TR) COO: France RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 15 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.3701 / $0.3948 | Buy Now |
|
DISTI #
511-STTH506B-TR
|
Mouser Electronics | Rectifiers Turbo 2 ultrafast HV rectifier RoHS: Compliant | 3128 |
|
$0.1690 / $0.7300 | Buy Now |
|
DISTI #
V36:1790_06567743
|
Arrow Electronics | Diode Switching 600V 5A 3-Pin(2+Tab) DPAK T/R COO: China RoHS: Exempt Min Qty: 2500 Package Multiple: 2500 Lead time: 15 Weeks Date Code: 2413 | Americas - 15000 |
|
Buy Now | |
|
|
STMicroelectronics | 600 V, 5 A Ultrafast Diode COO: France RoHS: Compliant Min Qty: 1 | 5633 |
|
$0.2700 / $0.7200 | Buy Now |
|
|
Future Electronics | STTH506 Series 5A 1.85 V 50 ns Turbo 2 Ultrafast High Voltage Rectifier-TO-252 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 15 Weeks Container: Reel | 0Reel |
|
$0.1580 / $0.1650 | Buy Now |
|
DISTI #
90111183
|
Verical | Diode Switching 600V 5A 3-Pin(2+Tab) DPAK T/R RoHS: Exempt Min Qty: 2500 Package Multiple: 2500 Date Code: 2413 | Americas - 15000 |
|
$0.1220 | Buy Now |
|
|
Bristol Electronics | 1310 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 3 | 460 |
|
$0.5250 / $1.8750 | Buy Now |
US Tariff Estimator: STTH506B-TR by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for STTH506B-TR
STTH506B-TR CAD Models
-

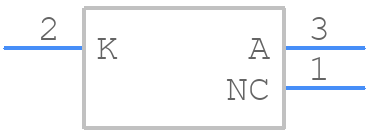

Part Symbol
-

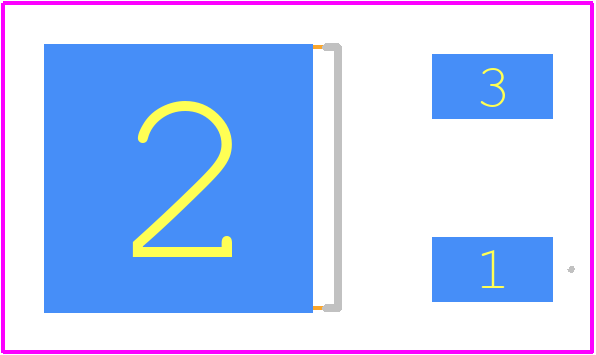

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
STTH506B-TR Part Data Attributes
|
|
STTH506B-TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STTH506B-TR
STMicroelectronics
Rectifier Diode, 1 Phase, 1 Element, 5A, 600V V(RRM), Silicon
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TO-263 | |
| Package Description | D2pak-3/2 | |
| Pin Count | 3 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 15 Weeks | |
| Application | High Voltage Ultra Fast Recovery | |
| Case Connection | Cathode | |
| Configuration | Single | |
| Diode Element Material | Silicon | |
| Diode Type | Rectifier Diode | |
| Forward Voltage-Max (VF) | 1.85 V | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 55 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Output Current-Max | 5 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 600 V | |
| Reverse Current-Max | 5 µA | |
| Reverse Recovery Time-Max | 0.05 µS | |
| Reverse Test Voltage | 600 V | |
| Surface Mount | Yes | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Position | Single | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
STTH506B-TR Frequently Asked Questions (FAQ)
-
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using a large copper area for heat dissipation, and minimizing the distance between the device and the thermal pad or heat sink.
-
To ensure reliable operation at high temperatures, ensure that the device is operated within the recommended temperature range, use a heat sink or thermal pad, and avoid overheating the device by keeping the junction temperature below 150°C.
-
To prevent ESD damage, handle the device in an ESD-protected environment, use ESD-protective packaging, and ground yourself before handling the device. Avoid touching the device's pins or leads, and use an anti-static wrist strap or mat.
-
To calculate the power dissipation of the device, use the formula Pd = (Vin - Vout) x Iout, where Pd is the power dissipation, Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
-
The recommended input capacitor is a 10uF ceramic capacitor, and the recommended output capacitor is a 22uF ceramic capacitor. However, the optimal capacitor values may vary depending on the specific application and operating conditions.
