T1010H-6G Information
T1010H-6G by STMicroelectronics is a TRIAC.
TRIACs are under the broader part category of Trigger Devices.
Trigger devices initiate or control actions in electronic circuits by producing output signals when specific input conditions are met. They are commonly used in timing circuits and pulse generators. Read more about Trigger Devices on our Trigger Devices part category page.
Price & Stock for T1010H-6G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-12710-5-ND
|
DigiKey | TRIAC SENS GATE 600V 10A D2PAK Min Qty: 2000 Lead time: 15 Weeks Container: Tube | Temporarily Out of Stock |
|
$0.4481 | Buy Now |
|
DISTI #
T1010H-6G
|
Avnet Americas | Thyristor TRIAC 600V 105A 3-Pin(2+Tab) D2PAK Tube - Rail/Tube (Alt: T1010H-6G) COO: France RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days Container: Tube | 0 |
|
$0.4346 / $0.4436 | Buy Now |
|
DISTI #
511-T1010H-6G
|
Mouser Electronics | Triacs High temperature 10A Sensitive TRIACs RoHS: Compliant | 0 |
|
$0.4020 / $0.4480 | Order Now |
|
DISTI #
T1010H-6G
|
TME | Triac, 600V, 10A, D2PAK, Igt: 10mA, high temperature Min Qty: 1 | 0 |
|
$0.7500 / $1.0600 | RFQ |
|
DISTI #
T1010H-6G
|
Avnet Silica | Thyristor TRIAC 600V 105A 3Pin2Tab D2PAK Tube (Alt: T1010H-6G) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 16 Weeks, 0 Days | Silica - 6000 |
|
Buy Now |
US Tariff Estimator: T1010H-6G by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for T1010H-6G
T1010H-6G CAD Models
-
Part Symbol
-

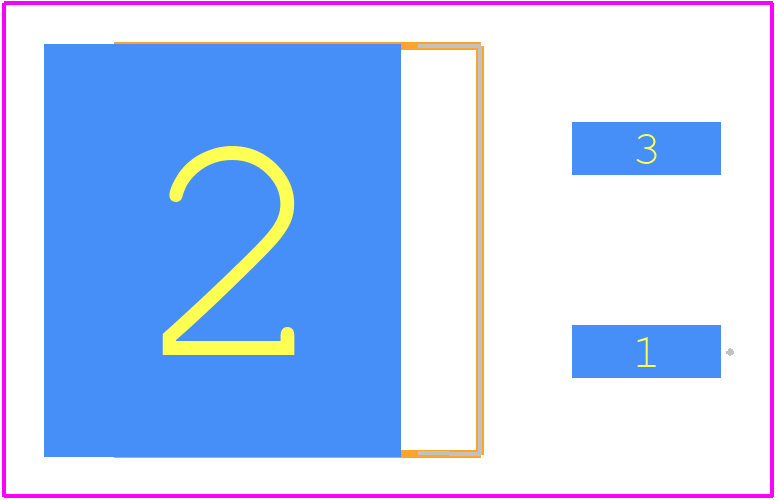

Footprint
-

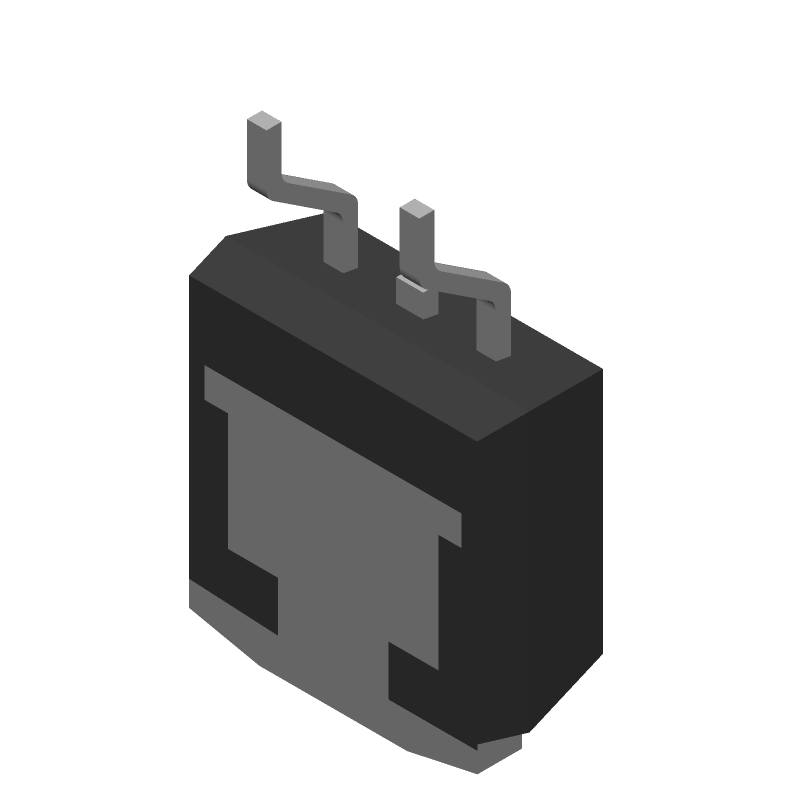

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
T1010H-6G Part Data Attributes
|
|
T1010H-6G
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
T1010H-6G
STMicroelectronics
TRIAC, 600V V(DRM), 10A I(T)RMS
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | D2PAK | |
| Package Description | Rohs Compliant, D2pak-3 | |
| Pin Count | 3 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.30.00.80 | |
| Factory Lead Time | 15 Weeks | |
| Additional Feature | Sensitive Gate | |
| Configuration | Single | |
| Critical Rate of Rise of Commutation Voltage-Min | 3.8 V/Us | |
| Critical Rate of Rise of Off-State Voltage-Min | 75 V/Us | |
| DC Gate Trigger Current-Max | 10 Ma | |
| DC Gate Trigger Voltage-Max | 1 V | |
| Holding Current-Max | 25 Ma | |
| JESD-30 Code | R-PDSO-G3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | Not Specified | |
| Qualification Status | Not Qualified | |
| RMS On-state Current-Max | 10 A | |
| Repetitive Peak Off-state Voltage | 600 V | |
| Surface Mount | Yes | |
| Terminal Form | Gull Wing | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | Not Specified | |
| Trigger Device Type | Triac |
