Part Details for T835H-8I by STMicroelectronics
Results Overview of T835H-8I by STMicroelectronics
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
T835H-8I Information
T835H-8I by STMicroelectronics is a TRIAC.
TRIACs are under the broader part category of Trigger Devices.
Trigger devices initiate or control actions in electronic circuits by producing output signals when specific input conditions are met. They are commonly used in timing circuits and pulse generators. Read more about Trigger Devices on our Trigger Devices part category page.
Price & Stock for T835H-8I
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
14AJ2755
|
Newark | Triac, 800V, 8A, To-220Ab Rohs Compliant: Yes |Stmicroelectronics T835H-8I RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$0.6650 / $1.9900 | Buy Now |
|
DISTI #
497-T835H-8I-ND
|
DigiKey | TRIAC ALTERNISTOR 800V 8A TO220 Min Qty: 1 Lead time: 15 Weeks Container: Tube |
1757 In Stock |
|
$0.4444 / $1.7700 | Buy Now |
|
DISTI #
T835H-8I
|
Avnet Americas | TRIAC 12A 800V 3-Pin TO-220-AB Tube - Rail/Tube (Alt: T835H-8I) COO: France RoHS: Not Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days Container: Tube | 0 |
|
$0.4444 / $0.5079 | Buy Now |
|
DISTI #
511-T835H-8I
|
Mouser Electronics | Triacs 8 A - 800 V - 150 °, C 8H-Triac in TO-220AB Ins. RoHS: Compliant | 749 |
|
$0.4440 / $1.8500 | Buy Now |
|
|
STMicroelectronics | 8 A - 800 V - 150 °, C 8H-Triac in TO-220AB Ins. COO: France RoHS: Compliant Min Qty: 1 | 959 |
|
$0.6300 / $1.8100 | Buy Now |
|
DISTI #
T835H-8I
|
TME | Triac, 800V, 8A, TO220ABIns, Igt: 35mA, Ifsm: 84A, high temperature Min Qty: 1 | 0 |
|
$0.6620 / $1.7000 | RFQ |
|
DISTI #
T835H-8I
|
IBS Electronics | T835H-8I by ST MICROELECTRONICS is a 35A, 800V TRIAC with high commutation performance, suitable for AC switching and phase control applications, featuring a TO-220AB package for efficient thermal management. Min Qty: 1 Package Multiple: 1 | 0 |
|
$0.6160 / $0.6860 | Buy Now |
|
DISTI #
T835H-8I
|
Avnet Silica | TRIAC 12A 800V 3Pin TO220AB Tube (Alt: T835H-8I) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 16 Weeks, 0 Days | Silica - 23900 |
|
Buy Now | |
|
DISTI #
T835H-8I
|
EBV Elektronik | TRIAC 12A 800V 3Pin TO220AB Tube (Alt: T835H-8I) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 16 Weeks, 0 Days | EBV - 550 |
|
Buy Now |
US Tariff Estimator: T835H-8I by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for T835H-8I
T835H-8I CAD Models
-
Part Symbol
-

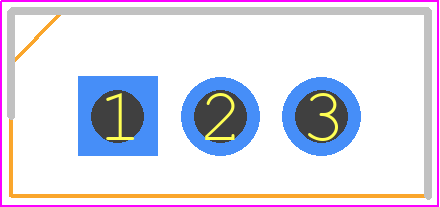

Footprint
-

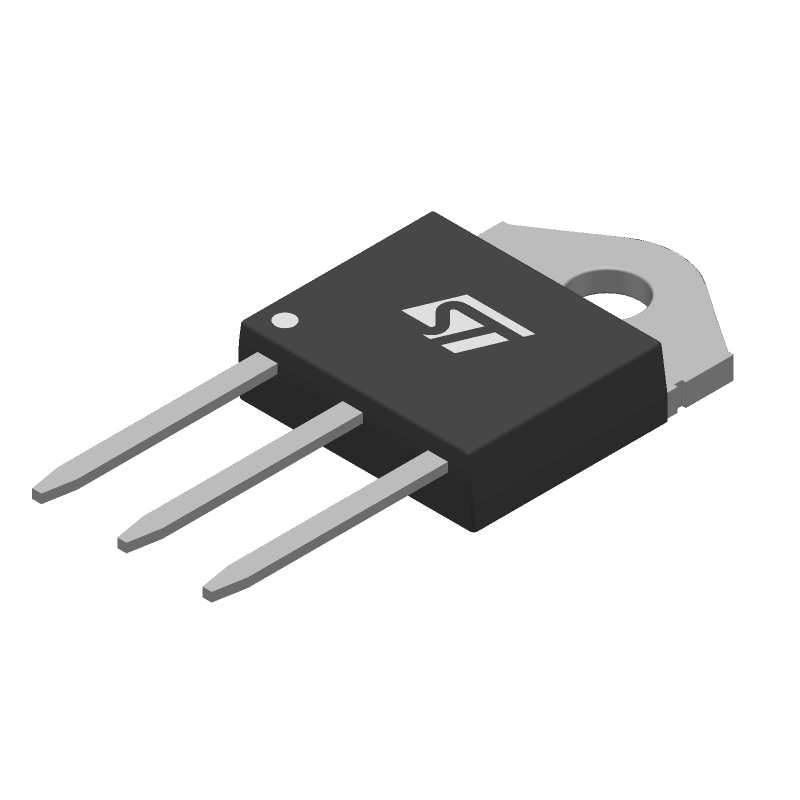

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
T835H-8I Part Data Attributes
|
|
T835H-8I
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
T835H-8I
STMicroelectronics
Snubberless TRIAC, 800V V(DRM), 8A I(T)RMS, TO-220AB
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.30.00.80 | |
| Factory Lead Time | 15 Weeks | |
| Case Connection | Isolated | |
| Configuration | Single | |
| Critical Rate of Rise of Off-State Voltage-Min | 2000 V/Us | |
| DC Gate Trigger Current-Max | 35 Ma | |
| DC Gate Trigger Voltage-Max | 1.3 V | |
| Holding Current-Max | 35 Ma | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| On-State Voltage-Max | 1.5 V | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Flange Mount | |
| RMS On-state Current-Max | 8 A | |
| Reference Standard | Ul Recognized | |
| Repetitive Peak Off-state Voltage | 800 V | |
| Surface Mount | No | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Through-Hole | |
| Terminal Position | Single | |
| Trigger Device Type | Snubberless Triac |
T835H-8I Frequently Asked Questions (FAQ)
-
STMicroelectronics provides a recommended PCB layout in their application note AN5046, which includes guidelines for thermal pad connection, copper pour, and via placement to ensure optimal thermal performance.
-
To handle the high current requirements, it's essential to use a robust power supply, ensure proper PCB trace width and thickness, and consider using a heat sink or thermal interface material to dissipate heat. Additionally, follow the recommended layout and routing guidelines to minimize voltage drops and reduce the risk of overheating.
-
The high voltage rating of the T835H-8I requires careful consideration of the surrounding components' voltage tolerance. Ensure that adjacent components are rated for the same or higher voltage to prevent damage or electrical stress. Additionally, maintain proper creepage and clearance distances to prevent electrical arcing or tracking.
-
To ensure reliable operation in high-temperature environments, follow the recommended operating temperature range, use a heat sink or thermal interface material, and consider using a thermistor or temperature sensor to monitor the device's temperature. Additionally, ensure proper airflow and avoid exposing the device to extreme temperature fluctuations.
-
The T835H-8I is sensitive to electrostatic discharge (ESD). Handle the device with ESD-protective equipment, such as wrist straps, mats, and bags. Follow proper handling and storage procedures, and ensure that the device is properly grounded during assembly and testing.
