Consumer Circuits / Audio/Video Amplifiers / TA8201AK
Datasheets
TA8201AK by: Toshiba America Electronic Components

IC 17 W, 1 CHANNEL, AUDIO AMPLIFIER, PSFM7, Audio/Video Amplifier

Part Details for TA8201AK by Toshiba America Electronic Components

Results Overview of TA8201AK by Toshiba America Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Price & Stock for TA8201AK

Part # Distributor Description Stock Price Buy
Chip Stock AudioAmplifier,17W,1Channel(s),1Func,Bipolar,PSFM7 3343
RFQ

Part Details for TA8201AK

TA8201AK CAD Models

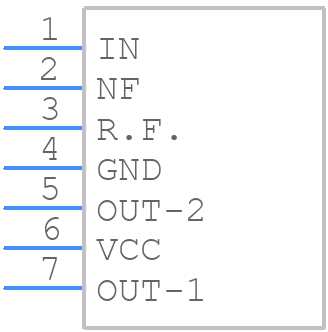

  • Part Symbol

    schematic symbol

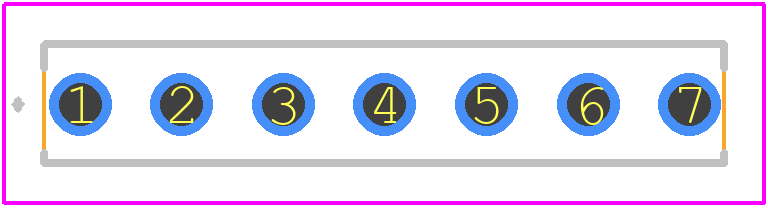

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TA8201AK Part Data Attributes

Parametric Data
TA8201AK Toshiba America Electronic Components
Buy Now Datasheet
Compare Parts:
TA8201AK Toshiba America Electronic Components IC 17 W, 1 CHANNEL, AUDIO AMPLIFIER, PSFM7, Audio/Video Amplifier
Rohs Code No
Part Life Cycle Code Obsolete
Part Package Code SFM
Package Description Hsip-7
Pin Count 7
Reach Compliance Code Unknown
Bandwidth-Nom 20 Khz
Consumer IC Type Audio Amplifier
Gain 54 Db
Harmonic Distortion 10%
JESD-30 Code R-PSFM-T7
JESD-609 Code e0
Number of Channels 1
Number of Functions 1
Number of Terminals 7
Operating Temperature-Max 85 °C
Operating Temperature-Min -30 °C
Output Power-Nom 17 W
Package Body Material Plastic/Epoxy
Package Shape Rectangular
Package Style Flange Mount
Peak Reflow Temperature (Cel) 240
Qualification Status Not Qualified
Supply Current-Max 95 Ma
Supply Voltage-Max (Vsup) 18 V
Supply Voltage-Min (Vsup) 9 V
Surface Mount No
Technology Bipolar
Temperature Grade Other
Terminal Finish Tin Lead
Terminal Form Through-Hole
Terminal Position Single
Time@Peak Reflow Temperature-Max (s) Not Specified
