Part Details for TC4420VMF by Microchip Technology Inc
Results Overview of TC4420VMF by Microchip Technology Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
Automotive
Motor control systems
TC4420VMF Information
TC4420VMF by Microchip Technology Inc is an MOSFET Driver.
MOSFET Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for TC4420VMF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
89H1629
|
Newark | Ic, single Mosfet Driver, cmos, llcc,8Pin, plastic Rohs Compliant: Yes |Microchip TC4420VMF RoHS: Compliant Min Qty: 360 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$1.2200 | Buy Now |
|
DISTI #
TC4420VMF-ND
|
DigiKey | IC GATE DRVR LOW-SIDE 8DFN Min Qty: 360 Lead time: 4 Weeks Container: Tube | Temporarily Out of Stock |
|
$1.1500 | Buy Now |
|
DISTI #
TC4420VMF
|
Avnet Americas | MOSFET DRVR 6A 1-OUT Lo Side Non-Inv 8-Pin DFN-S EP Tube - Rail/Tube (Alt: TC4420VMF) COO: Thailand RoHS: Compliant Min Qty: 300 Package Multiple: 60 Lead time: 6 Weeks, 0 Days Container: Tube | 0 |
|
$1.3083 / $1.5092 | Buy Now |
|
DISTI #
579-TC4420VMF
|
Mouser Electronics | Gate Drivers 6A Sngl RoHS: Compliant | 22 |
|
$1.1500 / $1.5200 | Buy Now |
|
DISTI #
TC4420VMF
|
Microchip Technology Inc | 1.5A Dual MOSFET Drvr, DFN-S, Projected EOL: 2035-12-01 COO: Philippines, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube | In Stock: 5370 and Alternates Available |
|
$1.1000 / $1.5200 | Buy Now |
|
|
Onlinecomponents.com | Driver 6A 1-OUT Low Side Non-Inv 8-Pin DFN-S EP Tube COO: Philippines RoHS: Compliant | 0 |
|
$0.9940 / $1.2390 | Buy Now |
|
|
NAC | 8 DFN-S 6x5x0.9mm TUBE. Package: 8 DFN-S 6x5x0.9mm TUBE - DRIVERS Product Line RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Tube | 4320 |
|
$1.2200 / $1.5100 | Buy Now |
|
DISTI #
TC4420VMF
|
Avnet Silica | MOSFET DRVR 6A 1OUT Lo Side NonInv 8Pin DFNS EP Tube (Alt: TC4420VMF) RoHS: Compliant Min Qty: 300 Package Multiple: 60 Lead time: 6 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
LCSC | 1 DFN-8-EP(5x6) Gate Drivers RoHS | 25 |
|
$2.1519 / $2.4836 | Buy Now |
|
|
Master Electronics | Driver 6A 1-OUT Low Side Non-Inv 8-Pin DFN-S EP Tube COO: Philippines RoHS: Compliant | 0 |
|
$0.9940 / $1.2390 | Buy Now |
US Tariff Estimator: TC4420VMF by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TC4420VMF
TC4420VMF CAD Models
-

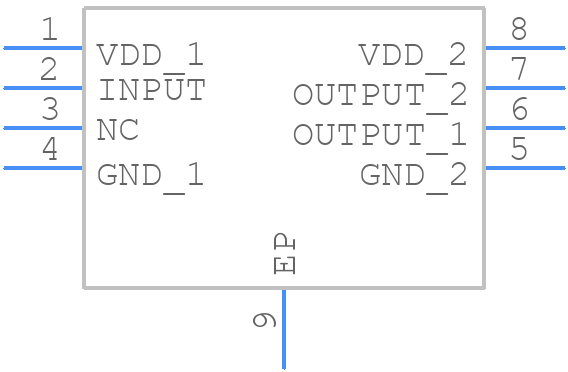

Part Symbol
-
Footprint
-

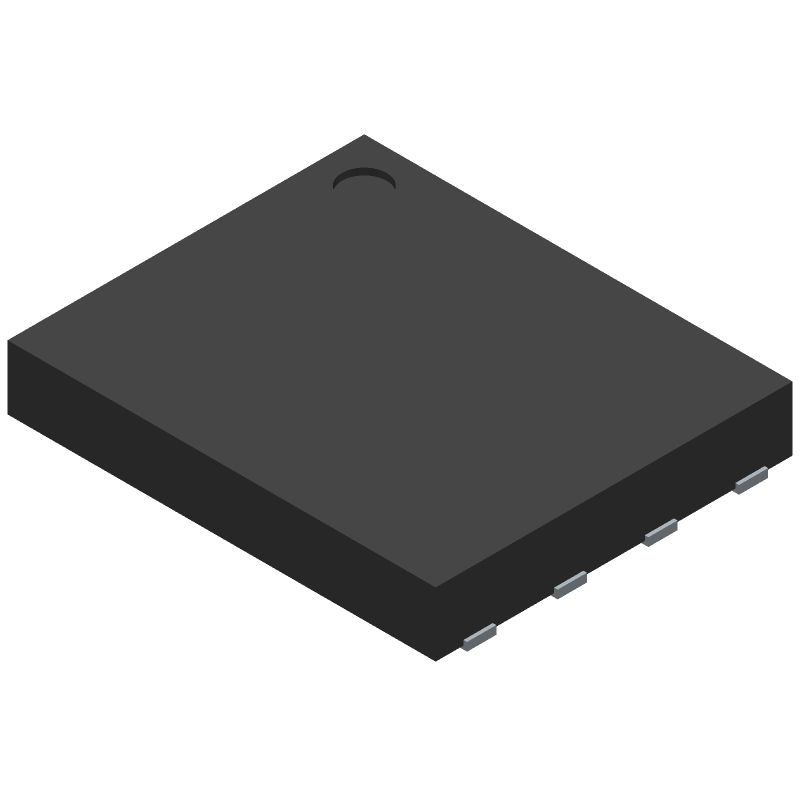

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TC4420VMF Part Data Attributes
|
|
TC4420VMF
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
TC4420VMF
Microchip Technology Inc
1.5A Dual MOSFET Drvr
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | QFN | |
| Package Description | Hvson, Solcc8,.25 | |
| Pin Count | 8 | |
| Manufacturer Package Code | DFN-S-8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 6 Weeks | |
| High Side Driver | Yes | |
| Input Characteristics | Schmitt Trigger | |
| Interface IC Type | Buffer Or Inverter Based Mosfet Driver | |
| JESD-30 Code | R-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 6 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | Totem-Pole | |
| Output Peak Current Limit-Nom | 6 A | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | Ts 16949 | |
| Seated Height-Max | 0.95 Mm | |
| Supply Current-Max | 3 Ma | |
| Supply Voltage-Max | 18 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage1-Max | 18 V | |
| Supply Voltage1-Min | 4.5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Turn-off Time | 0.16 µS | |
| Turn-on Time | 0.16 µS | |
| Width | 5 Mm |
Alternate Parts for TC4420VMF
This table gives cross-reference parts and alternative options found for TC4420VMF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TC4420VMF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TC4420VMF713 | Microchip Technology Inc | $50.8542 | 1.5A Dual MOSFET Drvr | TC4420VMF vs TC4420VMF713 |
TC4420VMF Frequently Asked Questions (FAQ)
-
The TC4420VMF has a maximum voltage rating of 18V, but it's recommended to operate it within the 4.5V to 15V range for optimal performance.
-
To ensure proper thermal management, make sure to provide a heat sink or a thermal pad on the exposed pad of the QFN package, and follow the recommended PCB layout guidelines for thermal dissipation.
-
The minimum input pulse width required for the TC4420VMF to operate correctly is typically around 10ns to 20ns, but this can vary depending on the specific application and operating conditions.
-
Yes, the TC4420VMF can be used as a high-side driver, but it requires an external bootstrap diode and capacitor to generate the necessary gate drive voltage.
-
The TC4420VMF has a built-in undervoltage lockout (UVLO) feature that disables the output when the input voltage falls below 3.5V. To handle this, ensure that the input voltage is above the UVLO threshold, or add an external voltage supervisor circuit to monitor the input voltage and reset the device if necessary.
