Part Details for TCAN1051HVDRQ1 by Texas Instruments
Results Overview of TCAN1051HVDRQ1 by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Financial Technology (Fintech)
Automotive
TCAN1051HVDRQ1 Information
TCAN1051HVDRQ1 by Texas Instruments is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for TCAN1051HVDRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3009405
|
Farnell | COO: MC RoHS: Compliant Min Qty: 1 Container: Cut Tape | 195 |
|
$0.9242 / $1.8773 | Buy Now |
|
DISTI #
3009405RL
|
Farnell | COO: MC RoHS: Compliant Min Qty: 100 Container: Reel | 195 |
|
$0.9242 / $1.1198 | Buy Now |
|
|
Bristol Electronics | 153 |
|
RFQ | ||
|
DISTI #
TCAN1051HVDRQ1
|
TME | IC: interface, transceiver, 2Mbps, 4.5÷5.5VDC, SOIC8, -55÷125°C Min Qty: 1 | 0 |
|
$0.8700 / $1.6400 | RFQ |
|
|
Chip Stock | AutomotiveFaultProtectedCANTransceiverWithFlexibleData-Rate8-SOIC-55to125 | 11500 |
|
RFQ | |
|
|
LCSC | CAN Transceiver 70mA 4.5V5.5V SOIC-8 Drivers Receivers Transceivers RoHS | 78 |
|
$0.5340 / $0.9875 | Buy Now |
|
|
Win Source Electronics | IC TRANSCEIVER HALF 1/1 8SOIC / 1/1 Transceiver Half CANbus 8-SOIC | 10000 |
|
$0.7809 / $1.0085 | Buy Now |
US Tariff Estimator: TCAN1051HVDRQ1 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TCAN1051HVDRQ1
TCAN1051HVDRQ1 CAD Models
-

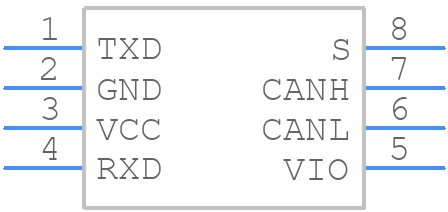

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TCAN1051HVDRQ1 Part Data Attributes
|
|
TCAN1051HVDRQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TCAN1051HVDRQ1
Texas Instruments
Automotive Fault Protected CAN Transceiver With Flexible Data-Rate 8-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Sop, | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Date Of Intro | 2016-03-31 | |
| Data Rate | 2000 Mbps | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.905 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Screening Level | Aec-Q100 | |
| Seated Height-Max | 1.75 Mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Telecom IC Type | Interface Circuit | |
| Temperature Grade | Military | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.895 Mm |
Alternate Parts for TCAN1051HVDRQ1
This table gives cross-reference parts and alternative options found for TCAN1051HVDRQ1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TCAN1051HVDRQ1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TCAN1051HVD | Texas Instruments | $0.8694 | Fault Protected CAN Transceiver With Flexible Data-Rate 8-SOIC -55 to 125 | TCAN1051HVDRQ1 vs TCAN1051HVD |
TCAN1051HVDRQ1 Frequently Asked Questions (FAQ)
-
The maximum cable length supported by the TCAN1051HVDRQ1 is 40 meters, assuming a 120-ohm twisted-pair cable and a data rate of 1 Mbps.
-
The TCAN1051HVDRQ1 has built-in fault-tolerant features, including bus fault detection, error detection, and automatic bus disconnection in case of a fault. It also has a watchdog timer to detect and recover from bus errors.
-
Yes, the TCAN1051HVDRQ1 supports multi-master operation, allowing multiple nodes to transmit data on the bus simultaneously. It also has a non-destructive bit-wise arbitration mechanism to resolve conflicts.
-
The power consumption of the TCAN1051HVDRQ1 is typically 12 mA in normal operation and 1.5 mA in standby mode, making it suitable for battery-powered applications.
-
Yes, the TCAN1051HVDRQ1 is compatible with other CAN transceivers that conform to the ISO 11898-2 standard, ensuring interoperability with other CAN devices.
