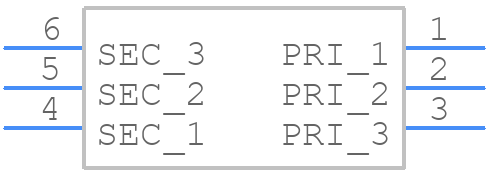

Part Symbol
-
Footprint
-

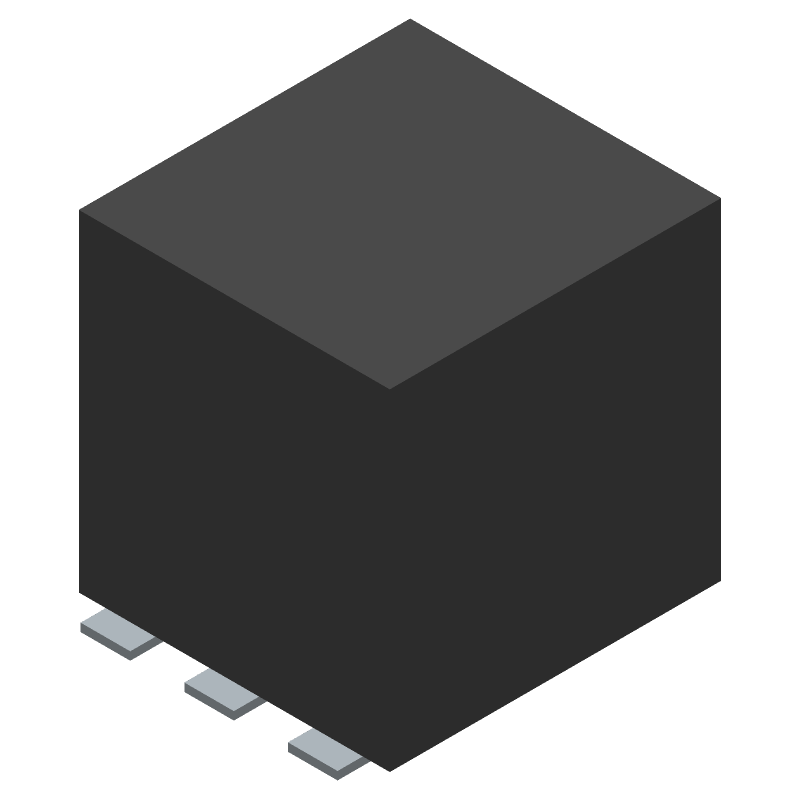

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TCM4-1W+ by Mini-Circuits
Results Overview of TCM4-1W+ by Mini-Circuits
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TCM4-1W+ Information
TCM4-1W+ by Mini-Circuits is an RF Transformer.
RF Transformers are under the broader part category of Transformers.
Transformers are passive components that transfer electrical energy between circuits and adjust voltage levels through electromagnetic induction. They are crucial for applications like power transmission and reducing voltage for low-voltage devices. Read more about Transformers on our Transformers part category page.
Price & Stock for TCM4-1W+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3157-TCM4-1W+CT-ND
|
DigiKey | 1:4 CORE & WIRE TRANSFORMER, 3 - Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3448 In Stock |
|
$1.3600 / $17.1200 | Buy Now |
|
DISTI #
139-TCM4-1W
|
Mouser Electronics | Audio Transformers / Signal Transformers TC XFMR / SURF MOUNT / RoHS RoHS: Compliant | 659 |
|
$1.4900 / $17.1300 | Buy Now |
|
|
Bristol Electronics | 50 |
|
RFQ | ||
|
|
LCSC | 3MHz800MHz Balanced Amplifier SMD-4P4x3.8mm Balun RoHS | 35 |
|
$1.8277 / $3.0172 | Buy Now |
Part Details for TCM4-1W+
TCM4-1W+ CAD Models
TCM4-1W+ Part Data Attributes
|
|
TCM4-1W+
Mini-Circuits
Buy Now
Datasheet
|
Compare Parts:
TCM4-1W+
Mini-Circuits
RF Transformer, 3MHz Min, 800MHz Max
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Chip | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Additional Feature | Height & Length Dim Includes Terminals Also | |
| Cut-off Frequency-Max | 800 Mhz | |
| Cut-off Frequency-Min | 3 Mhz | |
| Height | 4.06 Mm | |
| Insertion Loss | 3 Db | |
| JESD-609 Code | e3 | |
| Length | 4.06 Mm | |
| Mounting Feature | Surface Mount | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -20 °C | |
| Packing Method | Tr, 13 Inch | |
| Surface Mount | Yes | |
| Terminal Finish | Tin Over Nickel | |
| Transformer Type | Rf Transformer | |
| Width | 3.81 Mm |
