Part Details for TDA7266M by STMicroelectronics
Results Overview of TDA7266M by STMicroelectronics
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (7 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
Price & Stock for TDA7266M
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
18AC7830
|
Newark | Amplifier, Class Ab, 7W, Multiwatt-15, Output Power X Channels @ Load:7W X 1 @ 8Ohm, Audio Amplifier Type:Ab, No. Of Channels:1Channels, Supply Voltage Range:3V To 18V, Ic Case/Package:Multiwatt, No. Of Pins:15Pins, Product Range:-Rohs Compliant: Yes |Stmicroelectronics TDA7266M RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
TDA7266M
|
Avnet Americas | Audio Amp Speaker 1-CH Mono 7W Class-AB 15-Pin(15+Tab) MULTIWATT V Tube - Rail/Tube (Alt: TDA7266M) COO: Singapore RoHS: Compliant Min Qty: 500 Package Multiple: 500 Container: Tube | 0 |
|
RFQ | |
|
|
STMicroelectronics | 7 W mono bridge amplifier COO: Morocco RoHS: Compliant Min Qty: 1 | 103 |
|
$2.8100 / $4.6000 | Buy Now |
|
DISTI #
77771735
|
Verical | Audio Amp Speaker 1-CH Mono 7W Class-AB 15-Pin(15+Tab) MULTIWATT V Tube RoHS: Exempt Min Qty: 10 Package Multiple: 1 | Americas - 600 |
|
$2.9270 / $4.2100 | Buy Now |
|
|
Rochester Electronics | TDA7266 - 5W Mono Bridge Amplifier RoHS: Compliant Status: End of Life / Last Time Buy Min Qty: 1 | 2800 |
|
$3.8800 / $4.8500 | Buy Now |
|
DISTI #
TDA7266M
|
IBS Electronics | AUDIO AMP SPEAKER 1-CH MONO 7W CLASS-AB 15-PIN(15+, TAB) MULTIWATT V TUBE Min Qty: 1 Package Multiple: 1 | 0 |
|
$5.8240 / $6.1600 | Buy Now |
|
DISTI #
TDA7266M
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube | 600 |
|
$2.5200 / $4.2100 | Buy Now |
US Tariff Estimator: TDA7266M by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TDA7266M
TDA7266M CAD Models
-

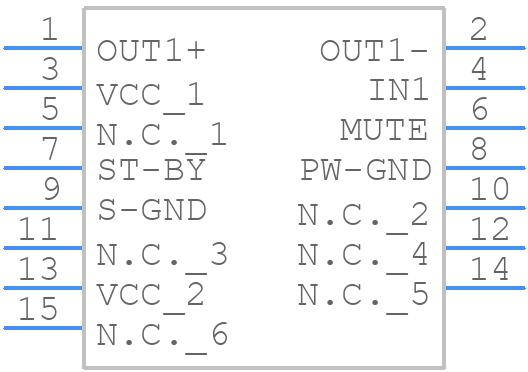

Part Symbol
-

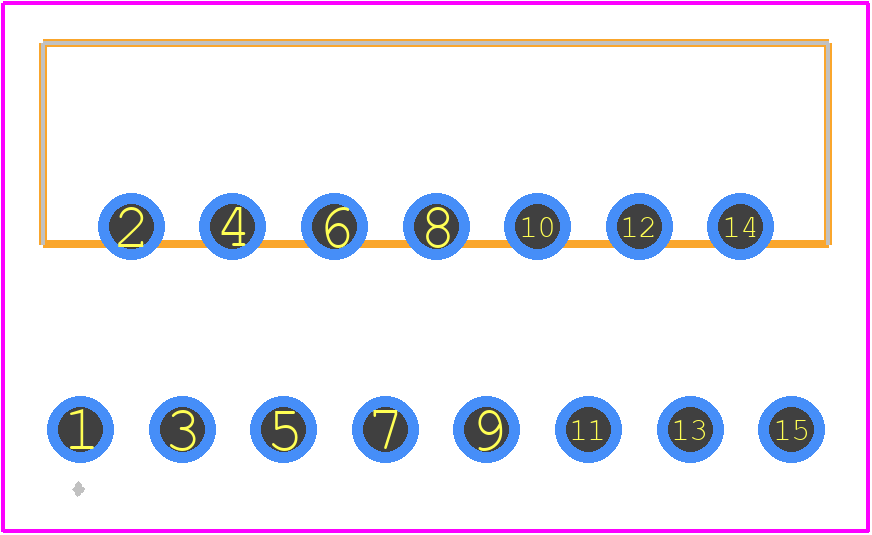

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TDA7266M Part Data Attributes
|
|
TDA7266M
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
TDA7266M
STMicroelectronics
7W, 1 Channel(s), 1 Func, Bipolar, PZFM15
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | ZFM | |
| Package Description | Multiwatt-15 | |
| Pin Count | 15 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Bandwidth-Nom | 20 Khz | |
| Consumer IC Type | Class Ab Audio Amplifier | |
| Gain | 26 Db | |
| Harmonic Distortion | 10% | |
| JESD-30 Code | R-PZIP-T15 | |
| JESD-609 Code | e3 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 15 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Power-Nom | 7 W | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | ZIP | |
| Package Equivalence Code | ZIP15,.2,.17TB | |
| Package Shape | Rectangular | |
| Package Style | Flange Mount | |
| Peak Reflow Temperature (Cel) | Not Specified | |
| Qualification Status | Not Qualified | |
| Supply Current-Max | 65 Ma | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Surface Mount | No | |
| Technology | Bipolar | |
| Temperature Grade | Commercial | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Zig-Zag | |
| Time@Peak Reflow Temperature-Max (s) | Not Specified |
Alternate Parts for TDA7266M
This table gives cross-reference parts and alternative options found for TDA7266M. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TDA7266M, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TDA7294V | STMicroelectronics | $4.8209 | 100W, 1 Channel(s), 1 Func, BCDMOS, PZFM15 | TDA7266M vs TDA7294V |
| TDA7266SA | STMicroelectronics | Check for Price | 7W, 2 CHANNEL, AUDIO AMPLIFIER, PZFM15, CLIPWATT-15 | TDA7266M vs TDA7266SA |
| TDA7266 | STMicroelectronics | Check for Price | 7W, 2 Channel(s), 1 Func, Bipolar, PZFM15 | TDA7266M vs TDA7266 |
| TDA7497 | STMicroelectronics | Check for Price | 10W, 3 CHANNEL, AUDIO AMPLIFIER, PZFM15, MULTIWATT-15 | TDA7266M vs TDA7497 |
| TDA7295V | STMicroelectronics | Check for Price | 80W, 1 CHANNEL, AUDIO AMPLIFIER, PZMA15, MULTIWATT-15 | TDA7266M vs TDA7295V |
| TDA7482 | STMicroelectronics | Check for Price | 25W, 1 CHANNEL, AUDIO AMPLIFIER, PZFM15, MULTIWATT-15 | TDA7266M vs TDA7482 |
| TDA7297SA | STMicroelectronics | Check for Price | 10W, 2 CHANNEL, AUDIO AMPLIFIER, PZFM15, CLIPWATT-15 | TDA7266M vs TDA7297SA |
TDA7266M Frequently Asked Questions (FAQ)
-
A 10uF capacitor in parallel with a 100nF capacitor is recommended for power supply decoupling to ensure stable operation.
-
Ensure good heat dissipation by providing a heat sink or a metal pad on the PCB, and consider using a thermal shutdown circuit to prevent overheating.
-
The maximum power that can be delivered to the speaker depends on the supply voltage and the speaker impedance. For a 12V supply, the maximum power is around 20W into a 4Ω load.
-
The gain of the TDA7266M can be configured by selecting the appropriate resistors for the feedback network. A gain of 20dB is typical, but can be adjusted to suit the application.
-
Yes, the TDA7266M is AEC-Q100 qualified, making it suitable for use in automotive applications. However, ensure that the device is properly protected from voltage transients and other automotive-specific requirements.
