Part Details for THS7376IPW by Texas Instruments
Results Overview of THS7376IPW by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| THS7376IPWR | Texas Instruments | 4-Channel Video Amplifier with 1-SD and 3-HD 8th-Order Filters and 6-dB Gain 14-TSSOP -40 to 85 | |
| THS7376IPW | Texas Instruments | 4-Channel Video Amplifier with 1-SD and 3-HD 8th-Order Filters and 6-dB Gain 14-TSSOP -40 to 85 |
Price & Stock for THS7376IPW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-THS7376IPW-ND
|
DigiKey | IC AMP DVD BLU-RAY 14TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Tube |
30 In Stock |
|
$1.1210 / $1.5300 | Buy Now |
|
DISTI #
595-THS7376IPW
|
Mouser Electronics | Video Amplifiers 4-CH Video Amp A 595 -THS7376IPWR A 595- A 595-THS7376IPWR RoHS: Compliant | 0 |
|
$0.9420 / $1.5300 | Order Now |
|
DISTI #
88046051
|
Verical | Video Amp Quad 5.5V 14-Pin TSSOP Tube RoHS: Compliant Min Qty: 357 Package Multiple: 1 Date Code: 1501 | Americas - 450 |
|
$0.6526 / $1.0526 | Buy Now |
|
|
Rochester Electronics | THS7376 - 4-Channel Video Amplifier with 1-SD and 3-HD 8th-Order Filters and 6-dB Gain 14-TSSOP -40 to 85 RoHS: Compliant Status: Active Min Qty: 1 | 450 |
|
$0.5221 / $0.8421 | Buy Now |
|
|
Ameya Holding Limited | IC SDTV VIDEO AMP 4-CH 14-TSSOP | 740 |
|
RFQ |
US Tariff Estimator: THS7376IPW by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for THS7376IPW
THS7376IPW CAD Models
-
Part Symbol
-
Footprint
-

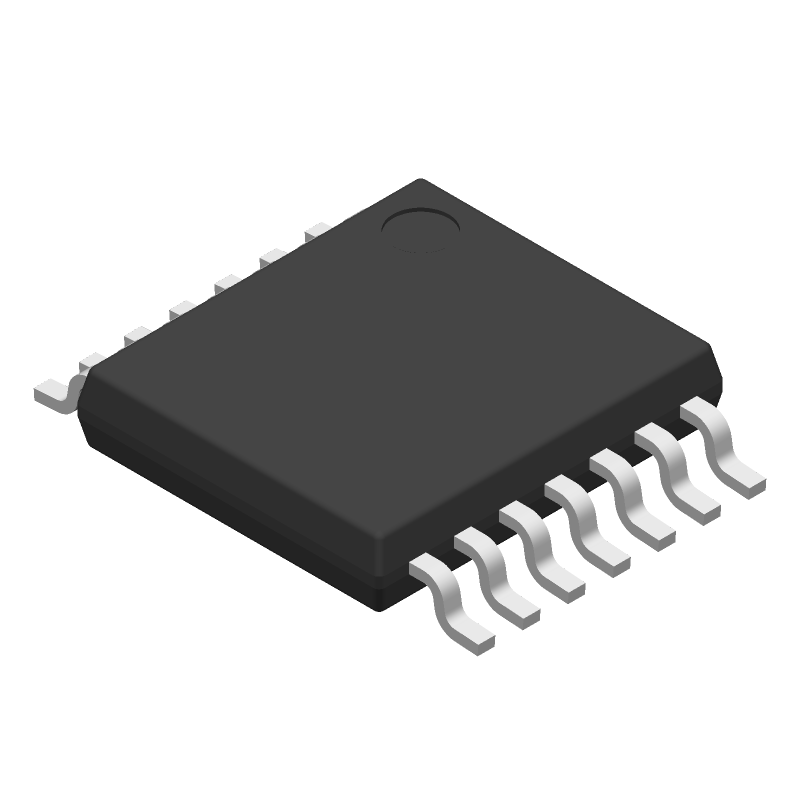

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
THS7376IPW Part Data Attributes
|
|
THS7376IPW
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
THS7376IPW
Texas Instruments
Video Amplifier, 4 Channel(s)
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Consumer IC Type | Video Amplifier | |
| Gain | 6 Db | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 5 Mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Channels | 4 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.2 Mm | |
| Supply Current-Max | 39 Ma | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.85 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 Mm |
Alternate Parts for THS7376IPW
This table gives cross-reference parts and alternative options found for THS7376IPW. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of THS7376IPW, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| THS7376IPWR | Texas Instruments | $0.4441 | Video Amplifier, 4 Channel(s) | THS7376IPW vs THS7376IPWR |
