TL072ACDT Information
TL072ACDT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TL072ACDT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
07AH7185
|
Newark | Op-Amp, 4Mhz, 70Deg C, Soic-8, No. Of Channels:2Channels, Gain Bandwidth Product:4Mhz, Supply Voltage Range:6V To 36V, ± 3V To ± 18V, Ic Case/Package:Soic, No. Of Pins:8Pins, Amplifier Type:General Purpose, Rail To Rail:-, Msl:- Rohs Compliant: Yes |Stmicroelectronics TL072ACDT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 25732 |
|
$0.2760 / $0.7600 | Buy Now |
|
DISTI #
24AC0255
|
Newark | Conditioning & Interfaces Rohs Compliant: Yes |Stmicroelectronics TL072ACDT RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 25000 |
|
$0.3000 / $0.4000 | Buy Now |
|
DISTI #
57P3683
|
Newark | Op-Amp, 4Mhz, 0 To 70Deg C, Soic-8, No. Of Channels:2Channels, Gain Bandwidth Product:4Mhz, Supply Voltage Range:6V To 36V, ± 3V To ± 18V, Ic Case/Package:Soic, No. Of Pins:8Pins, Amplifier Type:General Purpose, Rail To Rail:- Rohs Compliant: Yes |Stmicroelectronics TL072ACDT RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
TL072ACDT
|
Avnet Americas | Operational Amplifier, 2 Channels, 4 MHz, 16 V/?s, 6V to 36V, ? 3V to ? 18V, SOIC, 8 Pins - Tape and Reel (Alt: TL072ACDT) COO: Morocco RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days Container: Reel | 25000 |
|
$0.2362 | Buy Now |
|
DISTI #
07AH7185
|
Avnet Americas | Operational Amplifier, 2 Channels, 4 MHz, 16 V/?s, 6V to 36V, ? 3V to ? 18V, SOIC, 8 Pins - Product that comes on tape, but is not reeled (Alt: 07AH7185) COO: Morocco RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 3547 Partner Stock |
|
$0.3360 / $0.7600 | Buy Now |
|
|
STMicroelectronics | JFET inputs, low input bias current COO: Singapore RoHS: Compliant Min Qty: 1 | 150771 |
|
$0.3700 / $0.7500 | Buy Now |
|
DISTI #
TL072ACDT
|
TME | IC: operational amplifier, 4MHz, Ch: 2, SO8, 6÷36VDC, reel,tape Min Qty: 1 | 1186 |
|
$0.2420 / $0.4600 | Buy Now |
|
DISTI #
TL072ACDT
|
Avnet Silica | Operational Amplifier 2 Channels 4 MHz 16 Vs 6V to 36V 3V to 18V SOIC 8 Pins (Alt: TL072ACDT) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 11 Weeks, 0 Days | Silica - 35000 |
|
Buy Now | |
|
|
Chip Stock | TL072Series18V4MHzLowNoiseJFETDualOperationalAmplifier-SOIC-8 | 76450 |
|
RFQ | |
|
DISTI #
TL072ACDT
|
EBV Elektronik | Operational Amplifier 2 Channels 4 MHz 16 Vs 6V to 36V 3V to 18V SOIC 8 Pins (Alt: TL072ACDT) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: TL072ACDT by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TL072ACDT
TL072ACDT CAD Models
-

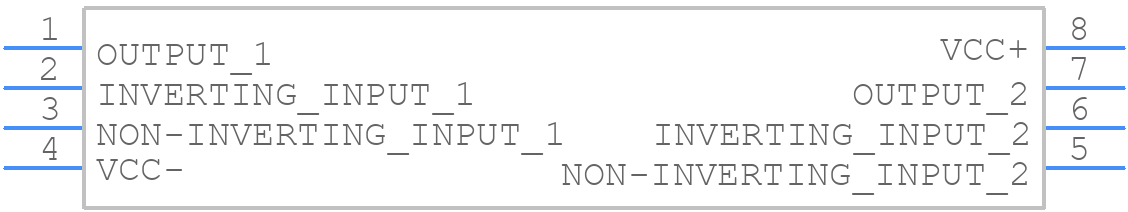

Part Symbol
-
