TL084CDT Information
TL084CDT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TL084CDT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2929897
|
element14 Asia-Pacific | , , 4MHZ, 16V/uS, SOIC-14 COO: China RoHS: Compliant Min Qty: 5 Container: Cut Tape | 3810 |
|
$0.1800 / $0.7700 | Buy Now |
|
DISTI #
2929897RL
|
element14 Asia-Pacific | , , 4MHZ, 16V/uS, SOIC-14 COO: China RoHS: Compliant Min Qty: 100 Container: Tape & Reel | 3810 |
|
$0.1800 / $0.3700 | Buy Now |
|
DISTI #
497-2217-1-ND
|
DigiKey | IC OPAMP JFET 4 CIRCUIT 14SO Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
12099 In Stock |
|
$0.3071 / $0.7200 | Buy Now |
|
DISTI #
TL084CDT
|
Avnet Americas | Operational Amplifier, 4 Channels, 4 MHz, 16 V/us, 6 V to 36 V, ?3 V to ?18 V, 14 Pins, SOIC - Tape and Reel (Alt: TL084CDT) COO: Singapore RoHS: Compliant Min Qty: 7500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.1177 / $0.1252 | Buy Now |
|
DISTI #
TL084CDT
|
Avnet Americas | Operational Amplifier, 4 Channels, 4 MHz, 16 V/us, 6 V to 36 V, ?3 V to ?18 V, 14 Pins, SOIC - Tape and Reel (Alt: TL084CDT) COO: Singapore RoHS: Compliant Min Qty: 7500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.1177 / $0.1252 | Buy Now |
|
DISTI #
511-TL084CDT
|
Mouser Electronics | Operational Amplifiers - Op Amps Quad Gen Purp JFET RoHS: Compliant | 9603 |
|
$0.2380 / $0.7200 | Buy Now |
|
|
STMicroelectronics | JFET inputs, low input bias current COO: Singapore RoHS: Compliant Min Qty: 1 | 9603 |
|
$0.3200 / $0.7100 | Buy Now |
|
|
Future Electronics | TL084 Series 36V 4 MHz General Purpose JFET Quad Operational Amplifier - SOIC-14 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks Container: Reel | 0Reel |
|
$0.1240 / $0.1300 | Buy Now |
|
DISTI #
76827994
|
Verical | Op Amp Quad High Speed Amplifier ±18V 14-Pin SOIC T/R RoHS: Compliant Min Qty: 108 Package Multiple: 1 | Americas - 2448 |
|
$0.2810 / $0.6030 | Buy Now |
|
|
Bristol Electronics | 1949 |
|
RFQ |
US Tariff Estimator: TL084CDT by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TL084CDT
TL084CDT CAD Models
-

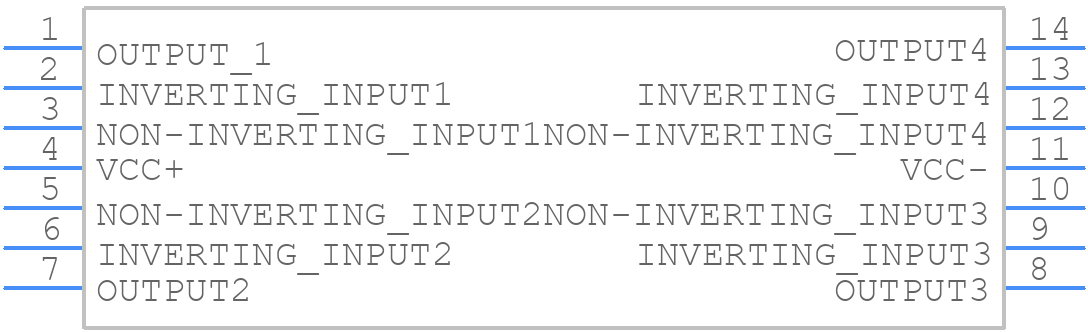

Part Symbol
-
