Part Details for TL431CCT by STMicroelectronics
Results Overview of TL431CCT by STMicroelectronics
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
Automotive
TL431CCT Information
TL431CCT by STMicroelectronics is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TL431CCT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-TL431CCT-ND
|
DigiKey | IC VREF SHNT ADJ 2.21% SOT323-6L Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
5880 In Stock |
|
$0.1325 / $0.3500 | Buy Now |
|
DISTI #
TL431CCT
|
Avnet Americas | V-Ref Adjustable 2.495V to 36V 100mA 6-Pin SOT-323 T/R - Tape and Reel (Alt: TL431CCT) COO: Singapore RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.1210 / $0.1235 | Buy Now |
|
DISTI #
TL431CCT
|
Avnet Americas | V-Ref Adjustable 2.495V to 36V 100mA 6-Pin SOT-323 T/R - Tape and Reel (Alt: TL431CCT) COO: Singapore RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.1210 / $0.1235 | Buy Now |
|
DISTI #
511-TL431CCT
|
Mouser Electronics | Voltage References Adjustable micropower shunt voltage reference RoHS: Compliant | 14868 |
|
$0.1260 / $0.3500 | Buy Now |
|
|
STMicroelectronics | Adjustable micropower shunt voltage reference COO: Singapore RoHS: Compliant Min Qty: 1 | 14868 |
|
$0.1600 / $0.3400 | Buy Now |
|
|
Future Electronics | TL431 Series Adj 2.495 to 36 V ±2 % Programmable Voltage Reference - SOT-323-6 RoHS: Compliant pbFree: Yes Min Qty: 12000 Package Multiple: 3000 Lead time: 10 Weeks Container: Reel | 0Reel |
|
$0.1230 / $0.1290 | Buy Now |
|
DISTI #
TL431CCT
|
TME | IC: voltage reference source, 2.495V, ±2%, SOT323-6L, reel,tape Min Qty: 1 | 0 |
|
$0.0720 / $0.1400 | RFQ |
|
DISTI #
TL431CCT
|
Avnet Silica | VRef Adjustable 2495V to 36V 100mA 6Pin SOT323 TR (Alt: TL431CCT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 11 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
TL431CCT
|
EBV Elektronik | VRef Adjustable 2495V to 36V 100mA 6Pin SOT323 TR (Alt: TL431CCT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 11 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
US Tariff Estimator: TL431CCT by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TL431CCT
TL431CCT CAD Models
-

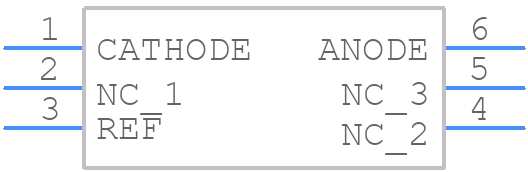

Part Symbol
-
Footprint
-

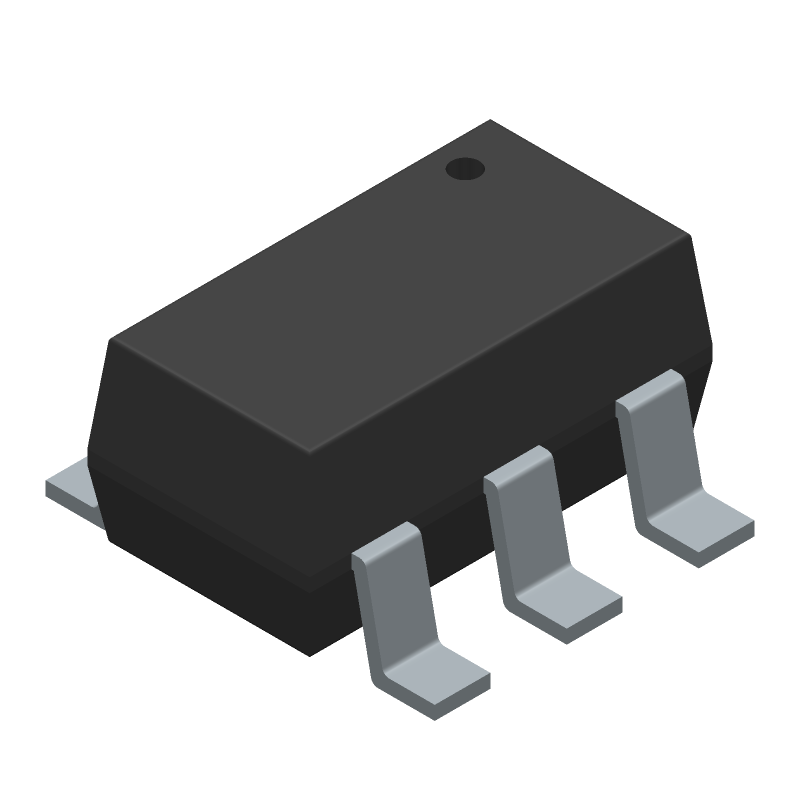

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TL431CCT Part Data Attributes
|
|
TL431CCT
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
TL431CCT
STMicroelectronics
Two Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, BIPolar, PDSO6
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Tssop, Tssop6,.08 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 10 Weeks | |
| Additional Feature | Adjustable Output Voltage From 2.5 To 36 V | |
| Analog IC - Other Type | Two Terminal Voltage Reference | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 0.1 A | |
| Output Voltage-Max | 2.55 V | |
| Output Voltage-Min | 2.44 V | |
| Output Voltage-Nom | 2.495 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP6,.08 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 Mm | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Temp Coef of Voltage-Max | 97.338 Ppm/°C | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | Yes | |
| Width | 1.25 Mm |
TL431CCT Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the TL431CCT is -40°C to 125°C.
-
To ensure stability, it's recommended to use a bypass capacitor (typically 10nF to 100nF) between the REF and ADJ pins, and to keep the impedance of the output circuit low.
-
The TL431CCT can supply up to 15mA of output current, but it's recommended to limit the output current to 10mA or less to ensure stability and accuracy.
-
While the TL431CCT can be used as a voltage regulator, it's not recommended due to its limited output current capability and lack of built-in current limiting. Instead, consider using a dedicated voltage regulator IC.
-
The output voltage of the TL431CCT can be adjusted by connecting a resistor divider network between the REF and ADJ pins, and adjusting the ratio of the resistors to set the desired output voltage.
