TL780-05CKTTR Information
TL780-05CKTTR by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TL780-05CKTTRG3 | Texas Instruments | 1.5-A Positive Voltage Regulator 3-DDPAK/TO-263 0 to 125 | |
| TL780-05CKTTR | Texas Instruments | 1.5-A Positive Voltage Regulator 3-DDPAK/TO-263 0 to 125 | |
| TL780-12KCS | Texas Instruments | 1.5-A Positive Voltage Regulator 3-TO-220 0 to 125 |
Price & Stock for TL780-05CKTTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 136 |
|
RFQ | ||
|
|
Rochester Electronics | Fixed Positive Standard Regulator, 5V, BIPolar, PSSO3 RoHS: Compliant Status: Active Min Qty: 1 | 26 |
|
$0.7068 / $1.1400 | Buy Now |
|
DISTI #
TL780-05CKTTR
|
TME | IC: voltage regulator, fixed, 5V, 1.5A, D2PAK, SMD, reel,tape, Ch: 1 Min Qty: 1 | 995 |
|
$0.8400 / $1.7000 | Buy Now |
US Tariff Estimator: TL780-05CKTTR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TL780-05CKTTR
TL780-05CKTTR CAD Models
-

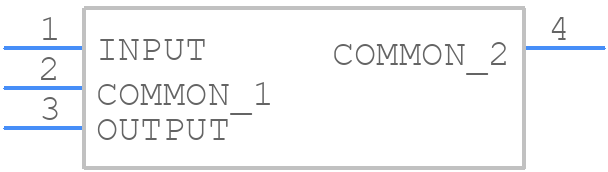

Part Symbol
-

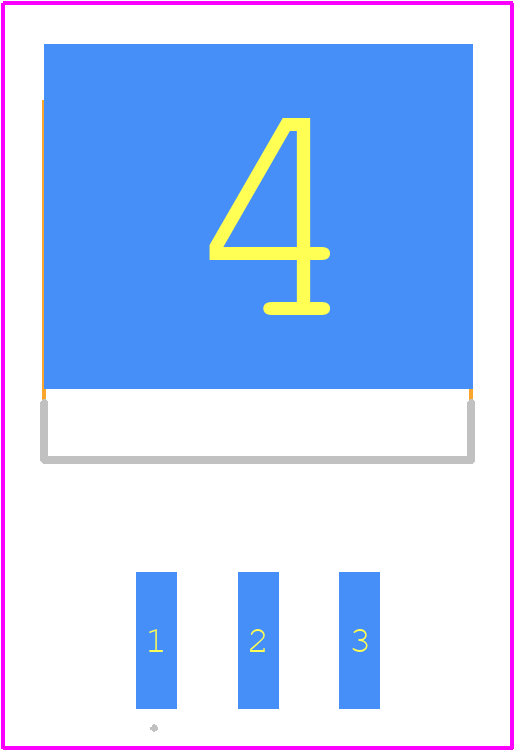

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TL780-05CKTTR Part Data Attributes
|
|
TL780-05CKTTR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TL780-05CKTTR
Texas Instruments
1.5-A, 30-V, high-accuracy, linear voltage regulator 3-DDPAK/TO-263 0 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | D2PAK | |
| Package Description | To-263, 3 Pin | |
| Pin Count | 4 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Adjustability | Fixed | |
| Dropout Voltage1-Nom | 2 V | |
| Input Voltage Absolute-Max | 35 V | |
| Input Voltage-Max | 30 V | |
| Input Voltage-Min | 7 V | |
| JESD-30 Code | R-PSSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 10.16 Mm | |
| Line Regulation-Max | 0.005% | |
| Load Regulation-Max | 0.025% | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | ||
| Output Current1-Max | 1.5 A | |
| Output Voltage1-Max | 5.1 V | |
| Output Voltage1-Min | 4.9 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TO-263 | |
| Package Equivalence Code | SMSIP3H,.55TB | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 245 | |
| Qualification Status | Not Qualified | |
| Regulator Type | Fixed Positive Single Output Standard Regulator | |
| Seated Height-Max | 4.83 Mm | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Single | |
| Voltage Tolerance-Max | 2% | |
| Width | 9.017 Mm |
