TLC271AIP Information

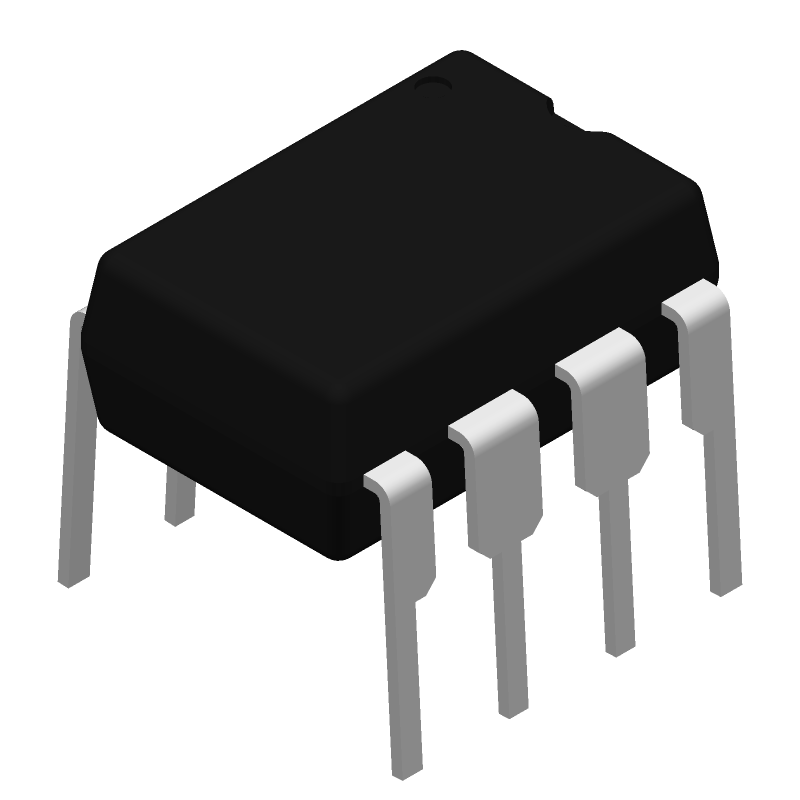

TLC271AIP by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
US Tariff Estimator: TLC271AIP by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
This table gives cross-reference parts and alternative options found for TLC271AIP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLC271AIP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
The TLC271AIP can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
Use proper ESD handling procedures, such as grounding yourself, using an ESD wrist strap, and storing the device in an anti-static bag or container.
Power on the VCC pin first, followed by the input signal. This ensures proper internal biasing and prevents latch-up or damage.
Yes, but be aware that the TLC271AIP has a limited bandwidth (around 4.5 MHz). For high-frequency applications, consider using a faster op-amp like the OPA271 or OPA827.
Use proper PCB layout techniques, such as separating analog and digital grounds, using decoupling capacitors, and minimizing trace lengths. Also, consider adding a noise-reducing capacitor (e.g., 10 nF) between the output and VCC pins.
