| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLC274CD | Texas Instruments | $0.9481 | Operational Amplifier, 4 Func, 10000uV Offset-Max, CMOS, PDSO14 | TLC274ID vs TLC274CD |
| TLC274IDR | Texas Instruments | $1.0962 | Operational Amplifier, 4 Func, 10000uV Offset-Max, CMOS, PDSO14 | TLC274ID vs TLC274IDR |
| TLC274CDR | Texas Instruments | $1.3772 | Operational Amplifier, 4 Func, 10000uV Offset-Max, CMOS, PDSO14 | TLC274ID vs TLC274CDR |
| TLC274CDG4 | Texas Instruments | Check for Price | Operational Amplifier, 4 Func, 10000uV Offset-Max, CMOS, PDSO14 | TLC274ID vs TLC274CDG4 |
| TLC274MDRG4 | Texas Instruments | Check for Price | Operational Amplifier, 4 Func, 10000uV Offset-Max, CMOS, PDSO14 | TLC274ID vs TLC274MDRG4 |
| TLC274IDG4 | Texas Instruments | Check for Price | Operational Amplifier, 4 Func, 10000uV Offset-Max, CMOS, PDSO14 | TLC274ID vs TLC274IDG4 |
| TLC274MDG4 | Texas Instruments | Check for Price | Operational Amplifier, 4 Func, 10000uV Offset-Max, CMOS, PDSO14 | TLC274ID vs TLC274MDG4 |
Part Details for TLC274ID by Texas Instruments
Results Overview of TLC274ID by Texas Instruments
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (7 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
TLC274ID Information
TLC274ID by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TLC274ID
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-1314-5-ND
|
DigiKey | IC OPAMP GP 4 CIRCUIT 14SOIC Min Qty: 350 Container: Tube |
0 Tube |
|
$1.5978 | Buy Now |
|
DISTI #
V99:2348_07379096
|
Arrow Electronics | Op Amp Quad Precision Amplifier 16V 14-Pin SOIC Tube COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 99 Weeks Date Code: 2138 | Americas - 7 |
|
$0.9160 | Buy Now |
|
DISTI #
60256467
|
Verical | Op Amp Quad Precision Amplifier 16V 14-Pin SOIC Tube RoHS: Compliant Min Qty: 7 Package Multiple: 1 Date Code: 2138 | Americas - 7 |
|
$0.9160 | Buy Now |
|
|
Bristol Electronics | Op Amp Quad Precision Amplifier 16V Automotive 14-Pin SOIC Tube | 181 |
|
RFQ | |
|
|
Quest Components | 80 |
|
$2.7300 / $4.0950 | Buy Now | |
|
|
Rochester Electronics | Operational Amplifier, 4 Func, 10000uV Offset-Max, CMOS, PDSO14 RoHS: Compliant Status: Obsolete Min Qty: 1 | 11 |
|
$1.4300 / $1.7900 | Buy Now |
|
DISTI #
V99:2348_07379096
|
Arrow Electronics | Op Amp Quad Precision Amplifier 16V 14-Pin SOIC Tube COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 99 Weeks Date Code: 2138 | Americas - 7 |
|
$0.9160 | Buy Now |
|
DISTI #
60256467
|
Verical | Op Amp Quad Precision Amplifier 16V 14-Pin SOIC Tube COO: Malaysia RoHS: Compliant Min Qty: 7 Package Multiple: 1 Date Code: 2138 | Americas - 7 |
|
$0.9160 | Buy Now |
|
DISTI #
60256467
|
Verical | Op Amp Quad Precision Amplifier 16V 14-Pin SOIC Tube COO: Malaysia RoHS: Compliant Min Qty: 7 Package Multiple: 1 Date Code: 2138 | Americas - 7 |
|
$0.9160 | Buy Now |
|
DISTI #
V99:2348_07379096
|
Arrow Electronics | Op Amp Quad Precision Amplifier 16V 14-Pin SOIC Tube COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 99 Weeks Date Code: 2138 | Americas - 7 |
|
$0.9160 | Buy Now |
US Tariff Estimator: TLC274ID by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
TLC274ID CAD Models
-
Part Symbol
-
Footprint
-

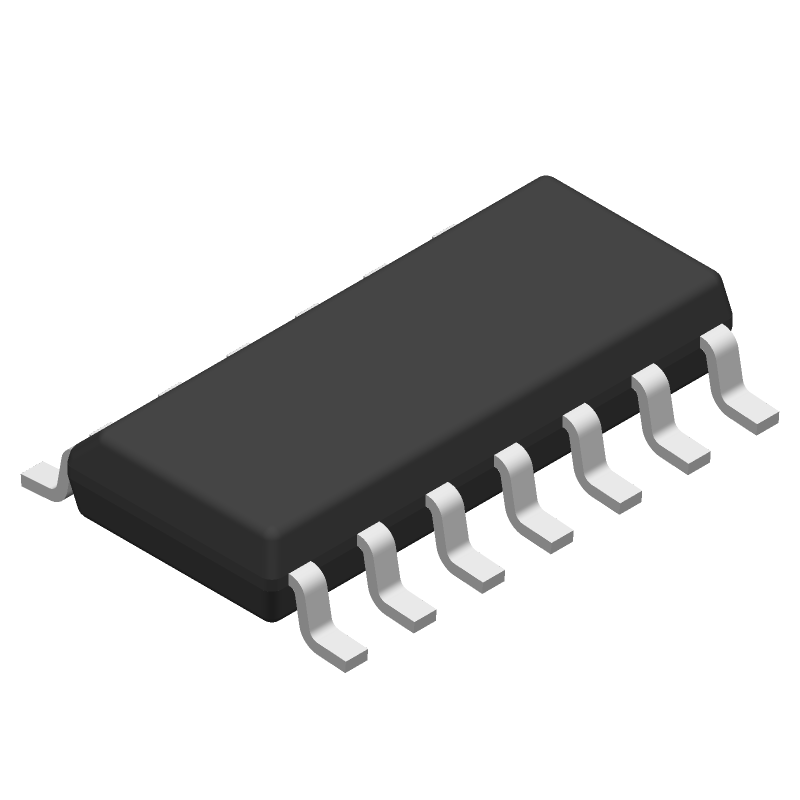

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TLC274ID Part Data Attributes
|
|
TLC274ID
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLC274ID
Texas Instruments
Operational Amplifier, 4 Func, 10000uV Offset-Max, CMOS, PDSO14
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | SOIC | |
| Pin Count | 14 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Date Of Intro | 1986-08-08 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.00006 µA | |
| Bias Current-Max (IIB) @25C | 0.00006 µA | |
| Common-mode Reject Ratio-Min | 65 Db | |
| Common-mode Reject Ratio-Nom | 80 Db | |
| Frequency Compensation | Yes | |
| Input Offset Current-Max (IIO) | 0.00006 µA | |
| Input Offset Voltage-Max | 10000 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 Mm | |
| Low-Bias | Yes | |
| Low-Offset | No | |
| Micropower | No | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Packing Method | Tube | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Slew Rate-Nom | 3.6 V/Us | |
| Supply Current-Max | 6.4 Ma | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 2000 | |
| Voltage Gain-Min | 10000 | |
| Wideband | No | |
| Width | 3.9 Mm |
Alternate Parts for TLC274ID
This table gives cross-reference parts and alternative options found for TLC274ID. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLC274ID, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
TLC274ID Frequently Asked Questions (FAQ)
-
The TLC274ID can operate from -40°C to 125°C, but the recommended operating temperature range is -40°C to 85°C for optimal performance.
-
To prevent damage, handle the TLC274ID by the body and not the pins, store it in an anti-static bag or wrap, and avoid bending or flexing the leads.
-
The recommended power-on sequence is to apply VCC first, followed by the input signals. This ensures proper initialization and prevents latch-up.
-
Yes, the TLC274ID is suitable for high-reliability and aerospace applications, but it's essential to follow proper design, testing, and qualification procedures to ensure compliance with relevant standards.
-
To troubleshoot issues, check the power supply, input signals, and output loads. Verify that the device is operated within the recommended specifications, and consider using simulation tools or oscilloscope measurements to identify the root cause.
