TLC27L4BCD Information

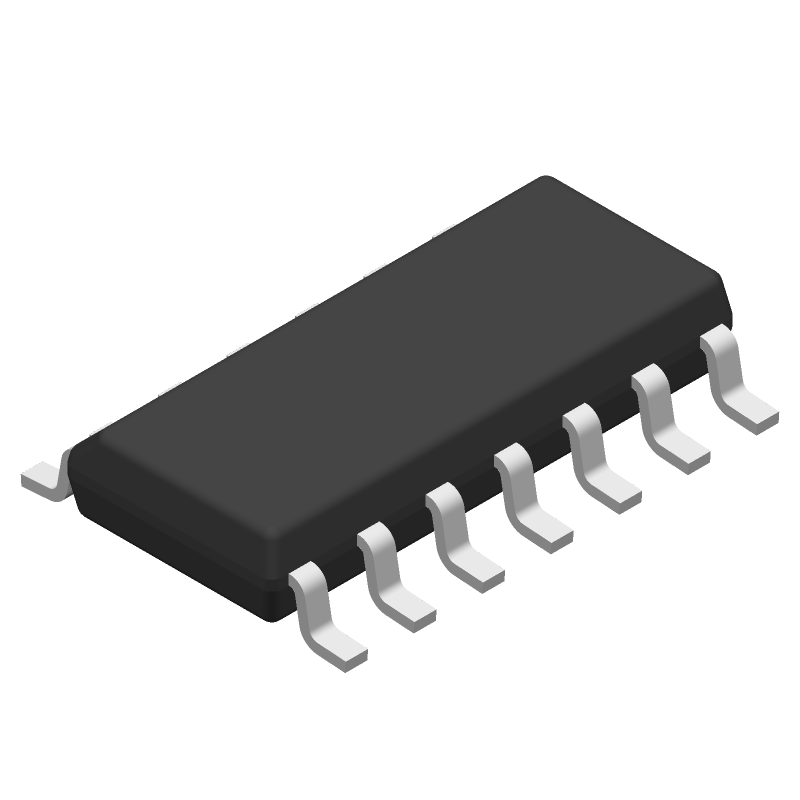

TLC27L4BCD by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
US Tariff Estimator: TLC27L4BCD by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
This table gives cross-reference parts and alternative options found for TLC27L4BCD. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLC27L4BCD, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
The maximum power dissipation of TLC27L4BCD is 670 mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (RθJA) of 125°C/W.
To ensure stability, it is recommended to use a minimum gain of 5, and to avoid capacitive loads greater than 100 pF. Additionally, a 0.1 μF bypass capacitor should be used between the VCC pin and ground to reduce noise and oscillations.
The input impedance of TLC27L4BCD is typically around 10^12 ohms, making it suitable for high-impedance sources and minimizing the loading effect on the input signal.
While TLC27L4BCD can be used as a comparator, it is not recommended due to its op-amp architecture and limited output current capability. Texas Instruments recommends using a dedicated comparator like the LM339 or LM2901 for comparator applications.
TLC27L4BCD has built-in ESD protection, but it is still recommended to follow proper handling and storage procedures to prevent ESD damage. Additionally, using ESD protection devices like TVS diodes or ESD arrays can provide extra protection for the device.
