TLV2454IPW Information

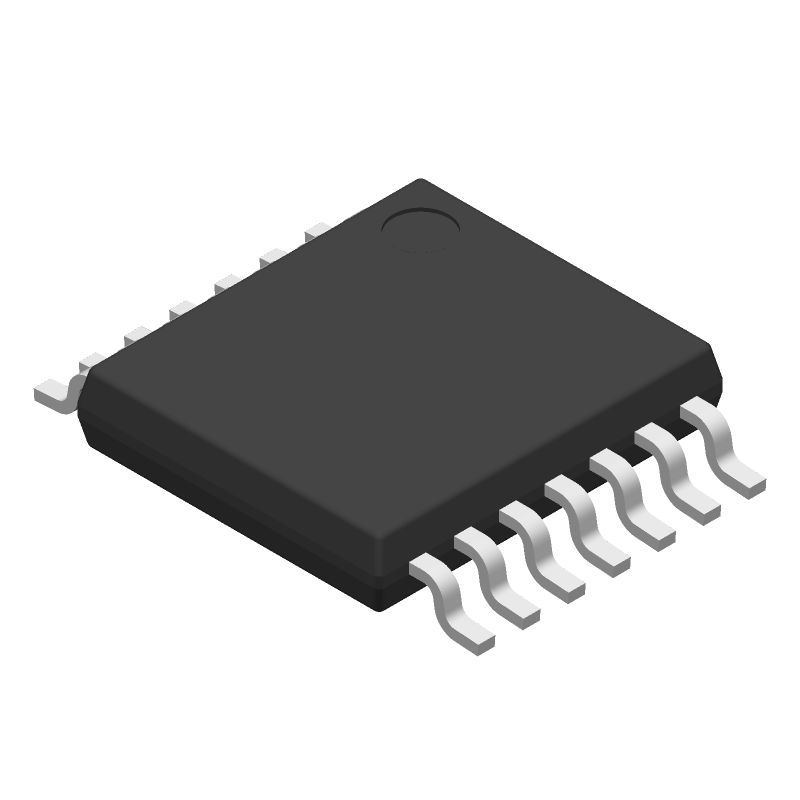

TLV2454IPW by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
US Tariff Estimator: TLV2454IPW by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
This table gives cross-reference parts and alternative options found for TLV2454IPW. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLV2454IPW, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
Texas Instruments recommends following a star-grounding scheme, keeping analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from each other to reduce crosstalk.
It is recommended to power up the VCC pin before the VIN pin, and power down the VIN pin before the VCC pin. This ensures that the internal circuitry is properly initialized and avoids latch-up or damage.
The TLV2454IPW can drive up to 1nF of capacitive load. However, excessive capacitive loading can cause instability and oscillations. It is recommended to use a series resistor to dampen the load and ensure stability.
The TLV2454IPW has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) mechanisms. The OVP protects the device from input voltages above 6V, while the UVLO disables the output when the input voltage falls below 2.7V.
The thermal impedance of the TLV2454IPW package is approximately 45°C/W. This means that for every watt of power dissipated, the junction temperature will rise by 45°C above the ambient temperature. Proper thermal design and heat sinking are essential to ensure reliable operation.
