Part Details for TLV320AIC3204IRHBR by Texas Instruments
Results Overview of TLV320AIC3204IRHBR by Texas Instruments
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (6 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
TLV320AIC3204IRHBR Information
TLV320AIC3204IRHBR by Texas Instruments is a Codec.
Codecs are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for TLV320AIC3204IRHBR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-23775-1-ND
|
DigiKey | IC STEREO AUDIO CODEC 1.8V 32QFN Min Qty: 1 Lead time: 12 Weeks Container: Tape & Reel (TR), Digi-Reel®, Cut Tape (CT) |
7550 In Stock |
|
$2.8314 / $5.1200 | Buy Now |
|
DISTI #
595-V320AIC3204IRHBR
|
Mouser Electronics | Interface - CODECs Very LW PWR Stereo A udio CODEC/TuneTM A 595-V320AIC3204IRHBT RoHS: Compliant | 3624 |
|
$2.5400 / $4.6200 | Buy Now |
|
DISTI #
V72:2272_07395528
|
Arrow Electronics | General Purpose Audio Codec 2ADC / 2DAC Ch 32-Pin VQFN EP T/R COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2251 Container: Cut Strips | Americas - 810 |
|
$2.5320 / $4.5580 | Buy Now |
|
DISTI #
66679643
|
Verical | General Purpose Audio Codec 2ADC / 2DAC Ch 32-Pin VQFN EP T/R RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2251 | Americas - 810 |
|
$2.5320 / $4.5580 | Buy Now |
|
|
Quest Components | PCM CODEC, PQCC32 | 12000 |
|
$1.5599 / $3.1197 | Buy Now |
|
|
Quest Components | PCM CODEC, PQCC32 | 80 |
|
$3.6075 / $5.8500 | Buy Now |
|
|
Quest Components | PCM CODEC, PQCC32 | 2 |
|
$3.8700 / $5.8050 | Buy Now |
|
DISTI #
V72:2272_07395528
|
Arrow Electronics | General Purpose Audio Codec 2ADC / 2DAC Ch 32-Pin VQFN EP T/R COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2251 Container: Cut Strips | Americas - 810 |
|
$2.5320 / $4.5580 | Buy Now |
|
DISTI #
66679643
|
Verical | General Purpose Audio Codec 2ADC / 2DAC Ch 32-Pin VQFN EP T/R COO: Philippines RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2251 | Americas - 810 |
|
$2.5320 / $4.5580 | Buy Now |
|
DISTI #
TLV320AIC3204IRHBR
|
TME | IC: interface, codec audio, 1.1÷3.6VDC, PCM, SMD, VQFN32, reel,tape Min Qty: 1 | 0 |
|
$3.3100 / $4.9200 | RFQ |
US Tariff Estimator: TLV320AIC3204IRHBR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TLV320AIC3204IRHBR
TLV320AIC3204IRHBR CAD Models
-

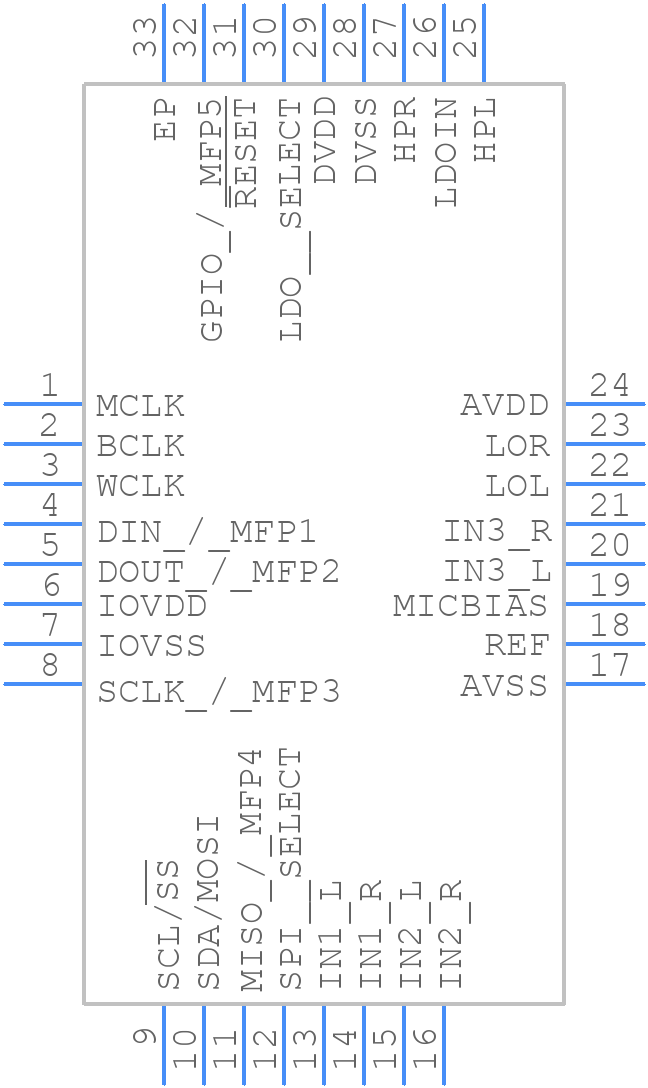

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TLV320AIC3204IRHBR Part Data Attributes
|
|
TLV320AIC3204IRHBR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLV320AIC3204IRHBR
Texas Instruments
Very-Low-Power Stereo Audio CODEC With PowerTune™ Technology 32-VQFN -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | QFN | |
| Package Description | Hvqccn, Lcc32,.2sq,20 | |
| Pin Count | 32 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Analog Input-Max | 2.5 V | |
| Filter | Yes | |
| Input Type | Single-Ended/Diff | |
| JESD-30 Code | S-PQCC-N32 | |
| JESD-609 Code | e4 | |
| Length | 5 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Channels | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 32 | |
| Operating Mode | Synchronous | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output | Voltage | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC32,.2SQ,20 | |
| Package Shape | Square | |
| Package Style | Chip Carrier, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 Mm | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | Yes | |
| Telecom IC Type | Pcm Codec | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5 Mm |
Alternate Parts for TLV320AIC3204IRHBR
This table gives cross-reference parts and alternative options found for TLV320AIC3204IRHBR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLV320AIC3204IRHBR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CMX618Q3 | CML Microcircuits Plc | Check for Price | PCM Codec, 1-Func, LQFP-48 | TLV320AIC3204IRHBR vs CMX618Q3 |
| WM9713CLGEFL/V | Cirrus Logic | Check for Price | PCM Codec, 1-Func, CMOS, PQCC48, 7 X 7 MM, 0.90 MM HEIGHT, 0.50 MM PITCH, LEAD FREE, PLASTIC, MO-220VKKD-4, QFN-48 | TLV320AIC3204IRHBR vs WM9713CLGEFL/V |
| CMX618L4 | CML Microcircuits Plc | Check for Price | PCM Codec, 1-Func, PQFP48, LQFP-48 | TLV320AIC3204IRHBR vs CMX618L4 |
| MAX98091ETM+T | Analog Devices Inc | Check for Price | Ultra-Low Power Stereo Audio Codec, 48-LFCSP-6X6X0.75, 48 Pins, -40 to 85C | TLV320AIC3204IRHBR vs MAX98091ETM+T |
| CMX638Q3 | CML Microcircuits Plc | Check for Price | PCM Codec, 1-Func, LQFP-48 | TLV320AIC3204IRHBR vs CMX638Q3 |
| TLV320AIC3204RHBR | Texas Instruments | Check for Price | IC PCM CODEC, Codec | TLV320AIC3204IRHBR vs TLV320AIC3204RHBR |
TLV320AIC3204IRHBR Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization of the device.
-
The TLV320AIC3204 can be configured for master or slave mode by setting the M/S bit in the Control Register (CR) to 0 for master mode or 1 for slave mode.
-
The TLV320AIC3204 supports clock frequencies up to 50 MHz.
-
To optimize the TLV320AIC3204 for low power consumption, set the Power Control Register (PCR) to disable unused blocks, reduce the clock frequency, and use the low-power mode.
-
The recommended layout and routing for the TLV320AIC3204 involves keeping analog and digital signals separate, using a solid ground plane, and minimizing signal trace lengths and vias.
