Part Details for TLV7031DCKR by Texas Instruments
Results Overview of TLV7031DCKR by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (3 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
TLV7031DCKR Information
TLV7031DCKR by Texas Instruments is a Comparator.
Comparators are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TLV7031DCKR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TLV7031DCKR-TEX-0
|
TME | IC: comparator, 1.6÷6.5V, Ch: 1, SMT, SC70-5, OUT: push-pull, IB: 2pA Min Qty: 3000 | 294000 |
|
$0.4750 | Buy Now |
|
|
Ameya Holding Limited | VOLTAGE COMPARATOR | 43 |
|
RFQ | |
|
DISTI #
TLV7031DCKR
|
Chip One Stop | Semiconductors RoHS: Compliant Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 2639 |
|
$0.2710 / $0.4910 | Buy Now |
|
|
Chip Stock | ComparatorLowVoltagenanoPowerSinglePush-Pull1.6Vto6.5V5-PinSC-70T/R | 70560 |
|
RFQ | |
|
|
Win Source Electronics | VOLTAGE COMPARATOR / Small Size, nanoPower, Low-Voltage Comparators | 58120 |
|
$0.1715 / $0.2214 | Buy Now |
US Tariff Estimator: TLV7031DCKR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TLV7031DCKR
TLV7031DCKR CAD Models
-

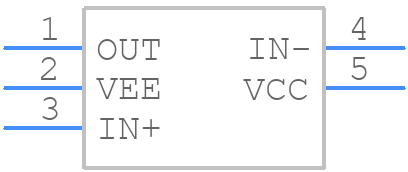

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TLV7031DCKR Part Data Attributes
|
|
TLV7031DCKR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLV7031DCKR
Texas Instruments
Nanopower, small size comparator with push-pull output 5-SC70 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Date Of Intro | 2018-03-23 | |
| Amplifier Type | Comparator | |
| Bias Current-Max (IIB) @25C | 0.000002 µA | |
| Input Offset Voltage-Max | 8000 µV | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Type | Push-Pull | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP5/6,.08 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Packing Method | Tr, 7 Inch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Response Time-Nom | 3000 Ns | |
| Seated Height-Max | 1.1 Mm | |
| Supply Current-Max | 0.0009 Ma | |
| Supply Voltage Limit-Max | 7 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Temperature Grade | Automotive | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 Mm |
Alternate Parts for TLV7031DCKR
This table gives cross-reference parts and alternative options found for TLV7031DCKR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLV7031DCKR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLV7041DCKT | Texas Instruments | $0.7519 | Nanopower, small size comparator with open-drain output 5-SC70 -40 to 125 | TLV7031DCKR vs TLV7041DCKT |
| TLV7041DCKR | Texas Instruments | Check for Price | Nanopower, small size comparator with open-drain output 5-SC70 -40 to 125 | TLV7031DCKR vs TLV7041DCKR |
| TLV7031DCKT | Texas Instruments | Check for Price | Nanopower, small size comparator with push-pull output 5-SC70 -40 to 125 | TLV7031DCKR vs TLV7031DCKT |
TLV7031DCKR Frequently Asked Questions (FAQ)
-
The recommended input capacitor value is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce output voltage ripple and improve transient response.
-
To ensure stability, it's essential to follow the recommended PCB layout guidelines, use a sufficient input capacitor, and add a 10nF to 100nF capacitor between the VOUT and GND pins. Additionally, avoid using long, thin traces and keep the output capacitor close to the VOUT pin.
-
The TLV7031DCKR can deliver up to 300mA of output current, but this may vary depending on the input voltage, output voltage, and ambient temperature. It's essential to check the device's thermal performance and power dissipation to ensure reliable operation.
-
The TLV7031DCKR is rated for operation up to 125°C, but its performance and reliability may degrade at higher temperatures. It's crucial to consider the device's thermal performance, power dissipation, and derating factors when operating in high-temperature environments.
-
To implement a soft-start function, you can add a resistor-capacitor (RC) network between the EN pin and GND. This will slow down the startup time and reduce inrush current. The recommended values for the RC network are R = 1kΩ to 10kΩ and C = 1uF to 10uF.
