Part Details for TLV9152SIRUGR by Texas Instruments
Results Overview of TLV9152SIRUGR by Texas Instruments
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Industrial Automation
Agriculture Technology
Robotics and Drones
TLV9152SIRUGR Information
TLV9152SIRUGR by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TLV9152SIRUGR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-TLV9152SIRUGRTR-ND
|
DigiKey | IC OP AMP 2CH 10-X2QFN Min Qty: 3000 Container: Tape & Reel |
15590 Tape & Reel |
|
$0.9735 / $1.0048 | Buy Now |
|
DISTI #
296-TLV9152SIRUGRCT-ND
|
DigiKey | IC OP AMP 2CH 10-X2QFN Min Qty: 1 Container: Cut Tape |
15590 Cut Tape |
|
$1.0801 / $2.0000 | Buy Now |
|
DISTI #
296-TLV9152SIRUGRDKR-ND
|
DigiKey | IC OP AMP 2CH 10-X2QFN Min Qty: 1 Container: Digi-Reel |
15590 Digi-Reel® |
|
$1.0801 / $2.0000 | Buy Now |
|
DISTI #
595-TLV9152SIRUGR
|
Mouser Electronics | Operational Amplifiers - Op Amps Dual 16-V 4.5-MHz lo w-power operation RoHS: Compliant | 1424 |
|
$0.9560 / $1.9500 | Buy Now |
|
|
Bristol Electronics | Op Amp Dual Low Offset Voltage Amplifier R-R I/O ±8V/16V 10-Pin X2QFN T/R Min Qty: 1 | 2600 |
|
$0.7425 / $2.2500 | Buy Now |
|
|
Quest Components | 2080 |
|
$0.8250 / $3.0000 | Buy Now | |
|
|
Quest Components | 2080 |
|
$1.3500 / $3.6000 | Buy Now | |
|
DISTI #
TLV9152SIRUGR
|
TME | IC: operational amplifier, 4.5MHz, Ch: 2, 2.7÷16VDC, X2QFN10, 10pA Min Qty: 3000 | 0 |
|
$1.1000 | RFQ |
US Tariff Estimator: TLV9152SIRUGR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

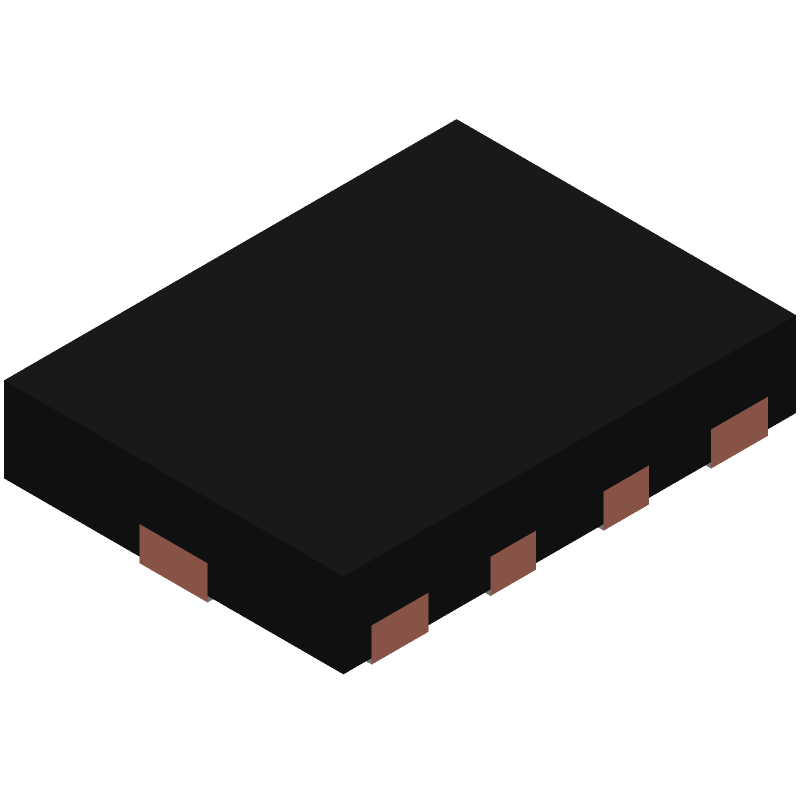

TLV9152SIRUGR CAD Models
-
Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TLV9152SIRUGR Part Data Attributes
|
|
TLV9152SIRUGR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLV9152SIRUGR
Texas Instruments
Operational Amplifier, 2 Func, 750uV Offset-Max, CMOS, PQCC10
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | X2qfn-10 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Date Of Intro | 2020-09-12 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Common-mode Reject Ratio-Min | 110 Db | |
| Common-mode Reject Ratio-Nom | 125 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 750 µV | |
| JESD-30 Code | R-PQCC-N10 | |
| JESD-609 Code | e4 | |
| Length | 2 Mm | |
| Low-Bias | Yes | |
| Low-Offset | Yes | |
| Micropower | Yes | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 2 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC10,.06X.08,20 | |
| Package Shape | Rectangular | |
| Package Style | Chip Carrier, Heat Sink/Slug, Very Thin Profile | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Seated Height-Max | 0.4 Mm | |
| Slew Rate-Nom | 21 V/Us | |
| Supply Current-Max | 1.37 Ma | |
| Supply Voltage Limit-Max | 20 V | |
| Supply Voltage-Nom (Vsup) | 4 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 4500 | |
| Voltage Gain-Min | 158489.3192 | |
| Wideband | No | |
| Width | 1.5 Mm |
