Part Details for TMP411ADGKR by Texas Instruments
Results Overview of TMP411ADGKR by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (3 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Renewable Energy
TMP411ADGKR Information
TMP411ADGKR by Texas Instruments is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TMP411ADGKRG4 | Texas Instruments | Remote and Local Temperature Sensor with N-Factor and Series-R Correction in MSOP-8 8-VSSOP -40 to 125 | |
| TMP411ADGKR | Texas Instruments | Remote and Local Temperature Sensor with N-Factor and Series-R Correction in MSOP-8 8-VSSOP -40 to 125 |
Price & Stock for TMP411ADGKR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 21 |
|
RFQ | ||
|
|
Rochester Electronics | Serial Switch/Digital Sensor, 12 Bit(s), 2.5Cel, Square, 8 Pin, Surface Mount RoHS: Compliant Status: Active Min Qty: 1 | 15 |
|
$0.5663 / $0.9134 | Buy Now |
|
DISTI #
TMP411ADGKR
|
TME | IC: temperature sensor, local,remote, -40÷125°C, VSSOP8, SMD Min Qty: 1 | 0 |
|
$0.9400 / $1.6900 | RFQ |
|
DISTI #
SMC-TMP411ADGKR
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days Date Code: 2251*9,2303*31 | 40 |
|
RFQ | |
|
|
Chip Stock | SENSORTEMPI2C/SMBUS8VSSOP/TempSensorDigitalSerial(2-Wire,I2C,SMBus)8-PinVSSOPT/R | 82700 |
|
RFQ | |
|
|
LCSC | -40+125 1 SMBus 2.7V5.5V VSSOP-8-0.65mm Analog and Digital Output RoHS | 608 |
|
$0.3760 / $0.7427 | Buy Now |
|
|
Win Source Electronics | SENSOR TEMP I2C/SMBUS 8VSSOP / Temp Sensor Digital Serial (2-Wire, I2C, SMBus) 8-Pin VSSOP T/R | 70200 |
|
$0.3189 / $0.4118 | Buy Now |
US Tariff Estimator: TMP411ADGKR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TMP411ADGKR
TMP411ADGKR CAD Models
-

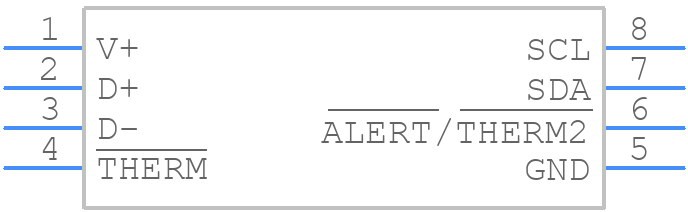

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TMP411ADGKR Part Data Attributes
|
|
TMP411ADGKR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TMP411ADGKR
Texas Instruments
Remote and local temperature sensor with N-factor and series resistance correction 8-VSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Accuracy-Max (Cel) | 2.5 Cel | |
| Additional Feature | Hysteresis 500 Mv | |
| Body Breadth | 3 Mm | |
| Body Height | 1.1 Mm | |
| Body Length or Diameter | 3 Mm | |
| Housing | Plastic | |
| JESD-609 Code | e4 | |
| Mounting Feature | Surface Mount | |
| Number of Bits | 12 | |
| Number of Terminals | 8 | |
| Operating Current-Max | 0.03 Ma | |
| Operating Temperature-Max | 127 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Interface Type | 2-Wire Interface | |
| Package Body Material | Plastic/Epoxy | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape/Style | Square | |
| Sensors/Transducers Type | Temperature Sensor,Switch/Digital Output,Serial | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.7 V | |
| Surface Mount | Yes | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Termination Type | Solder |
Alternate Parts for TMP411ADGKR
This table gives cross-reference parts and alternative options found for TMP411ADGKR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TMP411ADGKR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TMP411CDGKR | Texas Instruments | $0.6468 | Remote and local temperature sensor with N-factor and series resistance correction 8-VSSOP -40 to 125 | TMP411ADGKR vs TMP411CDGKR |
| TMP411ADGKTG4 | Texas Instruments | Check for Price | Remote and Local Temperature Sensor with N-Factor and Series-R Correction in MSOP-8 8-VSSOP -40 to 125 | TMP411ADGKR vs TMP411ADGKTG4 |
| TMP411CDGKRG4 | Texas Instruments | Check for Price | +/-1degC Remote and Local TEMPERATURE SENSOR with N-Factor and Series Resistance Correction 8-VSSOP -40 to 125 | TMP411ADGKR vs TMP411CDGKRG4 |
TMP411ADGKR Frequently Asked Questions (FAQ)
-
The TMP411ADGKR has an accuracy of ±1°C from -20°C to 100°C and ±2°C from -40°C to 125°C.
-
The TMP411ADGKR does not require calibration. It is a digital temperature sensor that provides a calibrated digital output.
-
The response time of the TMP411ADGKR is typically 30 seconds in still air.
-
Yes, the TMP411ADGKR is designed to operate in high-vibration environments and can withstand vibrations up to 10g.
-
The TMP411ADGKR communicates over an I2C interface. Connect the SCL pin to the microcontroller's clock line, the SDA pin to the microcontroller's data line, and the VCC pin to the microcontroller's power supply.
