Part Details for TOP271VG-TL by Power Integrations
Results Overview of TOP271VG-TL by Power Integrations
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TOP271VG-TL Information
TOP271VG-TL by Power Integrations is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
US Tariff Estimator: TOP271VG-TL by Power Integrations
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
TOP271VG-TL CAD Models
-
Part Symbol
-
Footprint
-

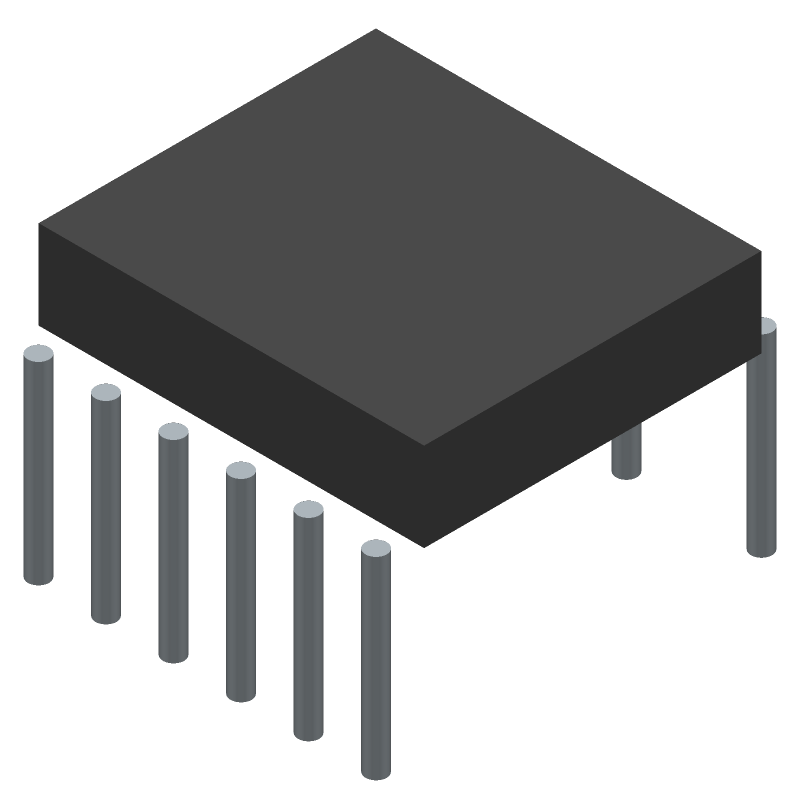

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TOP271VG-TL Part Data Attributes
|
|
TOP271VG-TL
Power Integrations
Buy Now
Datasheet
|
Compare Parts:
TOP271VG-TL
Power Integrations
LOAD SWITCH, CMOS
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Analog IC - Other Type | Load Switch | |
| JESD-609 Code | e3 | |
| Length | 8.89 Mm | |
| Number of Functions | 1 | |
| Package Code | DIP | |
| Seated Height-Max | 2.34 Mm | |
| Technology | Cmos | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Pitch | 1.78 Mm | |
| Width | 7.62 Mm |
