Part Details for TPS2054D by Texas Instruments
Results Overview of TPS2054D by Texas Instruments
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Telecommunications
Entertainment and Gaming
TPS2054D Information
TPS2054D by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS2054D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-TPS2054D-ND
|
DigiKey | IC PWR SWITCH N-CH 2X1:2 16SOIC Min Qty: 46 Lead time: 12 Weeks Container: Bulk MARKETPLACE PRODUCT |
5255 In Stock |
|
$6.4900 | Buy Now |
|
DISTI #
296-1960-5-ND
|
DigiKey | IC PWR SWITCH N-CH 2X1:2 16SOIC Min Qty: 46 Lead time: 12 Weeks Container: Tube | Temporarily Out of Stock |
|
$7.2781 | Buy Now |
|
DISTI #
595-TPS2054D
|
Mouser Electronics | Power Switch ICs - Power Distribution Quad 2in 3 out .7A R 595-TPS2054BD R 595 R 595-TPS2054BD RoHS: Compliant | 0 |
|
$6.6600 / $11.0100 | Order Now |
|
DISTI #
86048102
|
Verical | USB Power Switch Quad 5.5V 0.9A 16-Pin SOIC Tube RoHS: Compliant Min Qty: 58 Package Multiple: 1 Date Code: 1101 | Americas - 3860 |
|
$5.1875 / $6.4875 | Buy Now |
|
DISTI #
86047630
|
Verical | USB Power Switch Quad 5.5V 0.9A 16-Pin SOIC Tube RoHS: Compliant Min Qty: 58 Package Multiple: 1 | Americas - 1040 |
|
$5.1875 / $6.4875 | Buy Now |
|
DISTI #
86047852
|
Verical | USB Power Switch Quad 5.5V 0.9A 16-Pin SOIC Tube RoHS: Compliant Min Qty: 58 Package Multiple: 1 Date Code: 1001 | Americas - 315 |
|
$5.1875 / $6.4875 | Buy Now |
|
|
Rochester Electronics | Power Supply Support Circuit, Fixed, 4 Channel, PDSO16 RoHS: Compliant Status: Active Min Qty: 1 | 5255 |
|
$4.1500 / $5.1900 | Buy Now |
|
DISTI #
86048102
|
Verical | USB Power Switch Quad 5.5V 0.9A 16-Pin SOIC Tube RoHS: Compliant Min Qty: 58 Package Multiple: 1 Date Code: 1101 | Americas - 3860 |
|
$5.1875 / $6.4875 | Buy Now |
|
DISTI #
86047630
|
Verical | USB Power Switch Quad 5.5V 0.9A 16-Pin SOIC Tube RoHS: Compliant Min Qty: 58 Package Multiple: 1 | Americas - 1040 |
|
$5.1875 / $6.4875 | Buy Now |
|
DISTI #
86047852
|
Verical | USB Power Switch Quad 5.5V 0.9A 16-Pin SOIC Tube RoHS: Compliant Min Qty: 58 Package Multiple: 1 Date Code: 1001 | Americas - 315 |
|
$5.1875 / $6.4875 | Buy Now |
US Tariff Estimator: TPS2054D by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TPS2054D
TPS2054D CAD Models
-

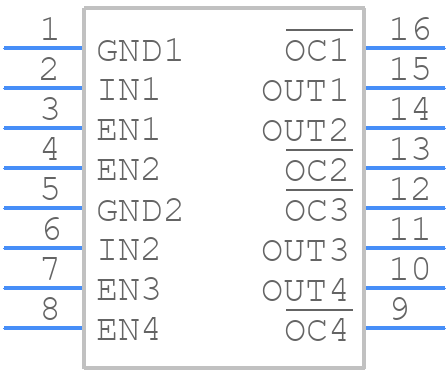

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TPS2054D Part Data Attributes
|
|
TPS2054D
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS2054D
Texas Instruments
LOAD SWITCH, Fixed, 4 Channel, PDSO16
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Pin Count | 16 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Date Of Intro | 1999-02-01 | |
| Adjustable Threshold | No | |
| Analog IC - Other Type | Load Switch | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.7 V | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 4 | |
| Number of Functions | 4 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm |
TPS2054D Frequently Asked Questions (FAQ)
-
The TPS2054D has a maximum current limit of 1A per channel, but it can be adjusted using external resistors. The current limit can be calculated using the formula: I_LIM = 1.5V / R_LIM, where R_LIM is the resistance of the external resistor.
-
To ensure safe operation during hot-swapping, it's recommended to add a 10uF to 22uF capacitor between the VBUS pin and GND to filter out voltage spikes. Additionally, the device should be powered from a voltage source that can supply the maximum current required by the device.
-
The EN (enable) pin is used to enable or disable the device. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. The EN pin can be connected to a logic signal or a switch to control the device's operation.
-
The TPS2054D has built-in OVP and UVP circuits that detect voltage faults and disconnect the output. The OVP threshold is typically set to 6.2V, and the UVP threshold is typically set to 2.7V. If an overvoltage or undervoltage condition is detected, the device will disconnect the output and latch off until the fault is removed.
-
The thermal shutdown temperature is typically set to 150°C. If the device's junction temperature exceeds this threshold, the device will shut down to prevent damage. Once the temperature drops below the thermal shutdown threshold, the device will automatically restart.
