Part Details for TS3A44159PWR by Texas Instruments
Results Overview of TS3A44159PWR by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (3 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Entertainment and Gaming
Communication and Networking
Automotive
TS3A44159PWR Information
TS3A44159PWR by Texas Instruments is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TS3A44159PWRG4 | Texas Instruments | 4-channel, 2:1 analog switch with low on-state resistance (0.45 Ω) 16-TSSOP -40 to 85 | |
| TS3A44159PWR | Texas Instruments | 4-channel, 2:1 analog switch with low on-state resistance (0.45 Ω) 16-TSSOP -40 to 85 |
Price & Stock for TS3A44159PWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AH6252
|
Newark | Ic, Anlg Switch Spdt Quad 16Tssop, No. Of Channels:4Channels, Analogue Switch Type:Spdt, On State Resistance Max:0.3Ohm, Supply Voltage Range:1.65V To 4.3V, Analogue Switch Case:Tssop, No. Of Pins:16Pins, Operating Temperature Rohs Compliant: Yes |Texas Instruments TS3A44159PWR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1157 |
|
$0.8240 / $1.0700 | Buy Now |
|
|
Bristol Electronics | 158 |
|
RFQ | ||
|
DISTI #
TS3A44159PWR
|
TME | IC: analog switch, demultiplexer,multiplexer, 2: 1, Ch: 4, TSSOP16 Min Qty: 1 | 871 |
|
$0.4010 / $0.8200 | Buy Now |
|
|
Ameya Holding Limited | TS3A44159, dual DPDT switch | 2000 |
|
RFQ | |
|
|
ComSIT USA | SPDT, 2 Func, 4 Channel, CMOS, PDSO16 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
TS3A44159PWR
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 1504 |
|
$0.3110 / $0.5470 | Buy Now |
|
|
Win Source Electronics | IC SWITCH QUAD SPDT 16TSSOP | 12050 |
|
$0.5572 / $0.8357 | Buy Now |
US Tariff Estimator: TS3A44159PWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TS3A44159PWR
TS3A44159PWR CAD Models
-

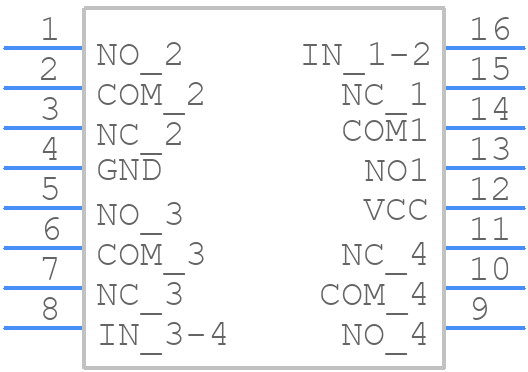

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TS3A44159PWR Part Data Attributes
|
|
TS3A44159PWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TS3A44159PWR
Texas Instruments
0.4-Ω on-state resistance, 3.3-V, 2:1 (SPDT), 4-channel analog switch 16-TSSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP, TSSOP16,.25 | |
| Pin Count | 16 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | Configuration : 2:1 SPDT | |
| Analog IC - Other Type | SPDT | |
| Bandwidth-Nom | 35 MHz | |
| Input Voltage-Max | 4.3 V | |
| Input Voltage-Min | ||
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Normal Position | NO/NC | |
| Number of Channels | 4 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Off-state Isolation-Nom | 71 dB | |
| On-state Resistance Match-Nom | 0.05 Ω | |
| On-state Resistance-Max (Ron) | 0.8 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output | SEPARATE OUTPUT | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max (Isup) | 0.0007 mA | |
| Supply Voltage-Max (Vsup) | 4.3 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 1.8 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 50 ns | |
| Switch-on Time-Max | 75 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for TS3A44159PWR
This table gives cross-reference parts and alternative options found for TS3A44159PWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TS3A44159PWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TS3A44159RSVR | Texas Instruments | $0.4710 | 0.4-Ω on-state resistance, 3.3-V, 2:1 (SPDT), 4-channel analog switch 16-UQFN -40 to 85 | TS3A44159PWR vs TS3A44159RSVR |
| TS3A44159PWRG4 | Texas Instruments | Check for Price | 0.4-Ω on-state resistance, 3.3-V, 2:1 (SPDT), 4-channel analog switch 16-TSSOP -40 to 85 | TS3A44159PWR vs TS3A44159PWRG4 |
| TS3A44159RGTRG4 | Texas Instruments | Check for Price | 0.4-Ω on-state resistance, 3.3-V, 2:1 (SPDT), 4-channel analog switch 16-VQFN -40 to 85 | TS3A44159PWR vs TS3A44159RGTRG4 |
TS3A44159PWR Frequently Asked Questions (FAQ)
-
The recommended PCB layout for the TS3A44159PWR involves placing the device near the signal source, using a solid ground plane, and minimizing the length of the signal traces to reduce noise and signal degradation.
-
To ensure proper power supply, connect the VCC pin to a 1.8V to 3.6V power supply, and decouple the power supply with a 0.1uF capacitor to reduce noise and ripple.
-
The TS3A44159PWR supports data rates up to 100 Mbps, making it suitable for high-speed applications such as HDMI and DisplayPort.
-
The TS3A44159PWR can be configured for differential or single-ended operation by connecting the appropriate pins and setting the MODE pin accordingly. Refer to the datasheet for specific configuration details.
-
The typical power consumption of the TS3A44159PWR is around 10mA, making it suitable for power-sensitive applications.
