TS512AIDT Information
TS512AIDT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TS512AIDT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-TS512AIDTCT-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8SOIC Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1370 In Stock |
|
$0.7140 / $1.5100 | Buy Now |
|
DISTI #
TS512AIDT
|
Avnet Americas | Operational Amplifier, 2Channels, 3MHz, 1.5V/us, 3V to 30V, ? 1.5V to ? 15V, 8Pins, SOIC - Tape and Reel (Alt: TS512AIDT) COO: Morocco RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.5644 / $0.5761 | Buy Now |
|
DISTI #
TS512AIDT
|
Avnet Americas | Operational Amplifier, 2Channels, 3MHz, 1.5V/us, 3V to 30V, ? 1.5V to ? 15V, 8Pins, SOIC - Tape and Reel (Alt: TS512AIDT) COO: Morocco RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.5644 / $0.5761 | Buy Now |
|
DISTI #
511-TS512AIDT
|
Mouser Electronics | Precision Amplifiers Dual Prec Hi-Perform RoHS: Compliant | 4614 |
|
$0.6690 / $1.5100 | Buy Now |
|
DISTI #
V72:2272_06549267
|
Arrow Electronics | Op Amp Dual Precision Amplifier ±15V/30V 8-Pin SO N T/R COO: Morocco RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2306 Container: Cut Strips | Americas - 1399 |
|
$0.5638 / $1.4732 | Buy Now |
|
|
STMicroelectronics | Low noise & distortion (8nV/sqrtHz & 0.03%) COO: Singapore RoHS: Compliant Min Qty: 1 | 4614 |
|
$0.7900 / $1.4800 | Buy Now |
|
|
Future Electronics | TS512A Series 30 V 3 MHz Precision Dual Operational Amplifier - SOIC-8 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks Container: Reel | 0Reel |
|
$0.4950 / $0.5100 | Buy Now |
|
|
Future Electronics | TS512A Series 30 V 3 MHz Precision Dual Operational Amplifier - SOIC-8 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks Container: Reel | 0Reel |
|
$0.4950 / $0.5100 | Buy Now |
|
DISTI #
76465681
|
Verical | Op Amp Dual Precision Amplifier ±15V/30V 8-Pin SO N T/R RoHS: Compliant Min Qty: 30 Package Multiple: 1 | Americas - 1993 |
|
$1.0119 / $1.4400 | Buy Now |
|
DISTI #
81054526
|
Verical | Op Amp Dual Precision Amplifier ±15V/30V 8-Pin SO N T/R RoHS: Compliant Min Qty: 12 Package Multiple: 1 Date Code: 2306 | Americas - 1399 |
|
$0.5638 / $1.0784 | Buy Now |
US Tariff Estimator: TS512AIDT by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TS512AIDT
TS512AIDT CAD Models
-

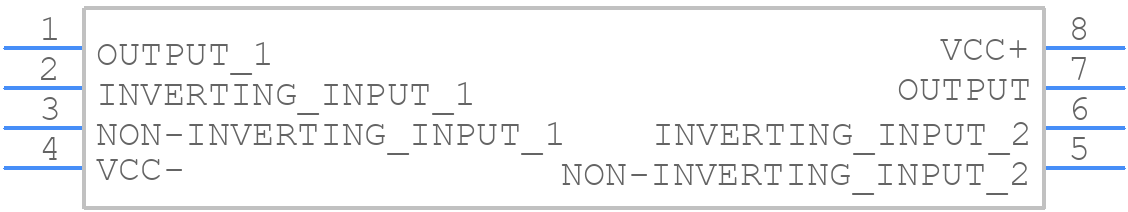

Part Symbol
-
