TSZ181IQ1T Information
TSZ181IQ1T by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TSZ181IQ1T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
03AM8376
|
Newark | Op-Amp, 3Mhz, -40 To 125Deg C, Dfn-6 Rohs Compliant: Yes |Stmicroelectronics TSZ181IQ1T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 93 |
|
$0.9410 / $1.5700 | Buy Now |
|
DISTI #
497-17775-1-ND
|
DigiKey | IC OPAMP ZERO-DRIFT 1 CIRC 6DFN Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2733 In Stock |
|
$0.5880 / $1.2700 | Buy Now |
|
DISTI #
TSZ181IQ1T
|
Avnet Americas | TSZ181 Series Operational Amplifier 25?V Very High Accuracy 3MHz High Bandwidth 5V Zero Drift 6-Pin DFN T/R - Tape and Reel (Alt: TSZ181IQ1T) COO: France RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.5519 / $0.6307 | Buy Now |
|
DISTI #
TSZ181IQ1T
|
Avnet Americas | TSZ181 Series Operational Amplifier 25?V Very High Accuracy 3MHz High Bandwidth 5V Zero Drift 6-Pin DFN T/R - Tape and Reel (Alt: TSZ181IQ1T) COO: France RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.5519 / $0.6307 | Buy Now |
|
DISTI #
511-TSZ181IQ1T
|
Mouser Electronics | Operational Amplifiers - Op Amps Very high accuracy (25uAV) high bandwidth (3 MHz) zero drift 5 V operationa RoHS: Compliant | 2989 |
|
$0.5910 / $1.2700 | Buy Now |
|
DISTI #
V36:1790_21378746
|
Arrow Electronics | Op Amp Single Chopper Amplifier R-R I/O 5.5V 6-Pin DFN T/R COO: China RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks Date Code: 2228 | Americas - 21000 |
|
$0.5194 | Buy Now |
|
DISTI #
V72:2272_21378746
|
Arrow Electronics | Op Amp Single Chopper Amplifier R-R I/O 5.5V 6-Pin DFN T/R COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2235 Container: Cut Strips | Americas - 3000 |
|
$0.5828 / $0.6522 | Buy Now |
|
|
STMicroelectronics | Very high accuracy (25 µ, V) high bandwidth (3 MHz) zero drift 5 V operational amplifiers COO: France RoHS: Compliant Min Qty: 1 | 2989 |
|
$0.6600 / $1.2500 | Buy Now |
|
|
Future Electronics | TSZ181 Series 1 Circuit 3 MHz 4.7 V/µs Rail-Rail Zero Drift Amplifier - DFN-6 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks Container: Reel | 0Reel |
|
$0.5500 / $0.5650 | Buy Now |
|
DISTI #
78407180
|
Verical | Op Amp Single Chopper Amplifier R-R I/O 5.5V 6-Pin DFN T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2228 | Americas - 21000 |
|
$0.5194 | Buy Now |
US Tariff Estimator: TSZ181IQ1T by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TSZ181IQ1T
TSZ181IQ1T CAD Models
-
Part Symbol
-
Footprint
-

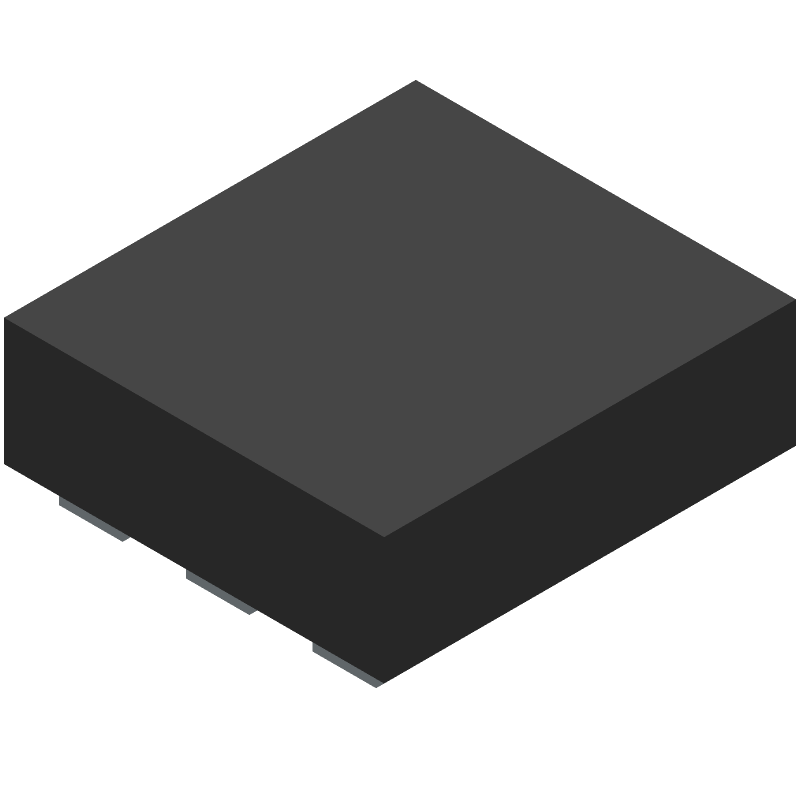

3D Model
