TUSB522PRGET Information
TUSB522PRGET by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for TUSB522PRGET
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-45115-1-ND
|
DigiKey | IC REDRIVER DUAL USB 3.1 24VQFN Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
5742 In Stock |
|
$1.5539 / $2.9500 | Buy Now |
|
DISTI #
595-TUSB522PRGET
|
Mouser Electronics | USB Interface IC Fourth generation du al-channel USB 3.0 A 595-TUSB522PRGER RoHS: Compliant | 1175 |
|
$1.3800 / $2.7100 | Buy Now |
|
DISTI #
V72:2272_16636682
|
Arrow Electronics | High Speed/Super Speed 2-Port USB Hub Controller USB 3.1 3.3V T/R 24-Pin VQFN EP COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2208 Container: Cut Strips | Americas - 158 |
|
$0.5569 / $0.5853 | Buy Now |
|
DISTI #
62506612
|
Verical | High Speed/Super Speed 2-Port USB Hub Controller USB 3.1 3.3V T/R 24-Pin VQFN EP RoHS: Compliant Min Qty: 11 Package Multiple: 1 Date Code: 2208 | Americas - 158 |
|
$0.5569 / $0.5758 | Buy Now |
|
DISTI #
V72:2272_16636682
|
Arrow Electronics | High Speed/Super Speed 2-Port USB Hub Controller USB 3.1 3.3V T/R 24-Pin VQFN EP COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2208 Container: Cut Strips | Americas - 158 |
|
$0.5569 / $0.5853 | Buy Now |
|
DISTI #
62506612
|
Verical | High Speed/Super Speed 2-Port USB Hub Controller USB 3.1 3.3V T/R 24-Pin VQFN EP COO: Philippines RoHS: Compliant Min Qty: 11 Package Multiple: 1 Date Code: 2208 | Americas - 158 |
|
$0.5569 / $0.5758 | Buy Now |
|
DISTI #
V72:2272_16636682
|
Arrow Electronics | High Speed/Super Speed 2-Port USB Hub Controller USB 3.1 3.3V T/R 24-Pin VQFN EP COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2208 Container: Cut Strips | Americas - 158 |
|
$0.5569 / $0.5853 | Buy Now |
|
DISTI #
62506612
|
Verical | High Speed/Super Speed 2-Port USB Hub Controller USB 3.1 3.3V T/R 24-Pin VQFN EP COO: Philippines RoHS: Compliant Min Qty: 11 Package Multiple: 1 Date Code: 2208 | Americas - 158 |
|
$0.5569 / $0.5758 | Buy Now |
US Tariff Estimator: TUSB522PRGET by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TUSB522PRGET

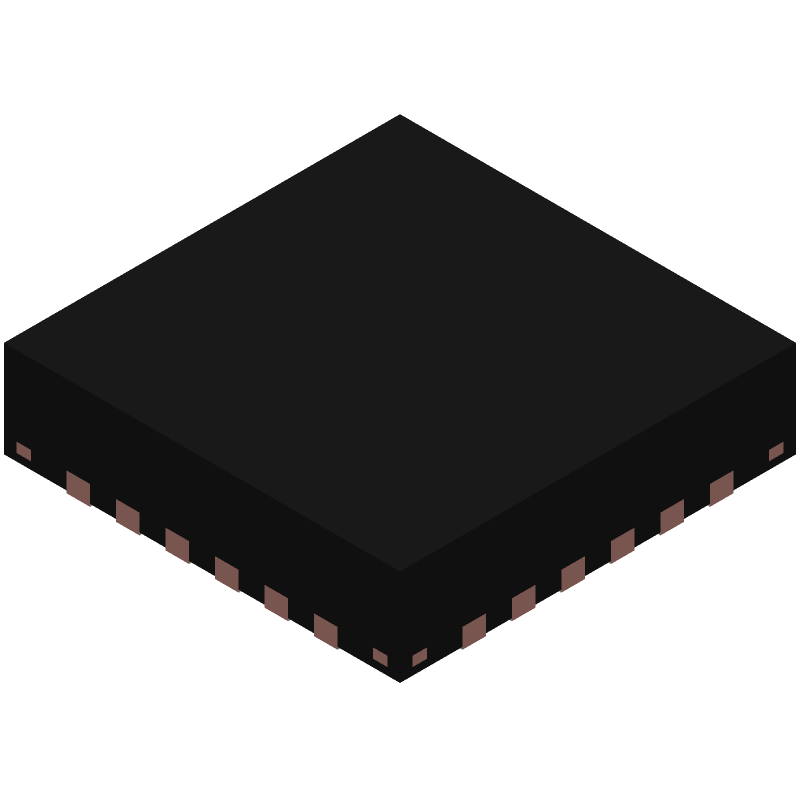

TUSB522PRGET CAD Models
-
Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TUSB522PRGET Part Data Attributes
|
|
TUSB522PRGET
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TUSB522PRGET
Texas Instruments
Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, QCC24
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Vqfn-24 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Date Of Intro | 2016-10-14 | |
| Differential Output | Yes | |
| Driver Number of Bits | 2 | |
| High Level Input Current-Max | 0.000026 A | |
| Input Characteristics | Differential | |
| Interface IC Type | Line Transceiver | |
| Interface Standard | General Purpose | |
| JESD-30 Code | S-XQCC-N24 | |
| JESD-609 Code | e4 | |
| Length | 4 Mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Channels | 2 | |
| Number of Functions | 2 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Characteristics | 3-State | |
| Output Polarity | Complementary | |
| Package Body Material | Unspecified | |
| Package Code | HVQCCN | |
| Package Shape | Square | |
| Package Style | Chip Carrier, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 1 Mm | |
| Supply Current-Max | 98 Ma | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Supply Voltage1-Max | 3.6 V | |
| Supply Voltage1-Min | 3 V | |
| Supply Voltage1-Nom | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Bicmos | |
| Temperature Grade | Commercial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4 Mm |
