TUSB8041RGCT Information
TUSB8041RGCT by Texas Instruments is a Bus Controller.
Bus Controllers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TUSB8041RGCT | Texas Instruments | 4-port 5-Gbps SuperSpeed USB 3.0 hub 64-VQFN 0 to 70 |
Price & Stock for TUSB8041RGCT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TUSB8041RGCT-TEX-0
|
TME | IC: interface, HUB controller, 28mA, USB 3.0 Min Qty: 250 | 250 |
|
$6.6320 | Buy Now |
|
|
Chip Stock | FullSpeed/HighSpeed/SuperSpeedFourPortUSB3.0HubUSB3.01.1V/3.3VT/R64-PinVQFNEP | 24670 |
|
RFQ | |
|
|
LCSC | Hub VQFN-64-EP(9x9) Interface Controllers RoHS | 3 |
|
$3.4383 / $4.9410 | Buy Now |
|
|
Win Source Electronics | IC 4-PORT USB 3.0 HUB 64VQFN | 21170 |
|
$1.3427 / $1.7342 | Buy Now |
US Tariff Estimator: TUSB8041RGCT by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TUSB8041RGCT
TUSB8041RGCT CAD Models
-

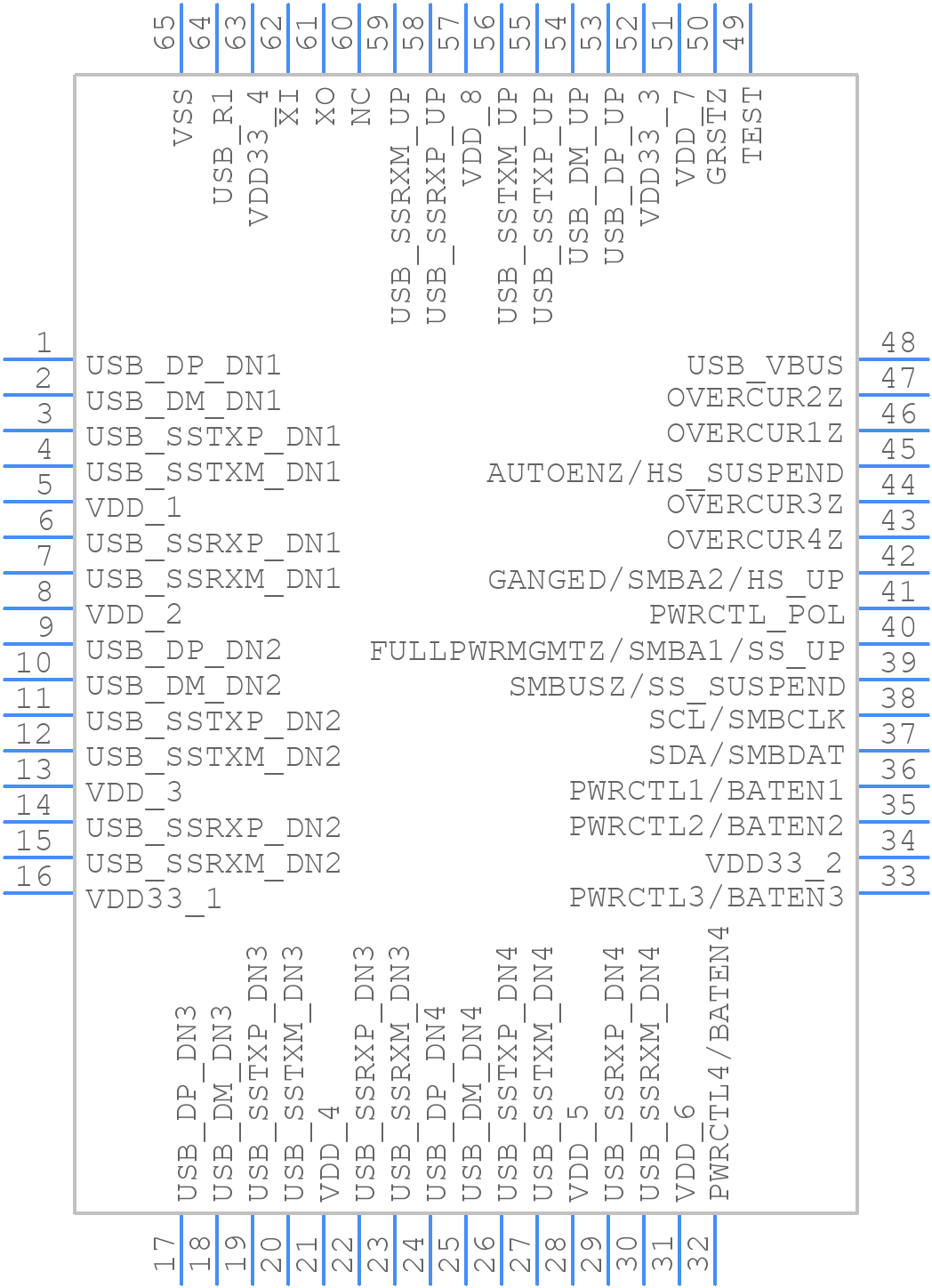

Part Symbol
-

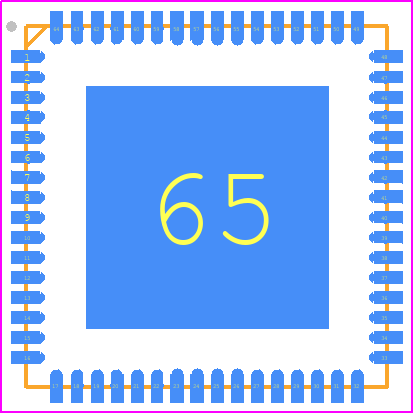

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TUSB8041RGCT Part Data Attributes
|
|
TUSB8041RGCT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TUSB8041RGCT
Texas Instruments
4-port 5-Gbps SuperSpeed USB 3.0 hub 64-VQFN 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Hvqccn, | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Address Bus Width | ||
| Bus Compatibility | I2c; Smbus | |
| Clock Frequency-Max | 24 Mhz | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQCC-N64 | |
| JESD-609 Code | e4 | |
| Length | 9 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Terminals | 64 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVQCCN | |
| Package Shape | Square | |
| Package Style | Chip Carrier, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1 Mm | |
| Supply Voltage-Max | 1.26 V | |
| Supply Voltage-Min | 0.99 V | |
| Supply Voltage-Nom | 1.1 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Commercial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 9 Mm | |
| uPs/uCs/Peripheral ICs Type | Bus Controller, Universal Serial Bus |
