TXS0108EPWR Information
TXS0108EPWR by Texas Instruments is a Level Translator.
Level Translators are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for TXS0108EPWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3120988
|
Farnell | LEVEL TRANSLATOR, BIDIRECTIONAL/TSSOP-20 COO: Malaysia RoHS: Compliant Min Qty: 1 Lead time: 53 Weeks, 2 Days Container: Cut Tape | 294 |
|
$0.7714 / $1.5482 | Buy Now |
|
DISTI #
296-23011-1-ND
|
DigiKey | IC XLTR VL BIDIR 20-TSSOP Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
14385 In Stock |
|
$0.7211 / $1.5200 | Buy Now |
|
DISTI #
595-TXS0108EPWR
|
Mouser Electronics | Translation - Voltage Levels 8B Bidir Vltg-Level Translator A 595-TXS0108EPWRG4 RoHS: Compliant | 24934 |
|
$0.7170 / $2.4300 | Buy Now |
|
DISTI #
J56:1989_00099110
|
Arrow Electronics | Voltage Level Translator 8-CH Bidirectional 20-Pin TSSOP T/R COO: Malaysia RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks Date Code: 2537 | Europe - 36000 |
|
$0.7444 / $0.7523 | Buy Now |
|
DISTI #
V72:2272_07427434
|
Arrow Electronics | Voltage Level Translator 8-CH Bidirectional 20-Pin TSSOP T/R COO: Malaysia RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2522 Container: Cut Strips | Americas - 264 |
|
$0.6311 / $1.3185 | Buy Now |
|
DISTI #
91789970
|
Verical | Voltage Level Translator 8-CH Bidirectional 20-Pin TSSOP T/R RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 2522 | Americas - 264 |
|
$0.6311 / $0.9586 | Buy Now |
|
|
Bristol Electronics | 1126 |
|
RFQ | ||
|
|
Bristol Electronics | 296 |
|
RFQ | ||
|
|
Bristol Electronics | 170 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 3 | 16 |
|
$1.2188 / $1.8750 | Buy Now |
US Tariff Estimator: TXS0108EPWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TXS0108EPWR
TXS0108EPWR CAD Models
-

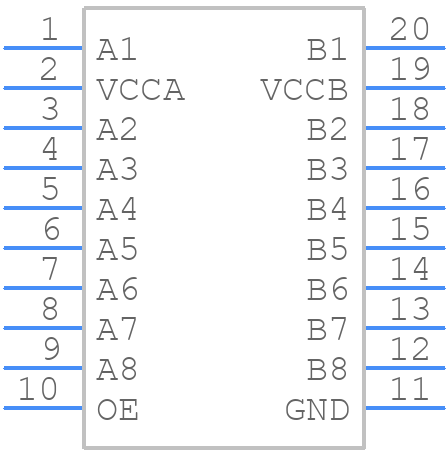

Part Symbol
-
