TXU0204PWR Information
TXU0204PWR by Texas Instruments is a Level Translator.
Level Translators are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for TXU0204PWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-TXU0204PWRCT-ND
|
DigiKey | IC XLTR VL UNIDIR 14-TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
6753 In Stock |
|
$0.4400 / $0.9900 | Buy Now |
|
DISTI #
595-TXU0204PWR
|
Mouser Electronics | Translation - Voltage Levels Four-channel fixed m ultidirectional lev RoHS: Compliant | 2389 |
|
$0.4450 / $1.6300 | Buy Now |
|
|
Bristol Electronics | 1956 |
|
RFQ | ||
|
|
Quest Components | 4 FUNC, TRUE OUTPUT, PDSO14 | 1564 |
|
$0.6720 / $1.9200 | Buy Now |
|
|
Quest Components | 4 FUNC, TRUE OUTPUT, PDSO14 | 41 |
|
$0.4600 / $0.6900 | Buy Now |
|
|
Chip Stock | Four-channelfixedmultidirectionallevelshifter14-TSSOP-40to125 | 9300 |
|
RFQ | |
|
|
LCSC | 200Mbps 1 4 TSSOP-14 Translators Level Shifters RoHS | 1476 |
|
$0.4136 / $0.7947 | Buy Now |
|
|
Win Source Electronics | IC TRANSLATOR UNIDIR 14TSSOP / Voltage Level Translator Unidirectional 1 Circuit 4 Channel 200Mbps 14-TSSOP | 7190 |
|
$0.4643 / $0.6964 | Buy Now |
US Tariff Estimator: TXU0204PWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TXU0204PWR
TXU0204PWR CAD Models
-

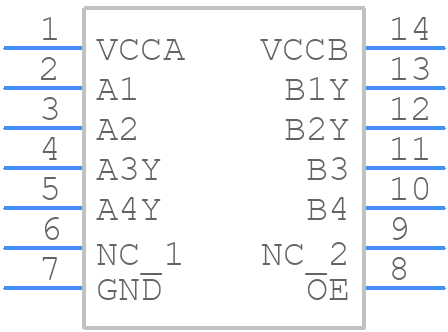

Part Symbol
-

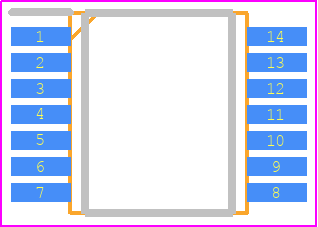

Footprint
-

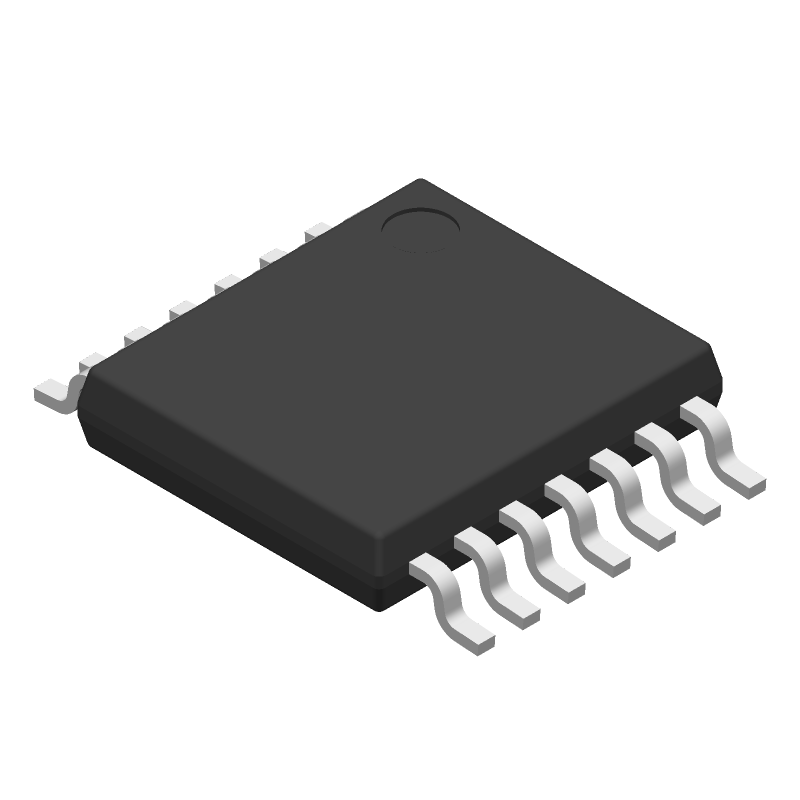

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TXU0204PWR Part Data Attributes
|
|
TXU0204PWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TXU0204PWR
Texas Instruments
4 Func, True Output, BICMOS, PDSO14
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Tssop, Tssop14,.25 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Delay-Max | 8 Ns | |
| Input Characteristics | Schmitt Trigger | |
| Interface IC Type | Voltage Level Translator | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 5 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 4 | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-State | |
| Output Latch or Register | None | |
| Output Low Current-Max | -0.012 A | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.2 Mm | |
| Supply Current-Max | 5.5 Ma | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 0.44 V | |
| Supply Voltage-Nom | 3.3 V | |
| Supply Voltage1-Max | 5.5 V | |
| Supply Voltage1-Min | 1.08 V | |
| Supply Voltage1-Nom | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Bicmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 Mm |
