Part Details for UCC21736QDWRQ1 by Texas Instruments
Results Overview of UCC21736QDWRQ1 by Texas Instruments
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (5 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
UCC21736QDWRQ1 Information
UCC21736QDWRQ1 by Texas Instruments is an MOSFET Driver.
MOSFET Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
US Tariff Estimator: UCC21736QDWRQ1 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for UCC21736QDWRQ1
UCC21736QDWRQ1 CAD Models
-

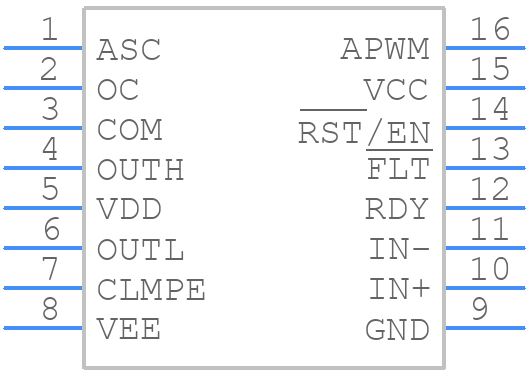

Part Symbol
-

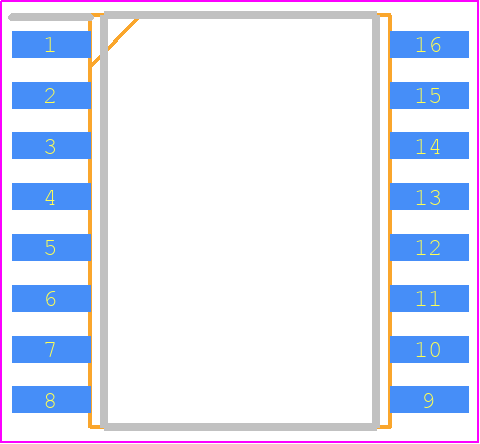

Footprint
-

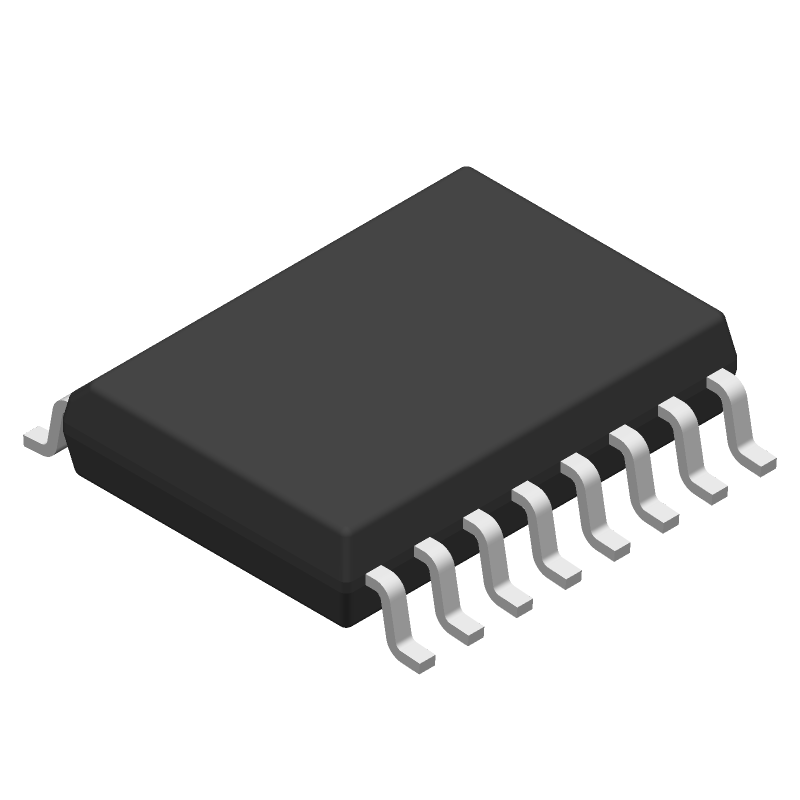

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
UCC21736QDWRQ1 Part Data Attributes
|
|
UCC21736QDWRQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
UCC21736QDWRQ1
Texas Instruments
Buffer or Inverter Based IGBT/MOSFET Driver, 10A, PDSO16
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Package Description | Sop, Sop16,.4 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Date Of Intro | 2020-02-27 | |
| High Side Driver | Yes | |
| Input Characteristics | Gated Schmitt Trigger | |
| Interface IC Type | Buffer Or Inverter Based Igbt/Mosfet Driver | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 10.3 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | Open-Drain | |
| Output Current-Max | 10 A | |
| Output Peak Current Limit-Nom | 10 A | |
| Output Polarity | True | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Screening Level | Aec-Q100 | |
| Seated Height-Max | 2.65 Mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Supply Voltage1-Max | 33 V | |
| Supply Voltage1-Min | 13 V | |
| Supply Voltage1-Nom | 15 V | |
| Surface Mount | Yes | |
| Temperature Grade | Automotive | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Turn-off Time | 0.13 µS | |
| Turn-on Time | 0.13 µS | |
| Width | 7.5 Mm |
Alternate Parts for UCC21736QDWRQ1
This table gives cross-reference parts and alternative options found for UCC21736QDWRQ1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of UCC21736QDWRQ1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MIC5019YFT-TR | Microchip Technology Inc | $0.8760 | Ultra-Small High Side MOSFET Driver | UCC21736QDWRQ1 vs MIC5019YFT-TR |
| PUCC21750DW | Texas Instruments | Check for Price | Buffer/Inverter Based MOSFET Driver, 10A, PDSO16 | UCC21736QDWRQ1 vs PUCC21750DW |
| MIC5019YFT-T5 | Microchip Technology Inc | Check for Price | Ultra-Small High Side MOSFET Driver | UCC21736QDWRQ1 vs MIC5019YFT-T5 |
| PUCC21750QDWRQ1 | Texas Instruments | Check for Price | Buffer or Inverter Based IGBT/MOSFET Driver, 10A, PDSO16 | UCC21736QDWRQ1 vs PUCC21750QDWRQ1 |
| UCC21750QDWRQ1 | Texas Instruments | Check for Price | Buffer or Inverter Based IGBT/MOSFET Driver, 10A, PDSO16 | UCC21736QDWRQ1 vs UCC21750QDWRQ1 |
UCC21736QDWRQ1 Frequently Asked Questions (FAQ)
-
Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The transformer selection depends on the specific application requirements, such as output voltage, current, and power level. Texas Instruments provides a transformer selection guide in the application note SLUA624, which includes guidelines for selecting the right transformer and calculating the transformer's turns ratio, inductance, and leakage inductance.
-
The maximum operating temperature range for UCC21736QDWRQ1 is -40°C to 125°C, as specified in the datasheet. However, the device's performance and reliability may degrade at higher temperatures, so it's essential to ensure proper thermal management and cooling in the system design.
-
The UCC21736QDWRQ1 has built-in OVP and UVP features, but they require external resistors and capacitors to set the threshold voltages. The application note SLUA625 provides a detailed guide on how to implement OVP and UVP using the device's internal protection features and external components.
-
The recommended input capacitor value and type depend on the specific application requirements, such as input voltage, current, and ripple requirements. A general guideline is to use a low-ESR ceramic capacitor with a value between 1 μF to 10 μF, as specified in the datasheet. However, it's essential to perform a thorough input filter design to ensure the capacitor meets the application's requirements.
