Capacitors / Fixed Capacitors / UCD1E101MCL1GS
Datasheets
UCD1E101MCL1GS by: Nichicon Corporation

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2626, CHIP

Part Details for UCD1E101MCL1GS by Nichicon Corporation

Results Overview of UCD1E101MCL1GS by Nichicon Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

UCD1E101MCL1GS Information

UCD1E101MCL1GS by Nichicon Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for UCD1E101MCL1GS

Part # Distributor Description Stock Price Buy
DISTI # 58R7045
Newark Aluminum Electrolytic Capacitor, 100Uf, 25V, 20%, Smd, Full Reel, Capacitor Case/Package:Radial Can - Smd, Capacitance:100Μf, Voltage(Dc):25V, Esr:-, Lifetime @ Temperature:2000 Hours @ 85°C, Polarity:Polar, Product Diameter:6.3Mm Rohs Compliant: Yes |Nichicon UCD1E101MCL1GS RoHS: Compliant Min Qty: 900 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.1760
  • 5,000 $0.1660
  • 10,000 $0.1450
  • 20,000 $0.1290
  • 30,000 $0.1190
  • 50,000 $0.1090
$0.1090 / $0.1760 Buy Now
DISTI # 70409333
RS ALUMINUM ELECTROLYTIC CAPACITOR, 100UF 25 V DC, CD SERIES 2000H 6.3(DIA.)X7.7MM Min Qty: 10 Package Multiple: 1 Container: Bulk 0
  • 10 $0.3430
  • 100 $0.3260
  • 500 $0.3090
  • 1,000 $0.2910
$0.2910 / $0.3430 RFQ
DISTI # UCD1E101MCL1GS
TME Capacitor: electrolytic, low ESR, SMD, 100uF, 25VDC, Ø6.3x7.7mm Min Qty: 1 157
  • 1 $0.4300
  • 10 $0.2180
  • 100 $0.1670
  • 500 $0.1370
  • 900 $0.1270
  • 1,800 $0.1160
  • 2,700 $0.1090
  • 4,500 $0.1020
  • 9,000 $0.1000
$0.1000 / $0.4300 Buy Now
DISTI # UCD1E101MCL1GS
Avnet Abacus (Alt: UCD1E101MCL1GS) RoHS: Compliant Min Qty: 900 Package Multiple: 900 Lead time: 47 Weeks, 0 Days Abacus - 133200
Buy Now
DISTI # UCD1E101MCL1GS
Chip One Stop Passives RoHS: Compliant Min Qty: 10 Lead time: 0 Weeks, 1 Days Container: Cut Tape 4163
  • 10 $0.2160
  • 50 $0.1120
  • 100 $0.1040
  • 200 $0.0953
  • 500 $0.0815
  • 1,800 $0.0723
  • 7,200 $0.0686
  • 14,400 $0.0685
  • 57,600 $0.0683
$0.0683 / $0.2160 Buy Now
LCSC 100uF 25V 20% 145mA120Hz SMDD6.3xL7.7mm Aluminum Electrolytic Capacitors RoHS 2565
  • 5 $0.1450
  • 50 $0.1160
  • 150 $0.1015
  • 900 $0.0906
  • 2,700 $0.0819
  • 5,400 $0.0776
$0.0776 / $0.1450 Buy Now
DISTI # ECUCD100/25
Maritex Electrolytic capacitor, SMD, 100uF, 25V, 105deg.C, 6.3x7.7, 20%, 2000h Min Qty: 1 Package Multiple: 1 4500
  • 1 $0.2950
  • 10 $0.2020
  • 50 $0.1450
  • 100 $0.1300
  • 250 $0.1200
  • 900 $0.1130
  • 1,800 $0.1110
$0.1110 / $0.2950 Buy Now
New Advantage Corporation CD Series 25 V 100 �F Can Aluminum Electrolytic Capacitor RoHS: Compliant Min Qty: 1 Package Multiple: 900 18000
  • 1,800 $0.1783
  • 18,000 $0.1646
$0.1646 / $0.1783 Buy Now

US Tariff Estimator: UCD1E101MCL1GS by Nichicon Corporation

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

UCD1E101MCL1GS
Nichicon Corporation
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for UCD1E101MCL1GS

UCD1E101MCL1GS CAD Models

  • Part Symbol

    schematic symbol

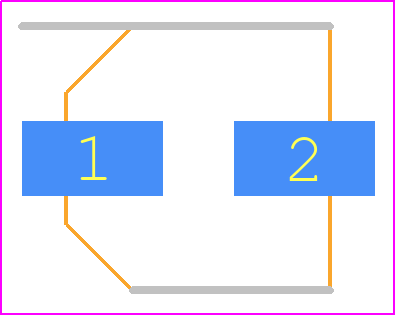

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

UCD1E101MCL1GS Part Data Attributes

Parametric Data
UCD1E101MCL1GS Nichicon Corporation
Buy Now Datasheet
Compare Parts:
UCD1E101MCL1GS Nichicon Corporation Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2626, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NICHICON CORP
Package Description CHIP
Reach Compliance Code Not Compliant
ECCN Code EAR99
HTS Code 8532.22.00
Samacsys Manufacturer Nichicon
Additional Feature RIPPLE CURRENT IS MEASURED AT 100 KHZ
Capacitance 100 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 6.3 mm
Dielectric Material ALUMINUM (WET)
Height 7.7 mm
JESD-609 Code e3
Leakage Current 0.025 mA
Length 6.6 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Package Shape CYLINDRICAL PACKAGE
Package Style SMT
Packing Method TR, 15 INCH
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 25 V
Reference Standard AEC-Q200
Ripple Current 145 mA
Size Code 2626
Surface Mount YES
Tan Delta 0.14
Terminal Finish Matte Tin (Sn)
Terminal Shape FLAT
Width 6.6 mm

Alternate Parts for UCD1E101MCL1GS

This table gives cross-reference parts and alternative options found for UCD1E101MCL1GS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of UCD1E101MCL1GS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
EEEFKE101XAL Panasonic Electronic Components $0.1723 Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2626, CHIP UCD1E101MCL1GS vs EEEFKE101XAL
UWD1E101MCL1GS Nichicon Corporation $0.2029 Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2626, CHIP, ROHS COMPLIANT UCD1E101MCL1GS vs UWD1E101MCL1GS
25CE100FS SUN Electronic Industries Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2926, ROHS COMPLIANT UCD1E101MCL1GS vs 25CE100FS
VZL101M1ETR-0607KS Surge Components Inc Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2626, CHIP UCD1E101MCL1GS vs VZL101M1ETR-0607KS
UCD1E101MCS1GS Nichicon Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2626, CHIP UCD1E101MCL1GS vs UCD1E101MCS1GS
VEJ101M1ETR-0607KS Surge Components Inc Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2626, CHIP UCD1E101MCL1GS vs VEJ101M1ETR-0607KS
EMVY250ARA101MF80G Chemi-Con Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 100uF, 2826, UCD1E101MCL1GS vs EMVY250ARA101MF80G
CVH1E101MF80-R Cal-Chip Electronics Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2626, CHIP, ROHS COMPLIANT UCD1E101MCL1GS vs CVH1E101MF80-R
VEZ101M1ETR-0607LS Surge Components Inc Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2626, CHIP UCD1E101MCL1GS vs VEZ101M1ETR-0607LS
VEJ101M1ETR-0607LS Surge Components Inc Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2626, CHIP UCD1E101MCL1GS vs VEJ101M1ETR-0607LS
equivalents icon

UCD1E101MCL1GS Related Parts

UCD1E101MCL1GS Frequently Asked Questions (FAQ)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.

  • Yes, the UCD1E101MCL1GS is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm amplitude, and can be used in high-vibration environments.

  • The UCD1E101MCL1GS is designed to reduce high-frequency noise and has a self-resonant frequency of 100MHz, making it suitable for high-frequency applications.

  • Yes, the UCD1E101MCL1GS meets the requirements of the AEC-Q200 standard for automotive applications, making it suitable for use in automotive systems.

  • The shelf life of the UCD1E101MCL1GS is 2 years from the date of manufacture, when stored in a dry, cool place, away from direct sunlight.
