VIPER22ADIP Information
VIPER22ADIP by STMicroelectronics is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for VIPER22ADIP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Chip Stock | SwitchingRegulator,Current-mode,0.84A,66kHzSwitchingFreq-Max,PDIP8 | 537500 |
|
RFQ | |
|
|
Vyrian | Other Function Semiconductors | 8821 |
|
RFQ | |
|
|
Win Source Electronics | LOW POWER OFF LINE SMPS PRIMARY SWITCHER | IC OFFLINE SWIT PWM SMPS 8DIP | 525000 |
|
$0.2310 / $0.2991 | Buy Now |
US Tariff Estimator: VIPER22ADIP by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for VIPER22ADIP
VIPER22ADIP CAD Models
-

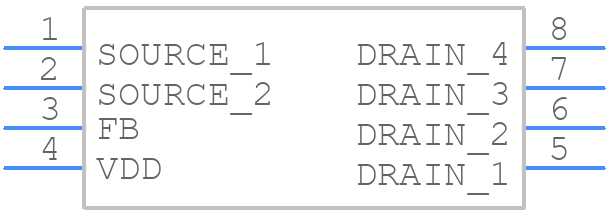

Part Symbol
-

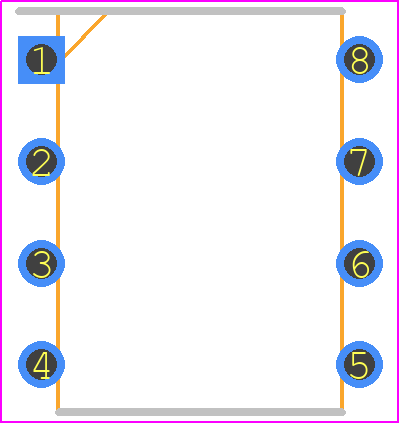

Footprint
-
