WM8994ECS/R by Cirrus Logic is a Codec.
Codecs are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for WM8994ECS/R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
WM8994ECS/RCT-ND
|
DigiKey | IC CODEC AUD HUB MULTI-CH 72WCSP Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2015 In Stock |
|
$8.1242 / $13.5500 | Buy Now |
|
DISTI #
WM8994ECS/R
|
Avnet Americas | Audio Codec 2ADC /4 DAC 24-Bit 72-Pin WCSP T/R - Tape and Reel (Alt: WM8994ECS/R) COO: Korea (the Republic of) RoHS: Compliant Min Qty: 3500 Package Multiple: 3500 Lead time: 24 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$7.8805 / $8.8000 | Buy Now |
|
DISTI #
238-WM8994ECS/R
|
Mouser Electronics | Interface - CODECs mobile multimedia low-power HiFi Codec RoHS: Compliant | 1905 |
|
$8.1300 / $13.5500 | Buy Now |
|
|
Bristol Electronics | 63 |
|
RFQ | ||
|
DISTI #
WM8994ECS/R
|
Avnet Silica | Audio Codec 2ADC 4 DAC 24Bit 72Pin WCSP TR (Alt: WM8994ECS/R) RoHS: Compliant Min Qty: 3500 Package Multiple: 3500 Lead time: 26 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Chip Stock | Tape&, Reel(TR)Active95/100StereoAudiocodec94dB950mV576mum96ksps | 189420 |
|
RFQ | |
|
|
LCSC | WCSP-72(4x4.5) CODECS RoHS | 10 |
|
$14.0691 / $14.5780 | Buy Now |
|
|
Win Source Electronics | IC CODEC AUD HUB MULTI-CH 72WCSP | 176920 |
|
$0.5143 / $0.6642 | Buy Now |
US Tariff Estimator: WM8994ECS/R by Cirrus Logic
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for WM8994ECS/R
WM8994ECS/R CAD Models
-

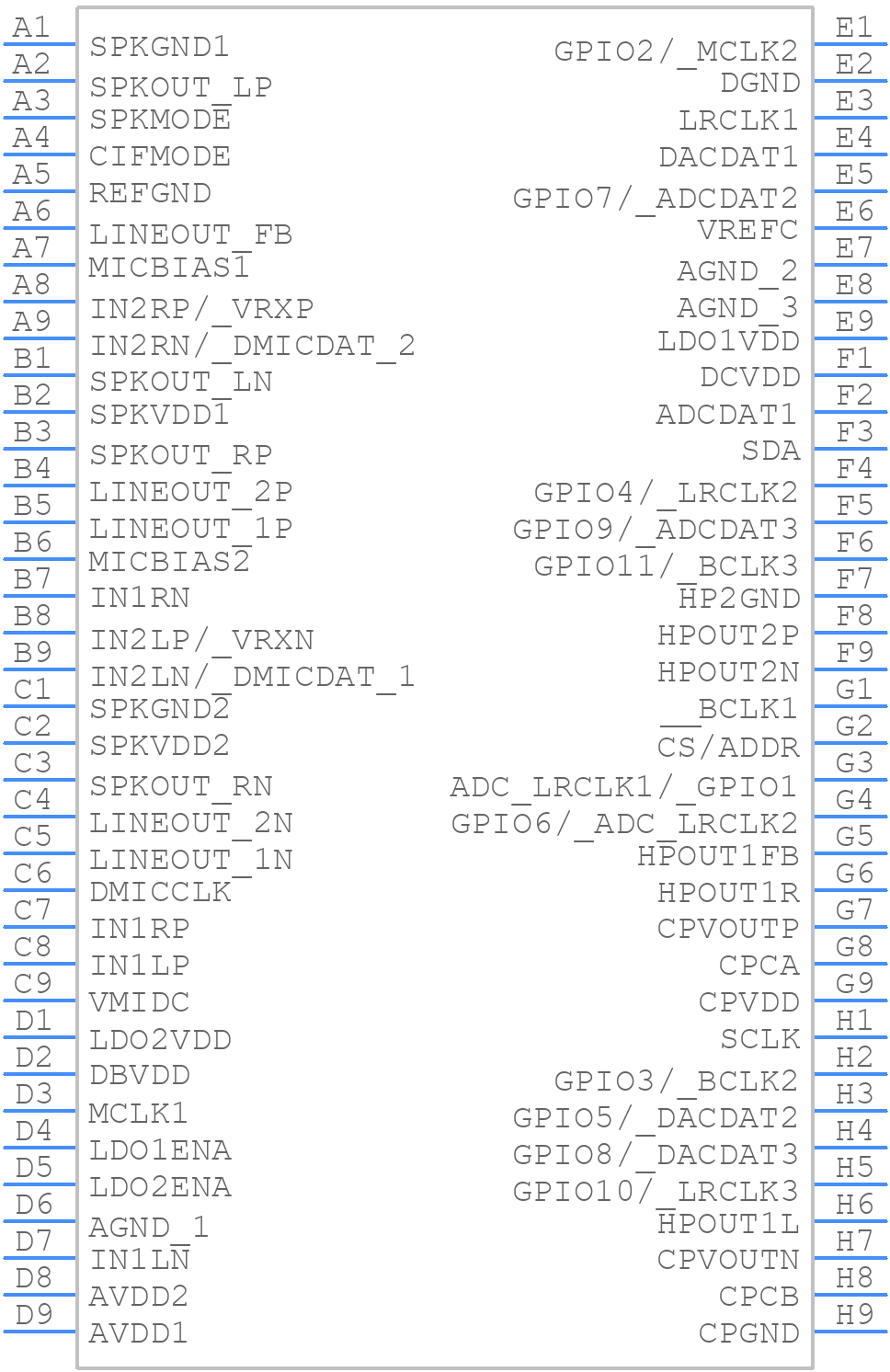

Part Symbol
-
