ADA4807-2ARMZ Information
ADA4807-2ARMZ by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for ADA4807-2ARMZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK4542
|
Newark | Op-Amp, 180Mhz, -40 To 125Deg C, Msop-8, No. Of Channels:2Channels, Gain Bandwidth Product:180Mhz, Supply Voltage Range:2.7V To 11V, Ic Case/Package:Msop, No. Of Pins:8Pins, Amplifier Type:Voltage Feedback, Product Range:- Rohs Compliant: Yes |Analog Devices ADA4807-2ARMZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 352 |
|
$2.8400 / $7.1000 | Buy Now |
|
DISTI #
505-ADA4807-2ARMZ-ND
|
DigiKey | IC VOLTAGE FEEDBACK 2 CIRC 8MSOP Min Qty: 1 Lead time: 11 Weeks Container: Tube |
1 In Stock |
|
$2.9916 / $5.3600 | Buy Now |
|
DISTI #
584-ADA4807-2ARMZ
|
Mouser Electronics | Operational Amplifiers - Op Amps 3.1 nV/?Hz, 1 mA, 180 MHz, Rail-to-Rail Input/Output Amplifier RoHS: Compliant | 577 |
|
$2.7600 / $6.8900 | Buy Now |
|
|
Analog Devices Inc | 180MHz, 3.1 nV/?Hz, 1mA, RRIO Package Multiple: 50 | 1 |
|
$2.0700 / $6.8900 | Buy Now |
|
DISTI #
ADA4807-2ARMZ
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 200 | 0 |
|
$2.8900 / $3.0100 | Buy Now |
|
|
Win Source Electronics | IC VOLTAGE FEEDBACK 2 CIRC 8MSOP / Voltage Feedback Amplifier 2 Circuit Rail-to-Rail 8-MSOP | 4600 |
|
$3.4286 / $4.4285 | Buy Now |
US Tariff Estimator: ADA4807-2ARMZ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ADA4807-2ARMZ
ADA4807-2ARMZ CAD Models
-

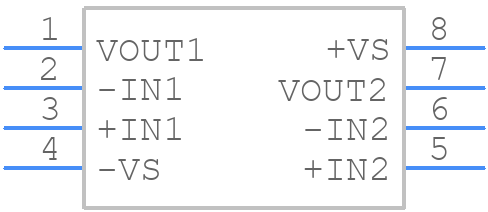

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ADA4807-2ARMZ Part Data Attributes
|
|
ADA4807-2ARMZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADA4807-2ARMZ
Analog Devices Inc
Operational Amplifier, 2 Func, 750uV Offset-Max, BIPolar, PDSO8
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Rohs Compliant, Mo-187aa, Msop-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | RM-8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 1.6 µA | |
| Bias Current-Max (IIB) @25C | 1.5 µA | |
| Common-mode Reject Ratio-Min | 96 Db | |
| Common-mode Reject Ratio-Nom | 110 Db | |
| Frequency Compensation | No | |
| Input Offset Voltage-Max | 750 µV | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 Mm | |
| Low-Bias | No | |
| Low-Offset | No | |
| Micropower | No | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -5.5 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Shape | Square | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Packing Method | Tube | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Seated Height-Max | 1.1 Mm | |
| Slew Rate-Nom | 225 V/Us | |
| Supply Current-Max | 2.2 Ma | |
| Supply Voltage Limit-Max | 5.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Gain-Min | 158489.319 | |
| Wideband | Yes | |
| Width | 3 Mm |
Alternate Parts for ADA4807-2ARMZ
This table gives cross-reference parts and alternative options found for ADA4807-2ARMZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADA4807-2ARMZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADA4807-2ACPZ-R7 | Analog Devices Inc | $3.1974 | Operational Amplifier, 2 Func, 750uV Offset-Max, BIPolar, PDSO10 | ADA4807-2ARMZ vs ADA4807-2ACPZ-R7 |
| ADA4807-2ARMZ-R7 | Analog Devices Inc | $3.2208 | Operational Amplifier, 2 Func, 750uV Offset-Max, BIPolar, PDSO8 | ADA4807-2ARMZ vs ADA4807-2ARMZ-R7 |
ADA4807-2ARMZ Frequently Asked Questions (FAQ)
-
A good PCB layout for the ADA4807-2ARMZ involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure proper biasing, make sure to connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. Also, ensure that the input common-mode voltage is within the recommended range of 1.5V to 3.5V.
-
The ADA4807-2ARMZ can drive capacitive loads up to 100pF. However, it's recommended to limit the capacitive load to 10pF to 20pF for optimal performance and stability.
-
To reduce power consumption, consider using a lower supply voltage, reducing the operating frequency, or using the device's shutdown mode when not in use. Additionally, optimizing the PCB layout and reducing the capacitive load can also help minimize power consumption.
-
The ADA4807-2ARMZ has built-in ESD protection, but it's still recommended to use external ESD protection devices, such as TVS diodes or ESD arrays, to protect the device from electrostatic discharge.
