Connectors Headers and Edge Type Connectors ASP-134488-01

ASP-134488-01
Samtec Inc
Description: Board Connector, 400 Contact(s), 10 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle,

Overview of ASP-134488-01 by Samtec Inc

Note: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
  • Distributor Offerings: ( 17 listings )
  • Number of FFF Equivalents: ( 0 crosses )
  • CAD Models: ( Available )
  • Number of Functional Equivalents: ( 0 crosses )
  • Part Data Attributes ( Available )
  • Reference Designs: ( Not Available )

Price & Stock for ASP-134488-01 by Samtec Inc

Part # Manufacturer Description Stock Price Buy
DISTI # 79X1313
Newark Conn, Vita 57 Fmc, Header, 400Pos, 10Row, Mezzanine Connector Type:Array, Male, Pitch Spacing:1.27Mm, No. Of Rows:10Rows, No. Of Contacts:400Contacts, Connector Mounting:Surface Mount, Contact Material:Copper Alloy, Gender:Header Rohs Compliant: Yes |Samtec ASP-134488-01 Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 2115
  • 1 $33.3200
  • 10 $31.3200
  • 25 $28.8000
  • 50 $27.9700
  • 100 $27.1300
  • 250 $23.2800
  • 500 $22.4400
$22.4400 / $33.3200 Buy Now
DISTI # SAM8730-ND
DigiKey CONN ARRAY PLUG 400POS SMD GOLD Min Qty: 1 Lead time: 6 Weeks Container: Strip 1333
In Stock
  • 1 $31.7500
  • 10 $27.7990
  • 25 $26.5980
  • 50 $25.7398
  • 100 $24.8819
  • 250 $23.5091
$23.5091 / $31.7500 Buy Now
DISTI # 79X1313
Avnet Americas Conn Stacking Header 400 POS 10mm Stack Height 1.27mm Solder ST Surface Mount - Bulk (Alt: 79X1313) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 798 Partner Stock
RFQ
DISTI # ASP-134488-01
Avnet Americas Conn Stacking Header 400 POS 10mm Stack Height 1.27mm Solder ST Surface Mount (Alt: ASP-134488-01) RoHS: Compliant Min Qty: 200 Package Multiple: 1 Lead time: 2 Weeks, 4 Days 62 Factory Stock
RFQ
DISTI # 200-ASP-134488-01
Mouser Electronics Board to Board & Mezzanine Connectors "ASP" RoHS: Compliant 6005
  • 1 $36.5400
  • 10 $33.8400
  • 25 $31.1300
  • 50 $27.0700
  • 100 $22.6600
$22.6600 / $36.5400 Buy Now
Onlinecomponents.com Board-To-Board Connector - 1.27 mm - 400 Contacts - Header - Surface Mount. RoHS: Compliant 616 In Stock
600 On Order
2 Factory Stock
  • 1 $36.0200
  • 5 $31.4700
  • 10 $27.2500
  • 25 $25.9500
  • 50 $24.2600
  • 200 $21.3900
  • 400 $19.9500
$19.9500 / $36.0200 Buy Now
Bristol Electronics   7
RFQ
Bristol Electronics   1
RFQ
Quest Components 400 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT 15
  • 1 $22.1550
  • 12 $21.0473
$21.0473 / $22.1550 Buy Now
Quest Components 400 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT 1
  • 1 $13.9360
$13.9360 Buy Now
Quest Components 400 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT 1
  • 1 $22.1000
$22.1000 Buy Now
Powell Electronics Connector Min Qty: 1 82
  • 1 $36.5400
  • 10 $33.8400
  • 25 $31.1300
  • 50 $27.0700
  • 100 $22.6600
$22.6600 / $36.5400 Buy Now
DISTI # 000000000002500346
Sager Board to Board & Mezzanine Connectors ASP Min Qty: 1 202
  • 1 $36.5400
  • 10 $33.8400
  • 25 $31.1300
  • 50 $27.0700
  • 100 $22.6600
  • 250 $21.1800
$21.1800 / $36.5400 Buy Now
DISTI # ASP-134488-01
Avnet Asia Conn Stacking Header 400 POS 10mm Stack Height 1.27mm Solder ST Surface Mount (Alt: ASP-134488-01) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks, 0 Days 0
RFQ
LCSC SMDP1.27mm Board-to-Board and Backplane Connector ROHS 79
  • 1 $19.8744
  • 10 $19.0762
  • 30 $17.6935
  • 100 $16.4880
$16.4880 / $19.8744 Buy Now
Master Electronics Board-To-Board Connector - 1.27 mm - 400 Contacts - Header - Surface Mount. RoHS: Compliant 616 In Stock
600 On Order
2 Factory Stock
  • 1 $36.0200
  • 5 $31.4700
  • 10 $27.2500
  • 25 $25.9500
  • 50 $24.2600
  • 200 $21.3900
  • 400 $19.9500
$19.9500 / $36.0200 Buy Now
Win Source Electronics Conn Array Terminal HDR 400 POS 1.27mm Solder ST Top Entry SMD T/R / CONN SNGL-END ARRAY MALE 400POS 8000
  • 2 $33.8550
  • 4 $27.7780
  • 6 $26.9100
  • 8 $26.0420
  • 10 $25.1740
  • 14 $22.5700
$22.5700 / $33.8550 Buy Now

CAD Models for ASP-134488-01 by Samtec Inc
You need to Sign In or Sign Up to download CAD models.

  • Part Symbol
    Part Symbol

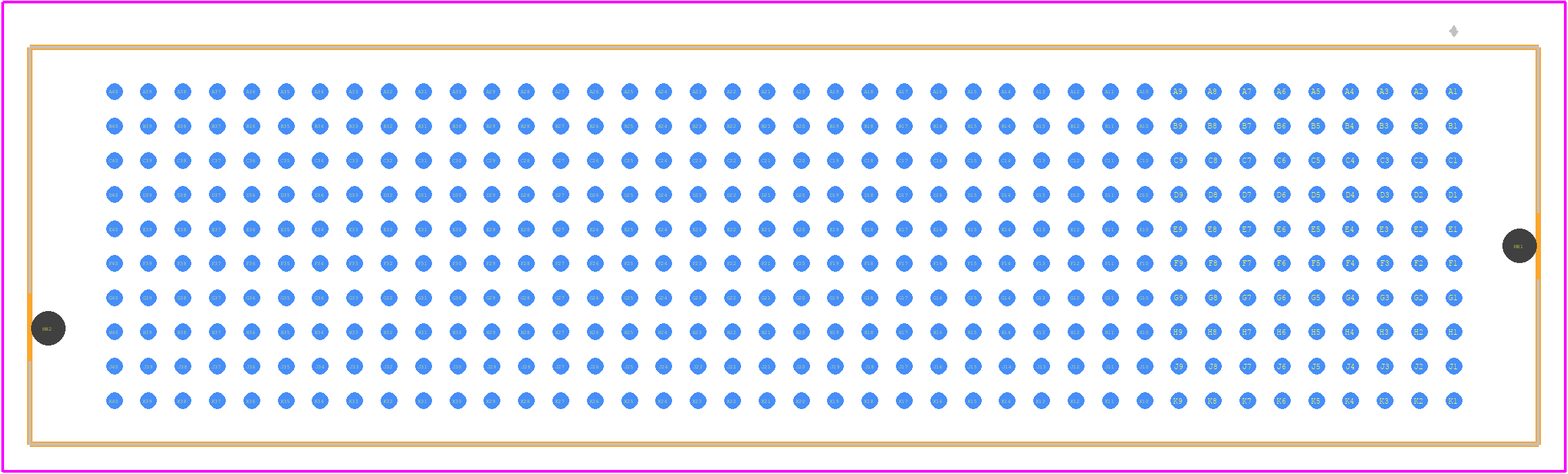

  • Footprint
    footprint
  • 3D Model
    3D Model
25 Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

Part Data Attributes for ASP-134488-01 by Samtec Inc
Parametric Data

ASP-134488-01
Samtec Inc
Buy Now
-
-
Rohs Code
Yes
Part Life Cycle Code
Active
Ihs Manufacturer
SAMTEC INC
Reach Compliance Code
compliant
Samacsys Manufacturer
SAMTEC
Board Mounting Option
PEG
Body Breadth
0.578 inch
Body Depth
0.24 inch
Body Length
2.196 inch
Connector Type
BOARD CONNECTOR
Contact Finish Mating
GOLD (30) OVER NICKEL (50)
Contact Finish Termination
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender
MALE
Contact Material
NOT SPECIFIED
Contact Pattern
RECTANGULAR
Contact Style
CENTRONIC
DIN Conformance
NO
Filter Feature
NO
IEC Conformance
NO
Insulator Material
LIQUID CRYSTAL POLYMER
JESD-609 Code
e3
MIL Conformance
NO
Mating Contact Pitch
0.05 inch
Mixed Contacts
NO
Mounting Option 1
LOCKING
Mounting Style
STRAIGHT
Mounting Type
BOARD
Number Of Connectors
ONE
Number Of PCB Rows
10
Number of Rows Loaded
10
Operating Temperature-Max
125 °C
Operating Temperature-Min
-55 °C
Option
GENERAL PURPOSE
PCB Contact Pattern
RECTANGULAR
PCB Contact Row Spacing
1.27 mm
Plating Thickness
30u inch
Polarization Key
POLARIZED HOUSING
Terminal Pitch
1.27 mm
Termination Type
SURFACE MOUNT
Total Number of Contacts
400
