Microcontrollers and Processors / Microcontrollers / ATMEGA16A-AUR
Datasheets
ATMEGA16A-AUR by:

IC MCU 8BIT 16KB FLASH 44TQFP

Part Details for ATMEGA16A-AUR by Microchip Technology Inc

Results Overview of ATMEGA16A-AUR by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

ATMEGA16A-AUR Information

ATMEGA16A-AUR by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for ATMEGA16A-AUR

Part # Distributor Description Stock Price Buy
DISTI # 41AH8325
Newark Mcu, 8Bit, 16Mhz, Tqfp-44, Product Range:Avr Atmega Family Atmega16 Series Microcontrollers, Device Core:Avr, Operating Frequency Max:16Mhz, Program Memory Size:16Kb, No. Of Pins:44Pins, Ic Case/Package:Tqfp, No. Of I/O S:32I/O S Rohs Compliant: Yes |Microchip ATMEGA16A-AUR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 672
  • 1 $3.9300
  • 10 $3.7600
  • 25 $3.6000
  • 50 $3.4400
$3.4400 / $3.9300 Buy Now
DISTI # 68T2578
Newark 16Mhz, Tqfp, Ind. Temp, Green, T&r 44 Tqfp 10X10X1Mm T/R Rohs Compliant: Yes |Microchip ATMEGA16A-AUR RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 2,000 $3.2600
$3.2600 Buy Now
DISTI # ATMEGA16A-AUR
Avnet Americas MCU 8-bit ATmega AVR RISC 16KB Flash 3.3V/5V 44-Pin TQFP T/R - Tape and Reel (Alt: ATMEGA16A-AUR) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 4 Weeks, 0 Days Container: Reel 0
  • 2,000 $3.2723
  • 4,000 $3.2453
  • 8,000 $3.2184
  • 12,000 $3.1916
  • 16,000 $3.1649
$3.1649 / $3.2723 Buy Now
DISTI # ATMEGA16A-AUR
Microchip Technology Inc 16MHZ, TQFP, IND. TEMP, GREEN, T&R, TQFP, Projected EOL: 2039-11-01 RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Reel 212392

COO: Thailand
  • 1 $3.7800
  • 25 $3.4600
  • 100 $3.1600
  • 1,000 $2.9000
  • 5,000 $2.7400
$2.7400 / $3.7800 Buy Now
NAC 16MHZ, TQFP, IND. TEMP, GREEN, T&R - Package: 44 TQFP 10x10x1mm T/R RoHS: Compliant Min Qty: 1 Package Multiple: 2000 166000
  • 1 $3.9400
  • 100 $3.5700
  • 500 $3.3500
  • 1,000 $3.2700
$3.2700 / $3.9400 Buy Now
DISTI # ATMEGA16A-AUR
Avnet Silica MCU 8-bit ATmega AVR RISC 16KB Flash 3.3V/5V 44-Pin TQFP T/R (Alt: ATMEGA16A-AUR) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # ATMEGA16A-AUR
EBV Elektronik MCU 8-bit ATmega AVR RISC 16KB Flash 3.3V/5V 44-Pin TQFP T/R (Alt: ATMEGA16A-AUR) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 5 Weeks, 0 Days EBV - 16000
Buy Now
LCSC AVR 16MHz TQFP-44(10x10) Microcontrollers (MCU/MPU/SOC) ROHS 5
  • 1 $5.0680
  • 10 $4.9470
  • 30 $4.8654
  • 100 $4.7853
$4.7853 / $5.0680 Buy Now

Part Details for ATMEGA16A-AUR

ATMEGA16A-AUR CAD Models

  • Part Symbol

    Part Symbol

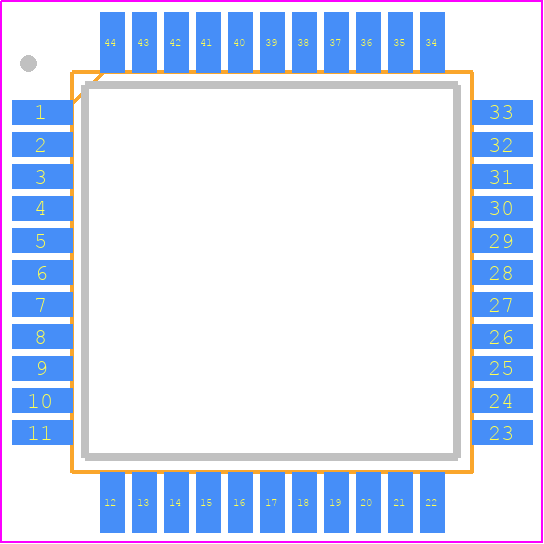

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ATMEGA16A-AUR Part Data Attributes

Parametric Data
ATMEGA16A-AUR Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
ATMEGA16A-AUR Microchip Technology Inc IC MCU 8BIT 16KB FLASH 44TQFP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description 10 X 10 MM, 1 MM HEIGHT, 0.80 MM PITCH, GREEN, PLASTIC, MS-026ACB, TQFP-44
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 5 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 8 MHZ
Address Bus Width
Bit Size 8
Boundary Scan YES
CPU Family AVR RISC
Clock Frequency-Max 16 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQFP-G44
JESD-609 Code e3
Length 10 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of External Interrupts 3
Number of I/O Lines 32
Number of Serial I/Os 1
Number of Terminals 44
Number of Timers 3
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code TQFP
Package Equivalence Code TQFP44,.39SQ,31
Package Shape SQUARE
Package Style FLATPACK, THIN PROFILE
Qualification Status Not Qualified
RAM (bytes) 1024
ROM (words) 16384
ROM Programmability FLASH
Seated Height-Max 1.2 mm
Speed 16 MHz
Supply Current-Max 15 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 5 V
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position QUAD
Width 10 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for ATMEGA16A-AUR

This table gives cross-reference parts and alternative options found for ATMEGA16A-AUR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ATMEGA16A-AUR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ATMEGA16A-AU Microchip Technology Inc $3.7886 IC MCU 8BIT 16KB FLASH 44TQFP ATMEGA16A-AUR vs ATMEGA16A-AU

ATMEGA16A-AUR Related Parts

ATMEGA16A-AUR Frequently Asked Questions (FAQ)

  • The ATMEGA16A-AUR can operate at a maximum clock frequency of 16 MHz.

  • The ATMEGA16A-AUR consumes approximately 0.1 μA in sleep mode.

  • Yes, the ATMEGA16A-AUR is rated for operation in temperatures ranging from -40°C to 85°C, making it suitable for use in harsh environments.

  • The ATMEGA16A-AUR has 16 KB of flash memory available for program storage.

  • Yes, the ATMEGA16A-AUR has 512 bytes of built-in EEPROM for data storage.
