Connectors / Headers and Edge Type Connectors / B2P-VH-FB-B(LF)(SN)
Datasheets
B2P-VH-FB-B(LF)(SN) by: JST Manufacturing

Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

Part Details for B2P-VH-FB-B(LF)(SN) by JST Manufacturing

Overview of B2P-VH-FB-B(LF)(SN) by JST Manufacturing

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

Price & Stock for B2P-VH-FB-B(LF)(SN)

Part # Distributor Description Stock Price Buy
DISTI # JSTB2P-VH-FB-B(LF)(SN)
Heilind Electronics ROHS COMPLIANT Americas - 177534 in Stock
  • 1 $0.1462
  • 1,400 $0.1218
  • 3,500 $0.1179
  • 6,900 $0.1160
  • 13,700 $0.1142
$0.1142 / $0.1462 Buy Now
Bristol Electronics   19021
RFQ
Bristol Electronics   150
RFQ
DISTI # JSTB2P-VH-FB-B(LF)(SN)
Interstate Connecting Components ROHS COMPLIANT 35507
  • 1 $0.1462
  • 1,400 $0.1218
  • 3,500 $0.1179
  • 6,900 $0.1160
  • 13,700 $0.1142
$0.1142 / $0.1462 Buy Now
DISTI # SMC-B2P-VH-FB-B(LF)(SN)
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 85626
RFQ
DISTI # C1S404000129945
Chip1Stop Conn Shrouded Header HDR 2 POS 3.96mm Solder ST Thru-Hole Box pbFree: Yes Container: Bulk 13672
  • 10 $0.1950
  • 50 $0.1380
  • 100 $0.1300
  • 200 $0.1210
  • 500 $0.1060
  • 1,000 $0.1020
  • 2,000 $0.0967
  • 4,000 $0.0916
$0.0916 / $0.1950 Buy Now
CoreStaff Co Ltd RoHS2(Ship within 1day) - D/C 2023 Date Code: 2023 4250
  • 1 $0.6510
  • 20 $0.3880
  • 50 $0.2100
  • 100 $0.1500
  • 300 $0.1110
  • 500 $0.1030
$0.1030 / $0.6510 Buy Now
LCSC 1x2P 2P VH Tin 2 -25+85 10A 1 3.96mm Copper alloy Direct Insert PluginP3.96mm Wire To Board Connector ROHS 588
  • 5 $0.1385
  • 50 $0.1118
  • 250 $0.1004
  • 500 $0.0861
  • 2,500 $0.0798
  • 5,000 $0.0759
$0.0759 / $0.1385 Buy Now
New Advantage Corporation VH Series 2 Position 3.96 mm Pitch Disconnectable Crimp Style Shrouded Header RoHS: Compliant Min Qty: 1 Package Multiple: 250 78000
  • 1,000 $0.1571
  • 78,000 $0.1467
$0.1467 / $0.1571 Buy Now
Win Source Electronics   17511
  • 370 $0.1360
  • 895 $0.1120
  • 1,390 $0.1080
  • 1,905 $0.1050
  • 2,480 $0.1010
  • 3,300 $0.0910
$0.0910 / $0.1360 Buy Now

Part Details for B2P-VH-FB-B(LF)(SN)

B2P-VH-FB-B(LF)(SN) CAD Models

  • Part Symbol

    Part Symbol

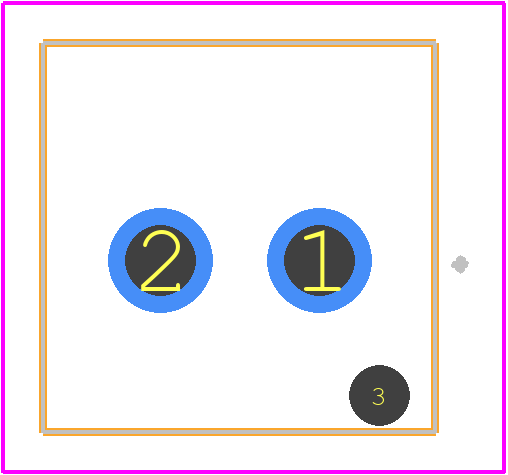

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

B2P-VH-FB-B(LF)(SN) Part Data Attributes

Parametric Data
B2P-VH-FB-B(LF)(SN) JST Manufacturing
Buy Now Datasheet
Compare Parts:
B2P-VH-FB-B(LF)(SN) JST Manufacturing Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer J S T MFG CO LTD
Package Description ROHS COMPLIANT
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer JST (JAPAN SOLDERLESS TERMINALS)
Additional Feature SHROUDED
Body Breadth 0.382 inch
Body Depth 0.433 inch
Body Length 0.386 inch
Connector Type BOARD CONNECTOR
Contact Finish Mating TIN OVER COPPER
Contact Finish Termination Tin (Sn)
Contact Gender MALE
Contact Material BRASS
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulator Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.156 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 1
Number of Rows Loaded 1
Option GENERAL PURPOSE
Terminal Pitch 3.96 mm
Termination Type SOLDER
Total Number of Contacts 2
UL Flammability Code 94V-0

Alternate Parts for B2P-VH-FB-B(LF)(SN)

This table gives cross-reference parts and alternative options found for B2P-VH-FB-B(LF)(SN). The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of B2P-VH-FB-B(LF)(SN), but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
B2P-VH-FB-B JST Manufacturing Check for Price Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal B2P-VH-FB-B(LF)(SN) vs B2P-VH-FB-B
Part Number Manufacturer Composite Price Description Compare
29-11-0022 Molex $0.0463 Board Connector, 2 Contact(s), 1 Row(s), Male, 0.098 inch Pitch, Crimp Terminal, Guide Slot, Plug, B2P-VH-FB-B(LF)(SN) vs 29-11-0022
510470200 Molex Check for Price Board Connector, 2 Contact(s), 1 Row(s), Male, 0.049 inch Pitch, Crimp Terminal, Locking, Plug, B2P-VH-FB-B(LF)(SN) vs 510470200
53402350 W+P Products GmbH Check for Price Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle B2P-VH-FB-B(LF)(SN) vs 53402350
