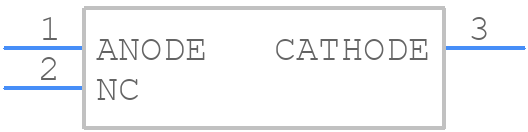

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAS16,215 by Nexperia
Overview of BAS16,215 by Nexperia
- Distributor Offerings:
- Number of FFF Equivalents:
- CAD Models:
- Number of Functional Equivalents:
- Part Data Attributes
- Reference Designs:
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for BAS16,215
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
97W1815
|
Newark | Diode, Small Signal, 100V, To-236Ab, Diode Configuration:Single, Repetitive Peak Reverse Voltage:100V, Average Forward Current:215Ma, Forward Voltage Max:1.25V, Reverse Recovery Time:4Ns, Forward Surge Current:4A, No. Of Pins:3Pins Rohs Compliant: Yes |Nexperia BAS16,215 Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 1335000 |
|
$0.0190 / $0.0240 | Buy Now |
|
DISTI #
35M2838
|
Newark | Diode, Small Signal, 100V, To-236Ab, Diode Configuration:Single, Repetitive Peak Reverse Voltage:100V, Average Forward Current:215Ma, Forward Voltage Max:1.25V, Reverse Recovery Time:4Ns, Forward Surge Current:4A, No. Of Pins:3Pins Rohs Compliant: Yes |Nexperia BAS16,215 Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.0280 / $0.1270 | Buy Now |
|
DISTI #
1727-2887-1-ND
|
DigiKey | DIODE GP 100V 215MA TO236AB Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
384670 In Stock |
|
$0.0114 / $0.1200 | Buy Now |
|
DISTI #
BAS16,215
|
Avnet Americas | Diode Switching 100V 0.215A 3-Pin TO-236AB T/R - Tape and Reel (Alt: BAS16,215) RoHS: Not Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel | 546000 |
|
$0.0072 / $0.0086 | Buy Now |
|
DISTI #
BAS16,215
|
Avnet Americas | Diode Switching 100V 0.215A 3-Pin TO-236AB T/R - Tape and Reel (Alt: BAS16,215) RoHS: Compliant Min Qty: 87000 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.0072 / $0.0086 | Buy Now |
|
DISTI #
771-BAS16-T/R
|
Mouser Electronics | Diodes - General Purpose, Power, Switching BAS16/SOT23/TO-236AB RoHS: Compliant | 415795 |
|
$0.0110 / $0.1200 | Buy Now |
|
|
Future Electronics | BAS16 Series 100 V 215 mA Surface Mount High Speed Switching Diode - SOT-23 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Container: Reel | 2547000Reel |
|
$0.0090 / $0.0109 | Buy Now |
|
|
Future Electronics | BAS16 Series 100 V 215 mA Surface Mount High Speed Switching Diode - SOT-23 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Container: Reel | 2046000Reel |
|
$0.0090 / $0.0109 | Buy Now |
|
|
Future Electronics | BAS16 Series 100 V 215 mA Surface Mount High Speed Switching Diode - SOT-23 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Container: Cut Tape/Mini-Reel | 5500Cut Tape/Mini-Reel |
|
$0.0239 / $0.1000 | Buy Now |
|
|
Future Electronics | BAS16 Series 100 V 215 mA Surface Mount High Speed Switching Diode - SOT-23 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Container: Reel | 0Reel |
|
$0.0090 / $0.0109 | Buy Now |
Part Details for BAS16,215
BAS16,215 CAD Models
BAS16,215 Part Data Attributes
|
|
BAS16,215
Nexperia
Buy Now
Datasheet
|
Compare Parts:
BAS16,215
Nexperia
BAS16 - High-speed switching diode@en-us TO-236 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | TO-236 | |
| Package Description | SOT-23, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT23 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Samacsys Manufacturer | Nexperia | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.25 V | |
| JEDEC-95 Code | TO-236AB | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 4 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 0.215 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.25 W | |
| Reference Standard | IEC-60134 | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Current-Max | 0.5 µA | |
| Reverse Recovery Time-Max | 0.004 µs | |
| Reverse Test Voltage | 80 V | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for BAS16,215
This table gives cross-reference parts and alternative options found for BAS16,215. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BAS16,215, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| BAS16 | Rectifier Diode, 1 Element, 0.215A, 100V V(RRM), Silicon, TO-236AB | Nexperia | BAS16,215 vs BAS16 |
| BAS16-Q | Rectifier Diode, 1 Phase, 1 Element, 0.215A, 100V V(RRM), Silicon | Nexperia | BAS16,215 vs BAS16-Q |
