Diodes / Rectifier Diodes / BAT46WS-TP
Datasheets
BAT46WS-TP by: Micro Commercial Components

Rectifier Diode,

Part Details for BAT46WS-TP by Micro Commercial Components

Results Overview of BAT46WS-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy

BAT46WS-TP Information

BAT46WS-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for BAT46WS-TP

Part # Distributor Description Stock Price Buy
DISTI # BAT46WS-TP
TME Diode: Schottky switching, SOD323, SMD, 100V, 150mA, reel,tape Min Qty: 10 0
  • 10 $0.0800
  • 50 $0.0491
  • 250 $0.0434
  • 1,000 $0.0390
  • 3,000 $0.0364
$0.0364 / $0.0800 RFQ
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 3000 33000
  • 6,000 $0.0370
  • 33,000 $0.0345
$0.0345 / $0.0370 Buy Now
Vyrian Diodes 31589
RFQ

Part Details for BAT46WS-TP

BAT46WS-TP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

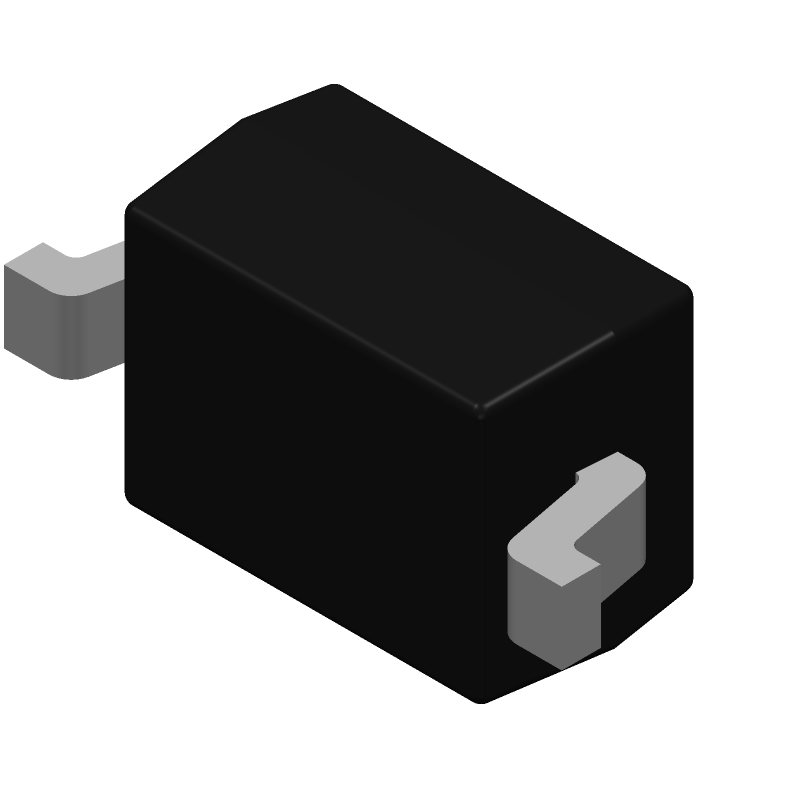

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

BAT46WS-TP Part Data Attributes

Parametric Data
BAT46WS-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
BAT46WS-TP Micro Commercial Components Rectifier Diode,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.10.00.70
Samacsys Manufacturer MCC
Application GENERAL PURPOSE
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 1 V
JESD-30 Code R-PDSO-G2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 0.75 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Output Current-Max 0.15 A
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Power Dissipation-Max 0.2 W
Rep Pk Reverse Voltage-Max 100 V
Reverse Current-Max 0.5 µA
Surface Mount YES
Technology SCHOTTKY
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 10

Alternate Parts for BAT46WS-TP

This table gives cross-reference parts and alternative options found for BAT46WS-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BAT46WS-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TS4148RZ Taiwan Semiconductor Check for Price Rectifier Diode, 1 Element, 0.15A, 100V V(RRM), Silicon, ROHS COMPLIANT, 0603, 2 PIN BAT46WS-TP vs TS4148RZ
BAV16WS Formosa Microsemi Co Ltd Check for Price Rectifier Diode, 1 Element, 0.15A, 100V V(RRM), Silicon, PLASTIC PACKAGE-2 BAT46WS-TP vs BAV16WS
BAR46FILM STMicroelectronics Check for Price 100 V, 150 mA General purpose Signal Schottky Diode BAT46WS-TP vs BAR46FILM
1N4148RB New Jersey Semiconductor Products Inc Check for Price Diode Small Signal Switching 100V 0.15A 2-Pin DO-35 T/R BAT46WS-TP vs 1N4148RB
1N914BWSR9G Taiwan Semiconductor Check for Price Rectifier Diode, BAT46WS-TP vs 1N914BWSR9G
1N4448WRP Taiwan Semiconductor Check for Price Rectifier Diode, 1 Element, 0.15A, 100V V(RRM), Silicon, BAT46WS-TP vs 1N4448WRP
1N4149 NTE Electronics Inc Check for Price Rectifier Diode, BAT46WS-TP vs 1N4149
BAT46WS-TP-HF Micro Commercial Components Check for Price Rectifier Diode, BAT46WS-TP vs BAT46WS-TP-HF
MMBD4148TS_R2_10001 PanJit Semiconductor Check for Price Rectifier Diode, 1 Element, 0.15A, 100V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-2 BAT46WS-TP vs MMBD4148TS_R2_10001
1N4148GW6_S1_00001 PanJit Semiconductor Check for Price Rectifier Diode, 1 Element, 0.15A, 100V V(RRM), Silicon, BAT46WS-TP vs 1N4148GW6_S1_00001

BAT46WS-TP Related Parts

BAT46WS-TP Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the BAT46WS-TP is between 250°C to 260°C for a maximum of 10 seconds.

  • Yes, the BAT46WS-TP is a high-speed switching diode with a fast recovery time, making it suitable for high-frequency applications up to 1 GHz.

  • The maximum allowable voltage for the BAT46WS-TP is 50V, and it is not recommended to exceed this voltage to prevent damage to the diode.

  • The BAT46WS-TP is rated for operation up to 150°C, but it is recommended to derate the voltage and current ratings at higher temperatures to ensure reliable operation.

  • Yes, the BAT46WS-TP diode is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
