Part Details for BAV99-QR by Nexperia
Overview of BAV99-QR by Nexperia
- Distributor Offerings:
- Number of FFF Equivalents:
- CAD Models:
- Number of Functional Equivalents:
- Part Data Attributes
- Reference Designs:
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
Price & Stock for BAV99-QR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1727-BAV99-QRCT-ND
|
DigiKey | DIODE ARR GP 100V 215MA TO236AB Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
47968 In Stock |
|
$0.0143 / $0.1500 | Buy Now |
|
DISTI #
BAV99-QR
|
Avnet Americas | Diode High Speed Switching 100V 215mA 3-Pin SOT-23 T/R - Tape and Reel (Alt: BAV99-QR) RoHS: Compliant Min Qty: 75000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.0086 / $0.0102 | Buy Now |
|
DISTI #
BAV99-QR
|
Avnet Americas | Diode High Speed Switching 100V 215mA 3-Pin SOT-23 T/R - Tape and Reel (Alt: BAV99-QR) RoHS: Compliant Min Qty: 75000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.0086 / $0.0102 | Buy Now |
|
DISTI #
771-BAV99-QR
|
Mouser Electronics | Diodes - General Purpose, Power, Switching BAV99-Q/SOT23/TO-236AB RoHS: Compliant | 16868 |
|
$0.0120 / $0.1500 | Buy Now |
|
|
Future Electronics | Diode Array 1 Pair Series Connection Standard 215mA (DC) Surface Mount TO-236-3, RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Container: Reel | 282000Reel |
|
$0.0118 / $0.0138 | Buy Now |
|
|
Future Electronics | Diode Array 1 Pair Series Connection Standard 215mA (DC) Surface Mount TO-236-3, RoHS: Compliant pbFree: Yes Min Qty: 57000 Package Multiple: 3000 Container: Reel | 0Reel |
|
$0.0118 / $0.0138 | Buy Now |
|
DISTI #
BAV99-QR
|
TTI | Diodes - General Purpose, Power, Switching BAV99-Q/SOT23/TO-236AB RoHS: Compliant pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel |
Americas - 66000 In Stock |
|
$0.0093 / $0.0112 | Buy Now |
|
DISTI #
BAV99-QR
|
Avnet Americas | Diode High Speed Switching 100V 215mA 3-Pin SOT-23 T/R - Tape and Reel (Alt: BAV99-QR) RoHS: Compliant Min Qty: 75000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.0086 / $0.0102 | Buy Now |
|
DISTI #
BAV99-QR
|
Avnet Americas | Diode High Speed Switching 100V 215mA 3-Pin SOT-23 T/R - Tape and Reel (Alt: BAV99-QR) RoHS: Compliant Min Qty: 75000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.0086 / $0.0102 | Buy Now |
|
DISTI #
BAV99-QR
|
TME | Diode: switching, SMD, 100V, 215mA, 4ns, SOT23, Ufmax: 1.25V, Ifsm: 4A Min Qty: 25 | 1475 |
|
$0.0165 / $0.0402 | Buy Now |
Part Details for BAV99-QR

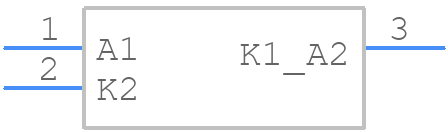

BAV99-QR CAD Models
BAV99-QR Part Data Attributes
|
|
BAV99-QR
Nexperia
Buy Now
Datasheet
|
Compare Parts:
BAV99-QR
Nexperia
BAV99-Q - High-speed switching diode@en-us TO-236 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | TO-236 | |
| Package Description | SOT-23, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT23 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | LOW LEAKAGE CURRENT | |
| Application | GENERAL PURPOSE | |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.25 V | |
| JEDEC-95 Code | TO-236AB | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 4 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 0.215 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.25 W | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Current-Max | 0.5 µA | |
| Reverse Recovery Time-Max | 0.004 µs | |
| Reverse Test Voltage | 80 V | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
