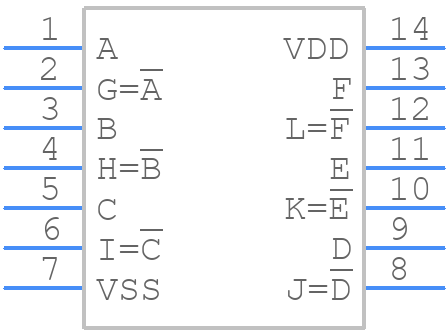

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD4069UBM by Texas Instruments
Results Overview of CD4069UBM by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CD4069UBM Information
CD4069UBM by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CD4069UBM | Texas Instruments | CMOS Hex Inverter 14-SOIC -55 to 125 | |
| CD4069UBM96 | Texas Instruments | CMOS Hex Inverter 14-SOIC -55 to 125 |
Price & Stock for CD4069UBM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
77AH4450
|
Newark | Ic, Sm, Logic, 4000, Inverter, Logic Family/Base Number:Cd4069, Logic Type:Inverter, Output Current:6.8Ma, No. Of Inputs:6, Supply Voltage Min:3V, Supply Voltage Max:18V, Logic Case Style:Soic, No. Of Pins:14Pins, Logic Ic Rohs Compliant: Yes |Texas Instruments CD4069UBM RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 6165 |
|
$1.3400 | Buy Now |
|
|
Bristol Electronics | Min Qty: 7 | 380 |
|
$0.2250 / $0.7500 | Buy Now |
|
|
Rochester Electronics | CD4069UB CMOS Hex Inverter RoHS: Compliant Status: Active Min Qty: 1 | 36992 |
|
$0.4137 / $0.6672 | Buy Now |
|
DISTI #
CD4069UBM
|
TME | IC: digital, NOT, Ch: 6, CMOS, SMD, SO14, CD4000 Min Qty: 1 | 1189 |
|
$0.5090 / $1.1760 | Buy Now |
|
|
Ameya Holding Limited | IC: digital, hex,inverter, Channels: 6, CMOS, SMD, SO14 | 192 |
|
RFQ | |
|
|
ComSIT USA | Electronic Component RoHS: Not Compliant |
|
|
RFQ | |
|
|
Win Source Electronics | IC HEX INVERTER 14SOIC | 116972 |
|
$0.1213 / $0.1559 | Buy Now |
Part Details for CD4069UBM
CD4069UBM CAD Models
CD4069UBM Part Data Attributes
|
|
CD4069UBM
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD4069UBM
Texas Instruments
6-ch, 3-V to 18-V inverters 14-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | 4000/14000/40000 | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | INVERTER | |
| Max I(ol) | 0.0068 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 6 | |
| Number of Inputs | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.15 mA | |
| Prop. Delay@Nom-Sup | 110 ns | |
| Propagation Delay (tpd) | 110 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for CD4069UBM
This table gives cross-reference parts and alternative options found for CD4069UBM. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD4069UBM, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 933373000653 | NXP Semiconductors | Check for Price | IC 4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDSO14, PLASTIC, SOT-108-1, SO-14, Gate | CD4069UBM vs 933373000653 |
| HEC4069UBT,112 | NXP Semiconductors | Check for Price | IC 4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDSO14, PLASTIC, SOT-108-1, SO-14, Gate | CD4069UBM vs HEC4069UBT,112 |
| MC14069UBDTR2 | Motorola Mobility LLC | Check for Price | 4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDSO14, PLASTIC, SOIC-14 | CD4069UBM vs MC14069UBDTR2 |
| CD4069UBCM | Texas Instruments | Check for Price | 4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDSO14, PLASTIC, SO-14 | CD4069UBM vs CD4069UBCM |
| HEC4069UBT,112 | Nexperia | Check for Price | Inverter, 4000/14000/40000 Series, 6-Func, 1-Input, CMOS, PDSO14 | CD4069UBM vs HEC4069UBT,112 |
| BU4069UBF | ROHM Semiconductor | Check for Price | Inverter, 4000/14000/40000 Series, 6-Func, 1-Input, CMOS, PDSO14, ROHS COMPLIANT, SOP-14 | CD4069UBM vs BU4069UBF |
| BU4069UBF-E1 | ROHM Semiconductor | Check for Price | Inverter, 4000/14000/40000 Series, 6-Func, 1-Input, CMOS, PDSO14, SOP-14 | CD4069UBM vs BU4069UBF-E1 |
CD4069UBM Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the CD4069UBM is typically around 10 MHz, but it can vary depending on the specific application and operating conditions.
-
To ensure proper biasing, connect the VDD pin to a stable voltage source between 3V and 15V, and the VSS pin to ground. Also, ensure that the input signals are within the recommended voltage range.
-
The maximum power dissipation of the CD4069UBM is typically around 500 mW, but it can vary depending on the operating conditions and package type.
-
To handle thermal considerations, ensure good thermal conductivity between the device and the PCB, and consider using a heat sink if the device is expected to operate at high temperatures or high power levels.
-
For optimal performance, keep the input and output traces short and away from noise sources, and use a solid ground plane to reduce noise and electromagnetic interference.
