Part Details for CD74ACT139M96 by Texas Instruments
Results Overview of CD74ACT139M96 by Texas Instruments
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (10 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Transportation and Logistics
Telecommunications
CD74ACT139M96 Information
CD74ACT139M96 by Texas Instruments is a Decoder/Driver.
Decoder/Drivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CD74ACT139M96 | Texas Instruments | Dual 2-to-4 Line Decoder/Demultiplexer 16-SOIC -55 to 125 |
Price & Stock for CD74ACT139M96
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
85977434
|
Verical | Decoder/Demultiplexer Dual 2-to-4 16-Pin SOIC T/R RoHS: Compliant Min Qty: 473 Package Multiple: 1 Date Code: 0701 | Americas - 2500 |
|
$0.4921 / $0.7938 | Buy Now |
|
DISTI #
85978225
|
Verical | Decoder/Demultiplexer Dual 2-to-4 16-Pin SOIC T/R RoHS: Compliant Min Qty: 473 Package Multiple: 1 | Americas - 2500 |
|
$0.4921 / $0.7938 | Buy Now |
|
DISTI #
85976899
|
Verical | Decoder/Demultiplexer Dual 2-to-4 16-Pin SOIC T/R RoHS: Compliant Min Qty: 473 Package Multiple: 1 Date Code: 1301 | Americas - 1499 |
|
$0.4921 / $0.7938 | Buy Now |
|
DISTI #
595-CD74ACT139M96
|
Mouser Electronics | Encoders, Decoders, Multiplexers & Demultiplexers Dual 2-to-4 Line Dec oder/Demltplxr A 59 A 595-CD74ACT139M RoHS: Compliant | 1476 |
|
$0.5150 / $1.1000 | Buy Now |
|
|
Bristol Electronics | Decoder/Demultiplexer Dual 2-to-4 16-Pin SOIC T/R Min Qty: 1 | 1955 |
|
$0.2629 / $1.0110 | Buy Now |
|
|
Quest Components | ACT SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16 | 2268 |
|
$0.1800 / $0.4320 | Buy Now |
|
|
Quest Components | ACT SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16 | 1564 |
|
$0.2880 / $0.7200 | Buy Now |
|
|
Quest Components | ACT SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, PDSO16 | 1564 |
|
$0.3505 / $1.3480 | Buy Now |
|
|
Rochester Electronics | IC Decoder/Demultiplexer 2 Element 1 x 2:4 MUX/DEMUX 4.5V - 5.5V 16-SOIC T/R RoHS: Compliant Status: Active Min Qty: 1 | 6499 |
|
$0.3937 / $0.6350 | Buy Now |
US Tariff Estimator: CD74ACT139M96 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
CD74ACT139M96 CAD Models
-

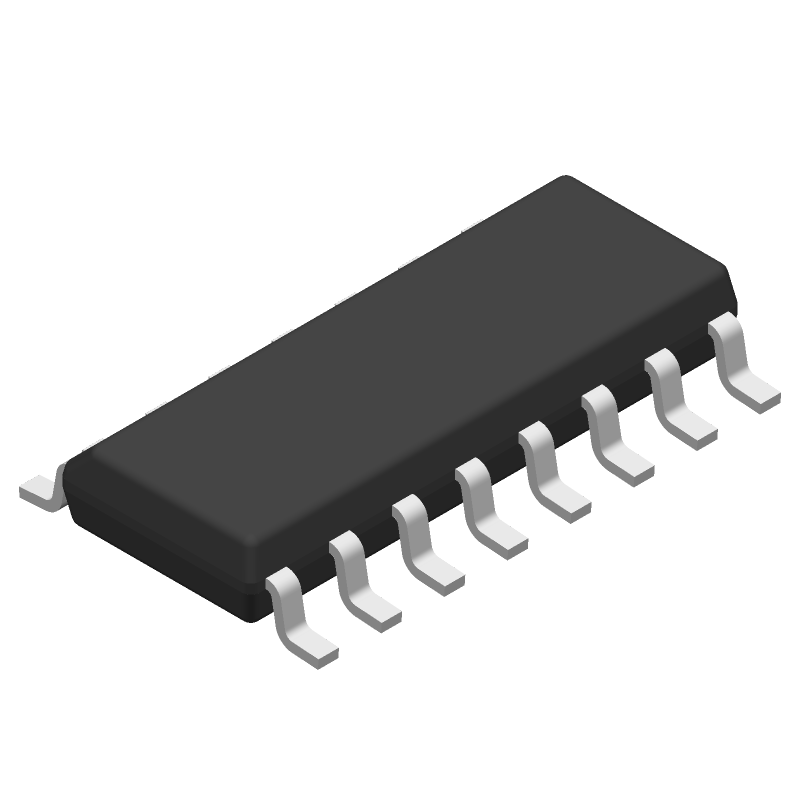

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
CD74ACT139M96 Part Data Attributes
|
|
CD74ACT139M96
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD74ACT139M96
Texas Instruments
2-LINE TO 4-LINE DECODER, ACT Series, Inverted Output, CMOS, PDSO16
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Soic-16 | |
| Pin Count | 16 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Additional Feature | 2 Enable Inputs | |
| Family | Act | |
| Input Conditioning | Standard | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 Mm | |
| Load Capacitance (CL) | 50 Pf | |
| Logic IC Type | 2-Line To 4-Line Decoder | |
| Max I(ol) | 0.024 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 4 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Polarity | Inverted | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.16 Ma | |
| Prop. Delay@Nom-Sup | 10.5 Ns | |
| Propagation Delay (tpd) | 11.5 Ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Military | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm |
