Part Details for CMP04FSZ by Analog Devices Inc
Results Overview of CMP04FSZ by Analog Devices Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (2 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
CMP04FSZ Information
CMP04FSZ by Analog Devices Inc is a Comparator.
Comparators are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for CMP04FSZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK0550
|
Newark | Comparator, Nsoic-14, -40 To 85Deg C, Comparator Type:Low Power, Precision, No. Of Channels:4Channels, Response Time/Propogation Delay:1.3Μs, Supply Voltage Range:36V , ± 18V, Ic Case/Package:Nsoic, No. Of Pins:14Pins Rohs Compliant: Yes |Analog Devices CMP04FSZ RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 135 |
|
$13.5800 / $22.7800 | Buy Now |
|
DISTI #
CMP04FSZ-ND
|
DigiKey | IC COMPARATOR 4 GEN PUR 14SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
158 In Stock |
|
$14.3505 / $21.9500 | Buy Now |
|
DISTI #
584-CMP04FSZ
|
Mouser Electronics | Analog Comparators CMP04FS RoHS: Compliant | 0 |
|
$13.0600 / $22.1200 | Order Now |
|
|
Analog Devices Inc | CMP04FS Package Multiple: 56 | 2384 |
|
$9.1100 / $22.1200 | Buy Now |
|
|
Onlinecomponents.com | Comparator General Purpose CMOS, DTL, ECL, MOS, Open-Collector, TTL 14-SOIC RoHS: Compliant |
1 In Stock |
|
$7.7200 / $35.8300 | Buy Now |
|
DISTI #
25018964
|
Verical | Comparator Quad ±18V/36V 14-Pin SOIC N Tube RoHS: Compliant Min Qty: 56 Package Multiple: 56 | Americas - 2352 |
|
$12.9252 | Buy Now |
|
|
Bristol Electronics | 78 |
|
RFQ | ||
|
DISTI #
25018964
|
Verical | Comparator Quad ±18V/36V 14-Pin SOIC N Tube RoHS: Compliant Min Qty: 56 Package Multiple: 56 | Americas - 2352 |
|
$12.9252 | Buy Now |
|
DISTI #
CMP04FSZ
|
Richardson RFPD | LINEAR ICS, OTHER RoHS: Compliant Min Qty: 1 | 6 |
|
$14.6100 / $15.6800 | Buy Now |
|
DISTI #
25018964
|
Verical | Comparator Quad ±18V/36V 14-Pin SOIC N Tube RoHS: Compliant Min Qty: 56 Package Multiple: 56 | Americas - 2352 |
|
$12.9252 | Buy Now |
US Tariff Estimator: CMP04FSZ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for CMP04FSZ
CMP04FSZ CAD Models
-

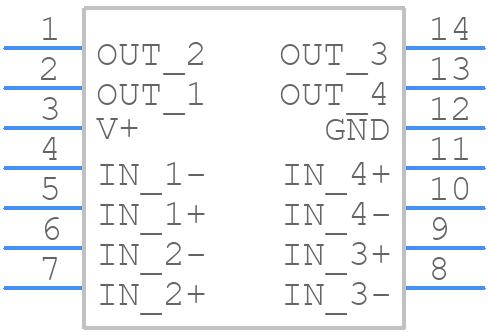

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
CMP04FSZ Part Data Attributes
|
|
CMP04FSZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
CMP04FSZ
Analog Devices Inc
Comparator, 4 Func, 2000uV Offset-Max, 1300ns Response Time, BIPolar, PDSO14
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Part Package Code | SOIC | |
| Package Description | Soic-14 | |
| Pin Count | 14 | |
| Manufacturer Package Code | R-14 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Amplifier Type | Comparator | |
| Average Bias Current-Max (IIB) | 0.2 µA | |
| Bias Current-Max (IIB) @25C | 0.1 µA | |
| Input Offset Voltage-Max | 2000 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e3 | |
| Length | 8.65 Mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | ||
| Neg Supply Voltage-Nom (Vsup) | ||
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Type | Open-Collector | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Response Time-Nom | 1300 Ns | |
| Seated Height-Max | 1.75 Mm | |
| Supply Current-Max | 3 Ma | |
| Supply Voltage Limit-Max | 36 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Bipolar | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Width | 3.9 Mm |
Alternate Parts for CMP04FSZ
This table gives cross-reference parts and alternative options found for CMP04FSZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CMP04FSZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM2901AVQPWRQ1 | Texas Instruments | $0.7046 | Comparator, 4 Func, 2000uV Offset-Max, 1300ns Response Time, BIPolar, PDSO14 | CMP04FSZ vs LM2901AVQPWRQ1 |
| LM339APWRG4 | Texas Instruments | Check for Price | Comparator, 4 Func, 3000uV Offset-Max, 1300ns Response Time, BIPolar, PDSO14 | CMP04FSZ vs LM339APWRG4 |
CMP04FSZ Frequently Asked Questions (FAQ)
-
A good PCB layout for the CMP04FSZ involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing noise coupling. A 4-layer PCB with a dedicated ground plane is recommended.
-
To ensure proper biasing, connect the VCC pin to a stable voltage source (e.g., 5V) and decouple it with a 0.1uF capacitor to ground. Also, ensure the input common-mode voltage is within the recommended range (0.5V to 4.5V).
-
The maximum allowable input voltage for the CMP04FSZ is 5.5V. Exceeding this voltage may damage the device.
-
To protect the CMP04FSZ from electrostatic discharge (ESD), use ESD protection devices (e.g., TVS diodes) on the input lines and ensure proper PCB layout and handling practices.
-
The recommended operating temperature range for the CMP04FSZ is -40°C to 125°C. Operating outside this range may affect device performance and reliability.
