CS5490-ISZR Information
CS5490-ISZR by Cirrus Logic is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for CS5490-ISZR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
598-2499-2-ND
|
DigiKey | IC ENERGY METER 2-CH 16SOIC Min Qty: 3000 Lead time: 18 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$2.3812 | Buy Now |
|
DISTI #
CS5490-ISZR
|
Avnet Americas | Analog Front End IC, 2 Channels, 24 bit, Serial, UART, 3 V to 3.6 V, 16 Pins, NSOIC - Tape and Reel (Alt: CS5490-ISZR) COO: Taiwan (Province of China) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 18 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$2.2892 / $2.5143 | Buy Now |
|
DISTI #
777-CS5490-ISZR
|
Mouser Electronics | Analog Front End - AFE 2Ch Energy Mgt AFE RoHS: Compliant | 5843 |
|
$2.3600 / $5.9100 | Buy Now |
|
DISTI #
CS5490-ISZR
|
Avnet Silica | Analog Front End IC 2 Channels 24 bit Serial UART 3 V to 36 V 16 Pins NSOIC (Alt: CS5490-ISZR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
US Tariff Estimator: CS5490-ISZR by Cirrus Logic
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for CS5490-ISZR
CS5490-ISZR CAD Models
-

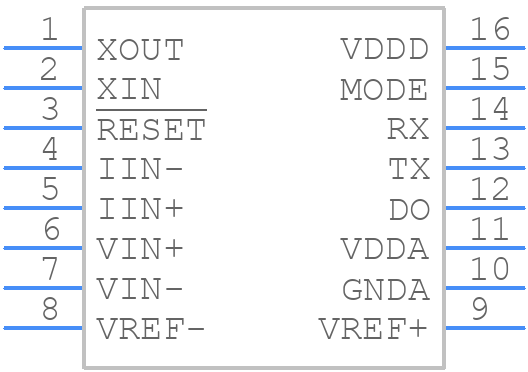

Part Symbol
-

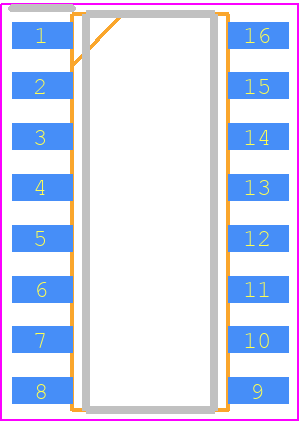

Footprint
-
