DF20G-10DP-1V(56) by: Hirose Electric Co Ltd

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, Receptacle, ROHS COMPLIANT

Part Details for DF20G-10DP-1V(56) by Hirose Electric Co Ltd

Overview of DF20G-10DP-1V(56) by Hirose Electric Co Ltd

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Healthcare Renewable Energy Robotics and Drones

Price & Stock for DF20G-10DP-1V(56)

Part # Distributor Description Stock Price Buy
DISTI # 68X2550
Newark Wire-To-Board Connector, Df20 Series, Surface Mount, Header, 10, 1 Mm, Gold Plated Contacts Rohs Compliant: Yes |Hirose(Hrs) DF20G-10DP-1V(56) Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1 $1.3800
  • 10 $1.2200
  • 25 $1.1300
  • 100 $1.0800
  • 250 $0.9710
  • 500 $0.8860
$0.8860 / $1.3800 Buy Now
DISTI # 686-0037-6-56
Avnet Abacus Conn Shrouded Header HDR 10 POS 1mm Solder ST SMD Embossed T/R (Alt: 686-0037-6-56) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Abacus - 0
Buy Now
DISTI # 2427913
element14 Asia-Pacific CONNECTOR, HEADER, 10POS, 2ROW, 1MM RoHS: Compliant Min Qty: 1000 Container: Reel 0
  • 1,000 $0.8349
  • 5,000 $0.7396
  • 10,000 $0.6503
  • 20,000 $0.5697
$0.5697 / $0.8349 Buy Now
DISTI # 2427622
element14 Asia-Pacific CONNECTOR, HEADER, 10POS, 2ROW, 1MM RoHS: Compliant Min Qty: 1 Container: Cut Tape 0
  • 1 $0.8495
  • 25 $0.7470
  • 75 $0.6628
  • 200 $0.5800
  • 500 $0.5156
$0.5156 / $0.8495 Buy Now
DISTI # 2427622
Farnell CONNECTOR, HEADER, 10POS, 2ROW, 1MM RoHS: Compliant Min Qty: 1 Lead time: 15 Weeks, 1 Days Container: Cut Tape 0
  • 1 $1.2976
  • 25 $1.1254
  • 75 $0.9944
  • 200 $0.9009
  • 500 $0.8285
$0.8285 / $1.2976 Buy Now
DISTI # 2427913
Farnell CONNECTOR, HEADER, 10POS, 2ROW, 1MM RoHS: Compliant Min Qty: 1000 Lead time: 13 Weeks, 1 Days Container: Reel 0
  • 1,000 $0.8123
  • 5,000 $0.7736
  • 10,000 $0.7586
  • 20,000 $0.7424
$0.7424 / $0.8123 Buy Now
Perfect Parts Corporation   25908
RFQ

Part Details for DF20G-10DP-1V(56)

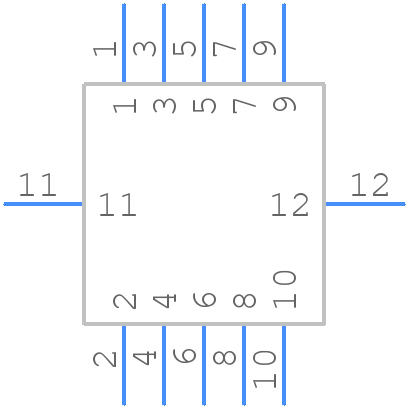

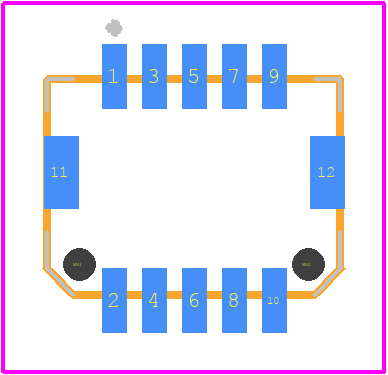

DF20G-10DP-1V(56) CAD Models

DF20G-10DP-1V(56) Part Data Attributes

DF20G-10DP-1V(56) Hirose Electric Co Ltd
Buy Now Datasheet
Compare Parts:
DF20G-10DP-1V(56) Hirose Electric Co Ltd Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, Receptacle, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer HIROSE ELECTRIC CO LTD
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
Samacsys Manufacturer Hirose
Additional Feature LOW PROFILE
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination Gold (Au) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 30 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 300VAC V
Durability 50 Cycles
Filter Feature NO
IEC Conformance NO
Insertion Force-Max 1.946 N
Insulation Resistance 500000000 Ω
Insulator Color BEIGE
Insulator Material POLYAMIDE
JESD-609 Code e4
MIL Conformance NO
Mating Contact Pitch 0.039 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -35 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 5.588 mm
Polarization Key POLARIZED HOUSING
Reference Standard UL
Terminal Pitch 1 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 10
UL Flammability Code 94V-0

Alternate Parts for DF20G-10DP-1V(56)

This table gives cross-reference parts and alternative options found for DF20G-10DP-1V(56). The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DF20G-10DP-1V(56), but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Description Manufacturer Compare
DF20-10DP-1V(59) Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal Hirose Electric Co Ltd DF20G-10DP-1V(56) vs DF20-10DP-1V(59)
Part Number Description Manufacturer Compare
54102-S30-05LF Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE Amphenol FCi DF20G-10DP-1V(56) vs 54102-S30-05LF
146251-5 CONNECTOR, 10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER TE Connectivity DF20G-10DP-1V(56) vs 146251-5
146253-7 14 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER TE's AMP DF20G-10DP-1V(56) vs 146253-7
54102-S30-05LF Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE Amphenol Communications Solutions DF20G-10DP-1V(56) vs 54102-S30-05LF
89809-305 Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch, Blue Insulator, Amphenol Communications Solutions DF20G-10DP-1V(56) vs 89809-305
00-8380-010-000-040 CONNECTOR, HEADER CONNECTOR,PCB MNT,RECEPT,10 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,GRAY KYOCERA Crystal Device Corporation DF20G-10DP-1V(56) vs 00-8380-010-000-040
54102-T32-05LF Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE Amphenol FCi DF20G-10DP-1V(56) vs 54102-T32-05LF
1437045-2 20 CONTACT(S), MALE, TWO PART BOARD CONNECTOR, IDC TE Connectivity DF20G-10DP-1V(56) vs 1437045-2
N2510-6003-UG 10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER 3M Electronics DF20G-10DP-1V(56) vs N2510-6003-UG
9100-31-205-03 Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Solder Terminal Methode Electronics Inc DF20G-10DP-1V(56) vs 9100-31-205-03
