DM3AT-SF-PEJM5 by: Hirose Electric Co Ltd

PCB Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, Black Insulator, Receptacle,

Part Details for DM3AT-SF-PEJM5 by Hirose Electric Co Ltd

Results Overview of DM3AT-SF-PEJM5 by Hirose Electric Co Ltd

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

DM3AT-SF-PEJM5 Information

DM3AT-SF-PEJM5 by Hirose Electric Co Ltd is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for DM3AT-SF-PEJM5

Part # Distributor Description Stock Price Buy
DISTI # 68X2633
Newark Micro Sd Card Conn, Push-Push, 8Pos, Memory/Card Type:Microsd, Insert & Eject Mechanism:Push-Push, No. Of Contacts:8Contacts, Contact Material:Copper Alloy, Contact Plating:Gold Plated Contacts, Product Range:Dm3 Series Rohs Compliant: Yes |Hirose/hrs DM3AT-SF-PEJM5 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 7162
  • 1 $2.7100
  • 10 $2.3100
  • 50 $2.0300
  • 100 $1.8200
  • 250 $1.6500
  • 500 $1.5200
  • 1,000 $1.4100
  • 2,500 $1.3200
$1.3200 / $2.7100 Buy Now
DISTI # 66AK1040
Newark Microsd Card Connectors |Hirose/hrs DM3AT-SF-PEJM5 RoHS: Not Compliant Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $2.4800
  • 7,500 $2.2000
$2.2000 / $2.4800 Buy Now
DISTI # DM3AT-SF-PEJM5
Avnet Americas Conn Micro SD Card Header 8 POS 1.1mm Solder ST SMD - Tape and Reel (Alt: DM3AT-SF-PEJM5) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 12 Weeks, 0 Days Container: Reel 12000
  • 1,500 $1.4881
$1.4881 Buy Now
DISTI # HIRDM3AT-SF-PEJM5.P
Heilind Electronics CUT TAPE Americas - 557 in Stock
  • 1 $2.8600
  • 80 $2.3833
  • 180 $2.3065
  • 360 $2.2698
  • 710 $2.2344
$2.2344 / $2.8600 Buy Now
DISTI # HIRDM3AT-SF-PEJM5
Heilind Electronics MICRO SD CARD CONN,PUSH-PUSH Americas - 0 in Stock
4500 On Order
  • 1,500 $1.7188
  • 6,000 $1.6923
$1.6923 / $1.7188 Buy Now
Bristol Electronics   633
RFQ
DISTI # DM3AT-SF-PEJM5/C
TME Connector: for cards, microSD, push-push,top board mount, SMT Min Qty: 1 4213
  • 1 $2.1700
  • 50 $1.1600
  • 100 $1.1300
  • 125 $1.1200
  • 250 $1.0700
  • 750 $1.0000
  • 1,000 $0.9700
  • 1,500 $0.9400
$0.9400 / $2.1700 Buy Now
DISTI # HIRDM3AT-SF-PEJM5.P
Interstate Connecting Components CUT TAPE 130
  • 1 $2.8600
  • 80 $2.3833
  • 180 $2.3065
  • 360 $2.2698
  • 710 $2.2344
$2.2344 / $2.8600 Buy Now
NexGen Digital   2
RFQ
DISTI # 000000000003972228
Sager Memory Card Connectors R/A SMT MICROSD CON PUSH-PUSH TOP BRDMNT Min Qty: 1500 19500
  • 1,500 $1.3500
  • 3,000 $1.3300
  • 6,000 $1.3000
  • 12,000 $1.2700
$1.2700 / $1.3500 Buy Now
Chip 1 Exchange INSTOCK 1860
RFQ
Chip 1 Exchange INSTOCK 39
RFQ
DISTI # CL0609-0031-0-00
Avnet Abacus Conn Micro SD Card Header 8 POS 11mm Solder ST SMD (Alt: CL0609-0031-0-00) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 14 Weeks, 0 Days Abacus - 88500
Buy Now
New Advantage Corporation DM3 Series 8 Position Right Angle SMT Push Ejection MicroSD Card Connector RoHS: Compliant Min Qty: 1 Package Multiple: 1500 60000
  • 1,500 $2.4000
  • 60,000 $2.2200
$2.2200 / $2.4000 Buy Now
Win Source Electronics CONN MICRO SD CARD PUSH-PUSH R/A 96597
  • 60 $0.8671
  • 125 $0.8112
  • 195 $0.7832
  • 275 $0.7273
  • 360 $0.6993
  • 450 $0.6714
$0.6714 / $0.8671 Buy Now

Part Details for DM3AT-SF-PEJM5

DM3AT-SF-PEJM5 CAD Models

  • Part Symbol

    Part Symbol

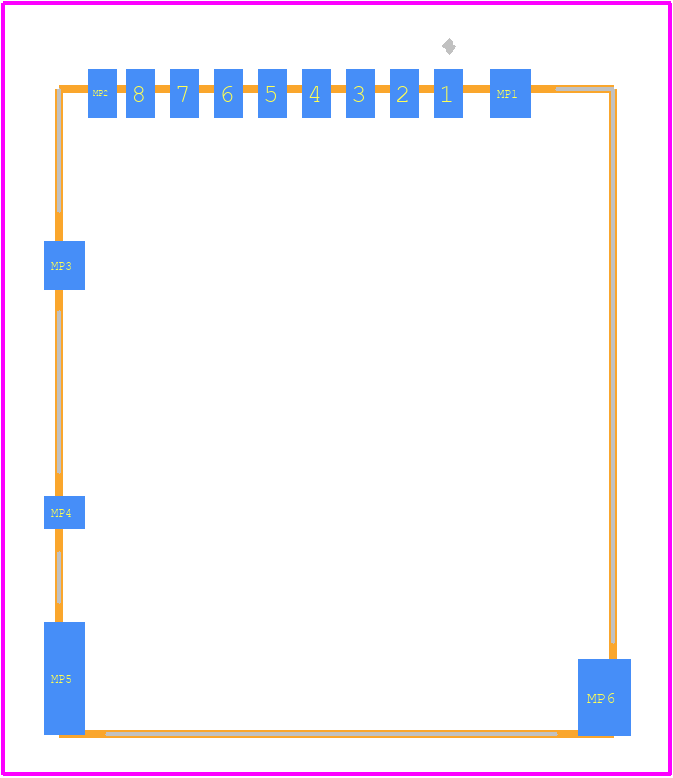

  • Footprint
