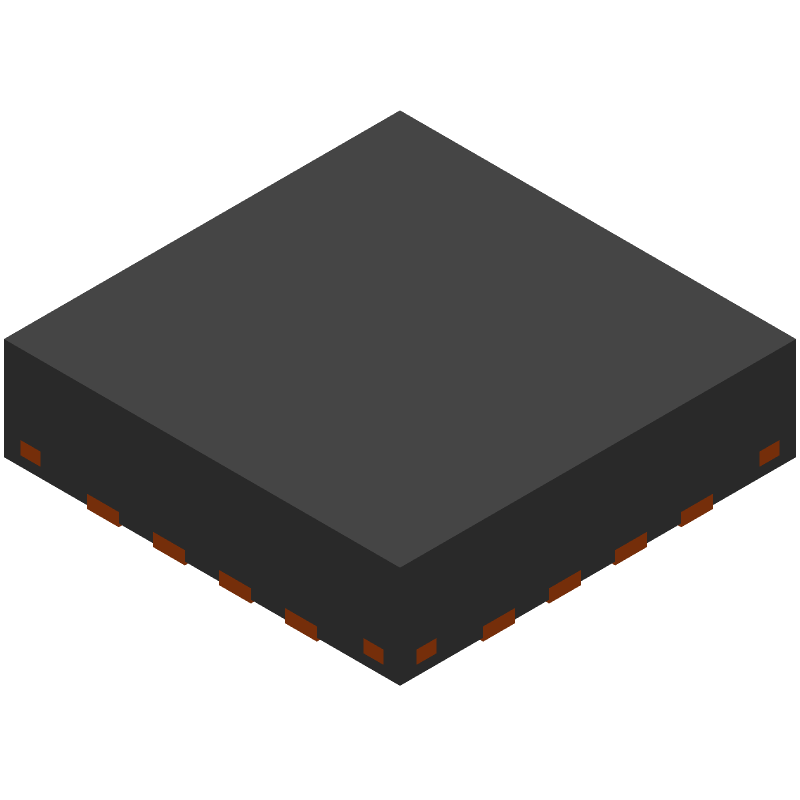

DRV8428PRTER Information
DRV8428PRTER by Texas Instruments is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
US Tariff Estimator: DRV8428PRTER by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
This table gives cross-reference parts and alternative options found for DRV8428PRTER. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DRV8428PRTER, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
The DRV8428PRTER can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
Use the DRV8428PRTER's built-in configuration registers to set the motor type, current sense gain, and other parameters according to your motor's specifications. Refer to the device's programming guide for more information.
Follow the recommended PCB layout guidelines in the datasheet, including keeping the high-current paths short and away from sensitive analog signals, using a solid ground plane, and adding decoupling capacitors near the device.
Use the device's built-in diagnostic features, such as the fault register and current sense outputs, to identify the source of the issue. Also, check the device's power supply, motor connections, and programming configuration for errors or inconsistencies.
No, the DRV8428PRTER is designed for use with brushless DC (BLDC) motors only. It does not support brushed DC motor control.
